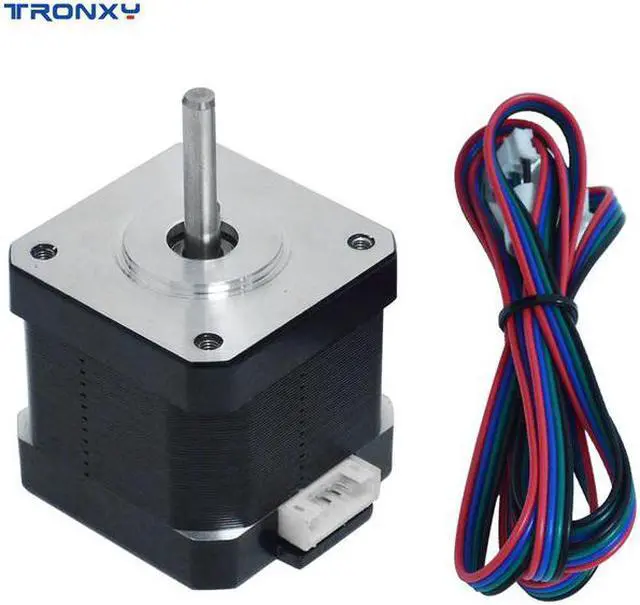

TRONXY 42 Stepper Motor High Torque Hybrid Stepping Motor 2 Phase 1.8 Degree Step Angle 1.68A 40Ncm 4-Lead with 1 Meter Cabl

Shop All Graviton Products | Visit Shengkedianzi Store

TRONXY 42 Stepper Motor High Torque Hybrid Stepping Motor 2 Phase 1.8 Degree Step Angle 1.68A 40Ncm 4-Lead with 1 Meter Cabl

TRONXY 42 Stepper Motor High Torque Hybrid Stepping Motor 2 Phase 1.8 Degree Step Angle 1.68A 40Ncm 4-Lead with 1 Meter Cabl

Overview

Specs

Reviews

Item Type:MOTOR
Origin:CN(Origin)
Model Number:Stepper Motor

Features:
Apply for 3D printer, machinery and equipment.
Lower noise, strong torque, stable property and high accuracy.
1.8°step angle, 40Ncm holding torque, 2.8V rated voltage, 1.68A rated current.
Made of metal, durable and wear resistant.
Specifications:
Color: Black
Quantity: 1pc/ 2pcs/ 5pcs(optional)
Phase: 2
Step Angle: 1.8° ± 5%
Rated Voltage: 2.8V
Current: 1.68A
Resistance: 1.5 ± 10%
Inductance: 2.8mH ± 20%
Holding Torque: 40N.cm
Insulation Resistance: 100M (DC 500V)
Ambient Temperature: -20-50

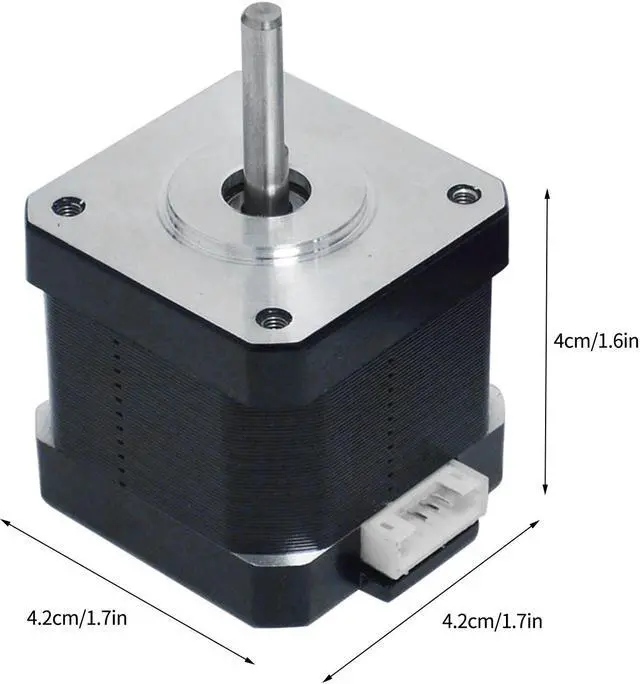

Item Size: 4.2 * 4.2 * 4cm/ 1.7 * 1.7 * 1.6in
Item Weight: 280g/ 9.9oz
Packing List:
1 * Stepper Motor
