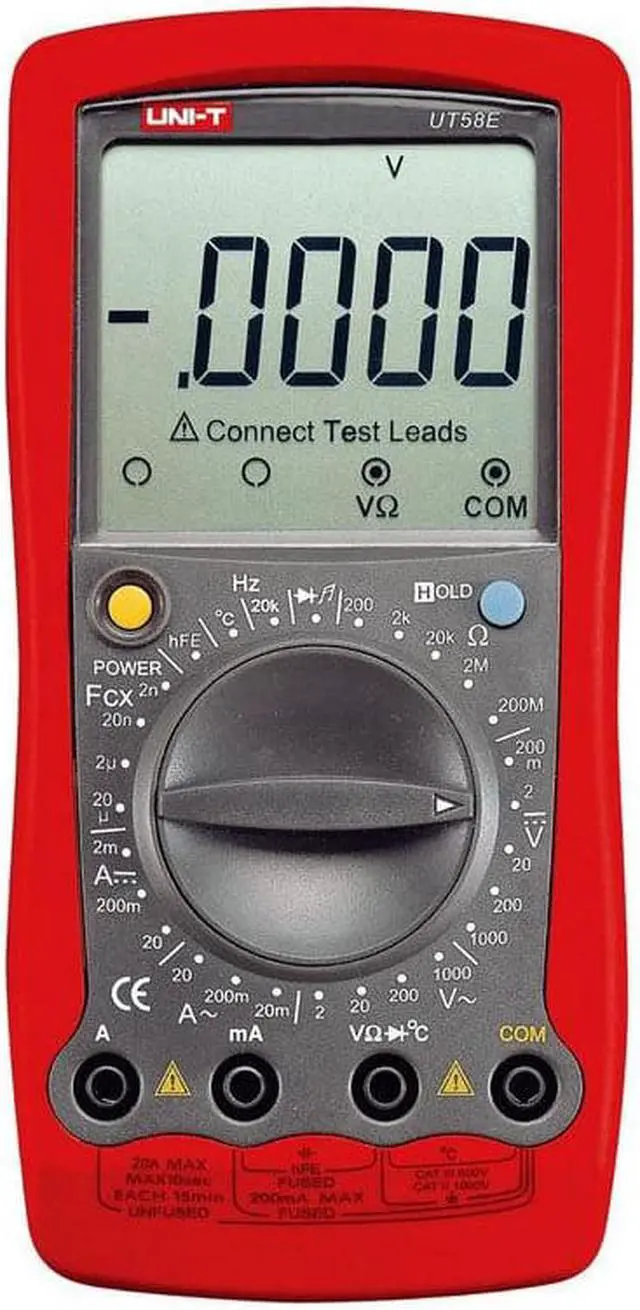

    UT58E - MULTIMETER DIGITAL 20A CAP/DIODE/HFE/TEMP/VOLT/CUR

    Be the first to review this product...
    • Specifications
    • Range
    • Best Accuracy
    • Model
    • 　
    • UT58E
    • DC Voltage (V)
    • 200mV/2V/20V/200V/1000V
    • ±(0.05%+3)
    • AC Voltage (V)
    • 2V/20V/200V/1000V
    • ±(0.5%+10)
    • DC Current (A)
    • 2mA/20mA/20A
    • ±(0.5%+5)
    • AC Current (A)
    • 20mA/200mA/20A
    • ±(0.8%+10)
    • Resistance (Ω)
    • 200Ω/2KΩ/20KΩ/2MΩ/200MΩ
    • ±(0.5%+10)
    • Capacitance (F)
    • 2nF/20nF/2μF/20μF
    • ±(3%+4)
    • Frequency (Hz)
    • 20KHz
    • ±(1....
    +
    +
    Overview
    Specs
    Reviews
    • Specifications
    • Range
    • Best Accuracy
    • Model
    • UT58E
    • DC Voltage (V)
    • 200mV/2V/20V/200V/1000V
    • ±(0.05%+3)
    • AC Voltage (V)
    • 2V/20V/200V/1000V
    • ±(0.5%+10)
    • DC Current (A)
    • 2mA/20mA/20A
    • ±(0.5%+5)
    • AC Current (A)
    • 20mA/200mA/20A
    • ±(0.8%+10)
    • Resistance ()
    • 200/2K/20K/2M/200M
    • ±(0.5%+10)
    • Capacitance (F)
    • 2nF/20nF/2F/20F
    • ±(3%+4)
    • Frequency (Hz)
    • 20KHz
    • ±(1.5%+5)
    • Temperature (°C)
    • 40 °C 1000°C
    • ±(1%+30)
    • Features
    • Display Count
    • 2000
    • Manual Range
    • Diode
    • Transistor
    • Auto Power Off
    • Continuity Buzzer
    • Data Hold
    • Low Battery Indication
    • Full Icon Display
    • Input Impedance for DCV
    • Around 10M
    • Test Lead Connection Indications
    • General Characteristic
    • Power
    • 9V Battery6F22)
    • LCD Size
    • 60mm×54mm
    • Product Color
    • Red and Grey
    • Product Net Weight
    • 350g Including holster)
    • Product Size
    • 179mm×88mm×39mm
    • Standard Accessories
    • Battery Test Lead Holster MuliPurpose Socket Point Contact Temperature Probe
    • Standard Individual Packing
    • Gift Box English Manual
    • Standard Quantity Per Carton
    • 40 PCs
    • Standard Carton Measurement
    • 598mm×418mm×340mm (0.085 CBM Per Standard Carton)
    • Standard Carton Gross Weight
    • 27 Kg
