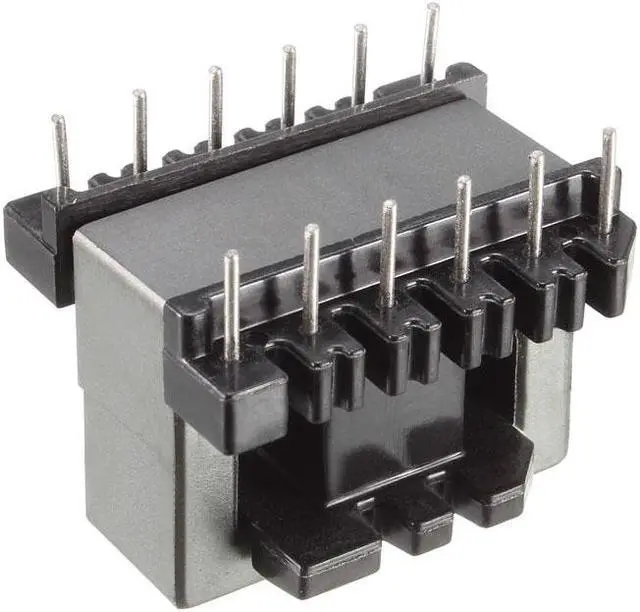

5 Sets EE28 6 with 6pin Transformer Bobbin PC40 Ferrite Core Vertical 10 Ferrite Halves and 5 Bobbin
- Product Name: EE28 Vertical Ferrite Core Transformer Bobbin 6+6 Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE28

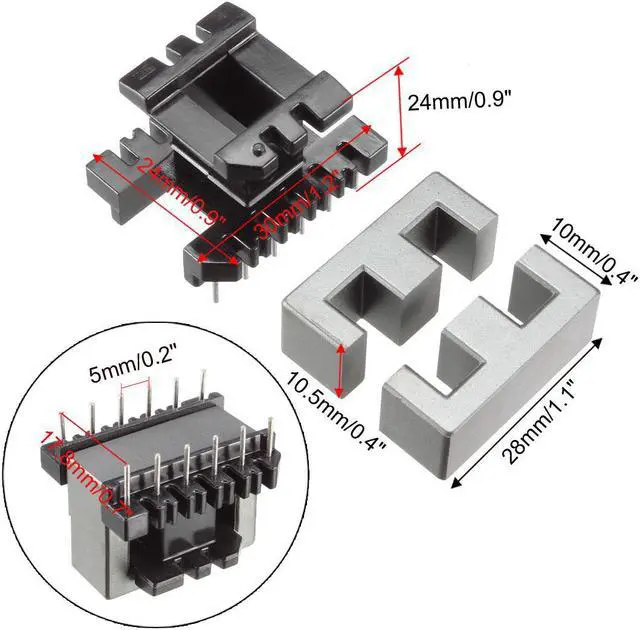

Pin spacing: 5mm/0.2''
Row spacing: 17.8mm/0.7"
Ferrite core Size: 28 x 10.5 x 10mm/1.1" x 0.4" x 0.4"(L*W*T)
Bobbin size: 30 x 24 x 24mm/1.2" x 0.9" x 0.9"(L*W*H)
Winding frame size: 10 x 10 x 13.5mm/0.4" x 0.4" x 0.5"(L*W*H)

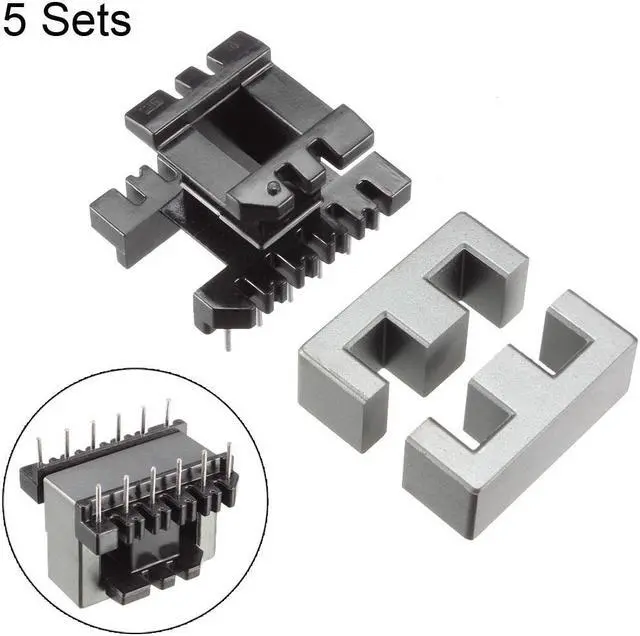

Package content: 5 SET =10 ferrite halves + 5 bobbin
