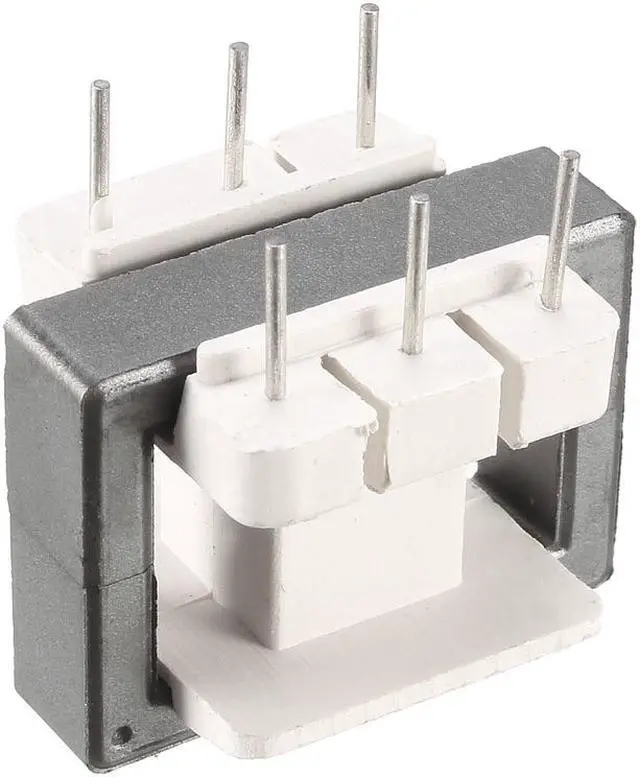

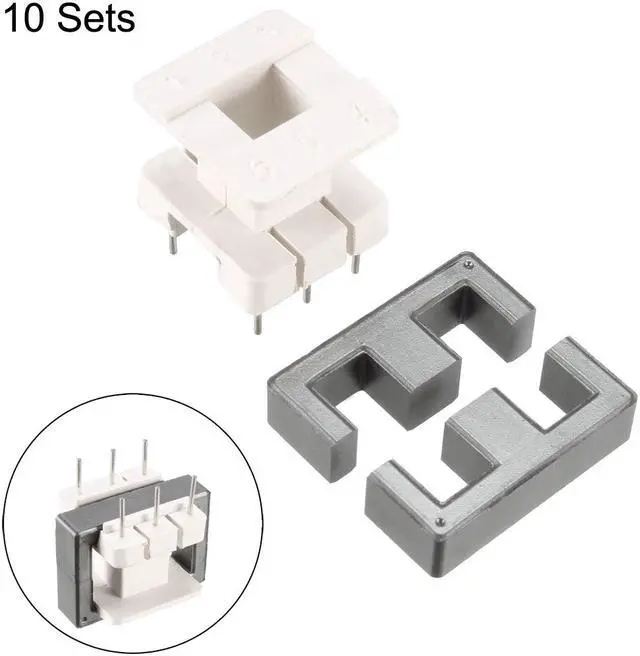

10 Sets EE25 3 with 3pin Transformer Bobbin PC40 Ferrite Core Vertical 20 Ferrite Halves and 10 Bobbin
- Product Name: EE25 Vertical Ferrite Core Transformer Bobbin 3+3 Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

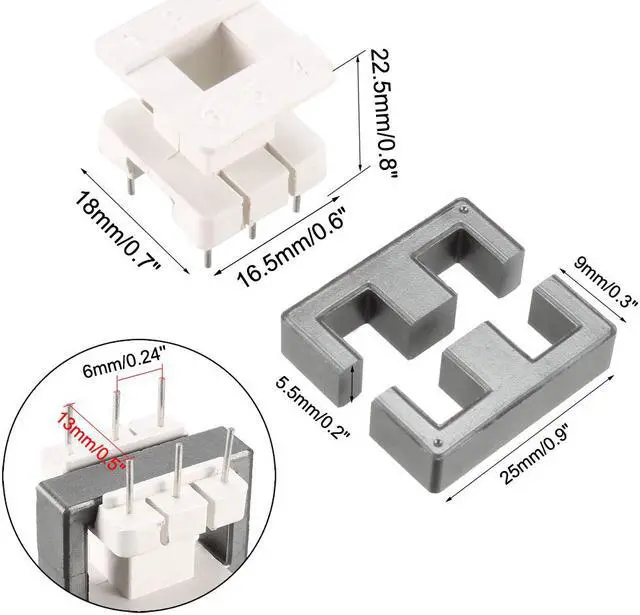

Type: EE25
Pin spacing: 6mm/0.24''
Row spacing: 13mm/0.5"
Ferrite core size: 25 x 5.5 x 9mm/0.9" x 0.2" x 0.3"(L*W*T)
Bobbin size: 16.5 x 18 x 22.5mm/0.6" x 0.7" x 0.8"(L*W*H)
Winding frame size: 9 x 8.5 x 8.5mm/0.4" x 0.3" x 0.3(L*W*H)

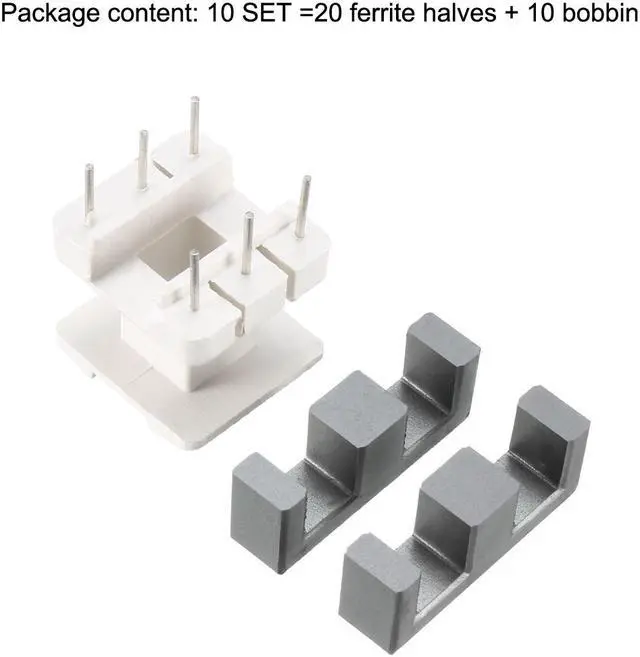

Package content: 10 SET =20 ferrite halves + 10 bobbin
