Product Description

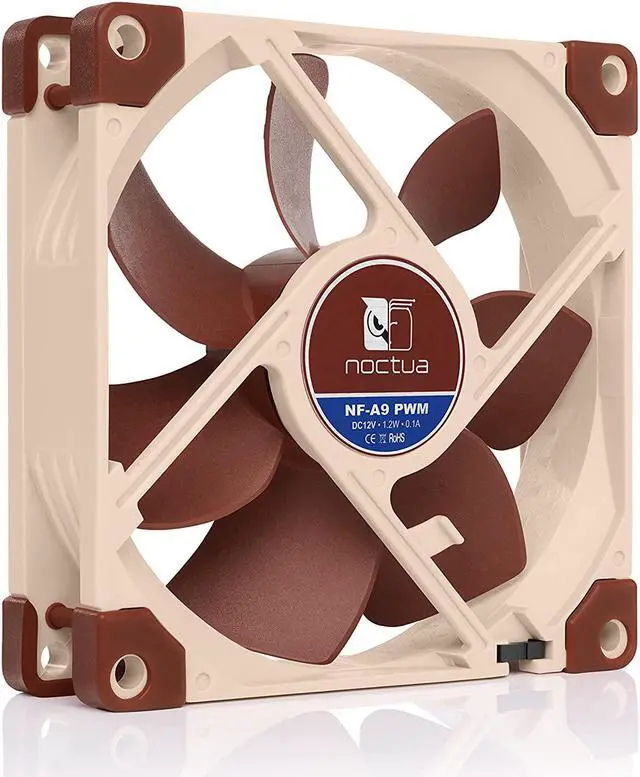

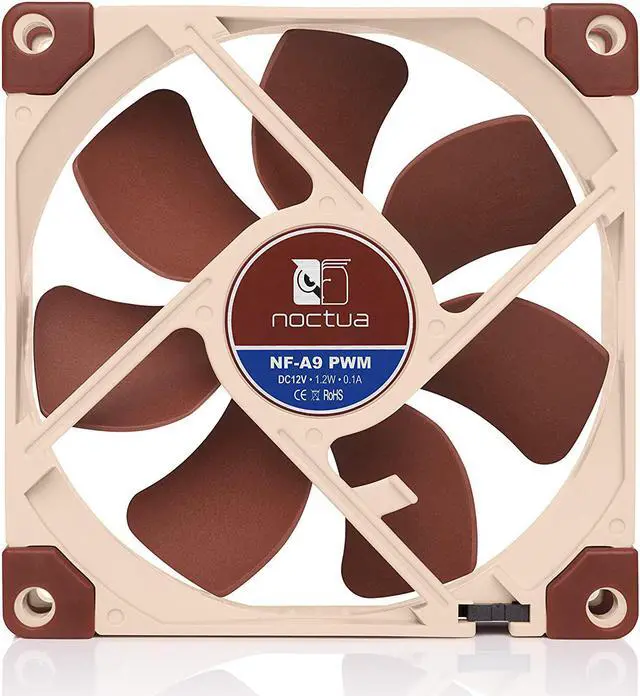

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2000 to 1550rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

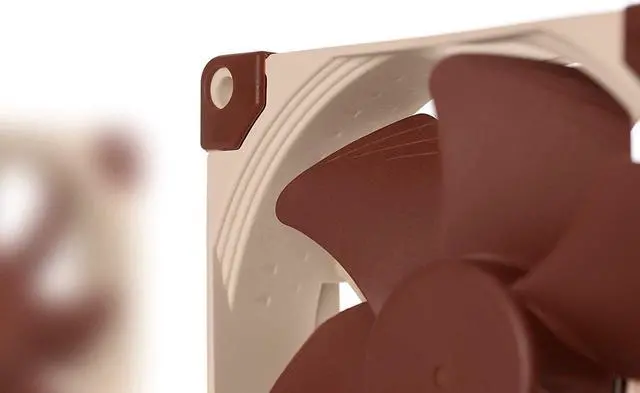

AAO frame Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.Read more
Flow Acceleration Channels The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 bearing
The NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated anti-vibration pads Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

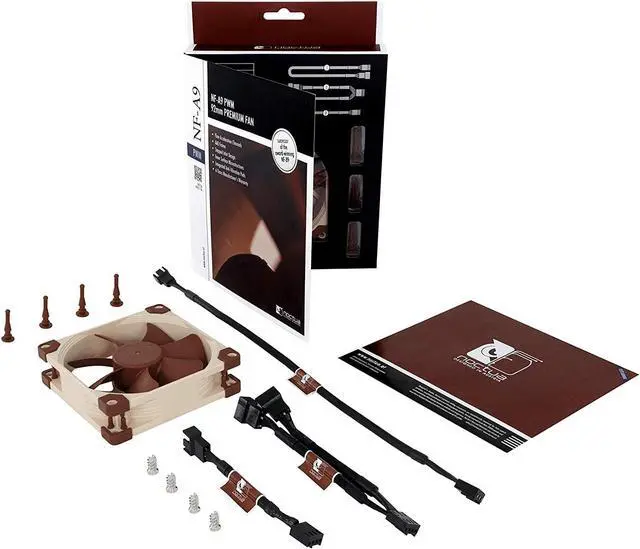

Scope of delivery Low-Noise Adaptor (L.N.A.)4-Pin Y-Cable30cm Extension Cable4 Vibration-Compensators4 Fan ScrewsRead more
Succeeding the NF-B9 Noctua's NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.Read moreNF-A9 PWMNF-A9 FLXNF-A9 5V PWMNF-A9 5VNF-A9 PWM chromax.black.swapConnector4-pin PWM3-pin4-pin PWM3-pin4-pin PWMVoltage12V12V5V5V12VRPMMax: 2000 / Min: 4001600Max: 2000 / Min: 4002000Max: 2000 / Min: 400RPM with L.N.A.15501250---RPM with U.L.N.A.-1050---Acoustical Noise22,8 dB(A)17,1 dB(A)22,8 dB(A)22,8 dB(A)22,8 dB(A)Acoustical Noise with L.N.A.16,3 dB(A)11,6 dB(A)---Acoustical Noise with U.L.N.A.-8,4 dB(A)---Size92x92x25 mm92x92x25 mm92x92x25 mm92x92x25 mm92x92x25 mmColourBrown & BeigeBrown & BeigeBrown & BeigeBrown & BeigeBlack with swappable coloured anti-vibration pads
