IR Infrared Emitter Extension Cable 9.8ft Long 45 Degree Emission Angle 3.5mm Jack Single Red Head 2pcs

Description:

1.The emission angle is +/- 45°. Resistant to ambient light effects.

2.Low current drive, low power consumption, long launch distance, small size installed.

3.Applied to infrared forwarding equipment, audio and video equipment, IR remote transceiver, centralized control equipment, etc.

KEY_TAB

Instructions for use:KEY_TAB

1. Insert the product plug into the interface of the infrared forwarding device. Generally, the interface has an interface similar to the transmitting signal such as IR OUT, IR EMITTER.

2. Paste the infrared emitter head at the appropriate position on the panel of the controlled device. The correct position will affect the remote control sensitivity. Generally, look for the dark red translucent panel of the controlled device. Some devices will indicate the R, IR and other characters. You can also use the flashlight to illuminate the panel to see if there are any components in the red box. This component is Infrared receiver tube.

KEY_TAB

Note: Please note that the infrared emitter head is glued to the side of the infrared receiver tube, do not cover it, otherwise the device will not be used, and it will be insensitive to remote control by remote control.

KEY_TAB

Specification:

Product Name:Infrared Emitter Cable

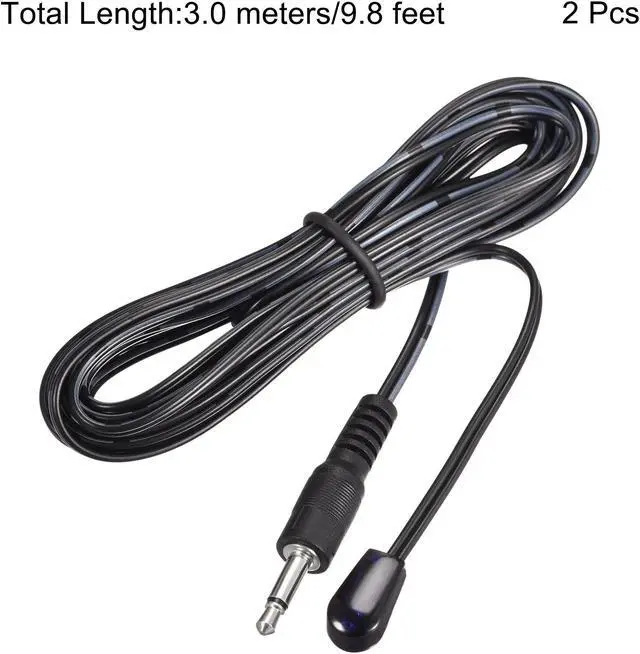

Total Length:3.0 meters/9.8 feet

Jack:3.5mm

Emission Angle: +/- 45°

Main Color:Black

Material:Plastic,Metal

HeadKEY_TAB Size:15 x 9 x 6mm / 0.59 x 0.35 x 0.24inch (L*W*H)

KEY_TAB

Package Content:KEY_TAB

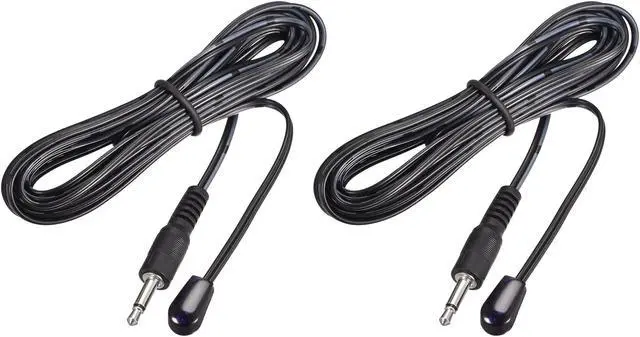

2 x IR Emitter Cables
