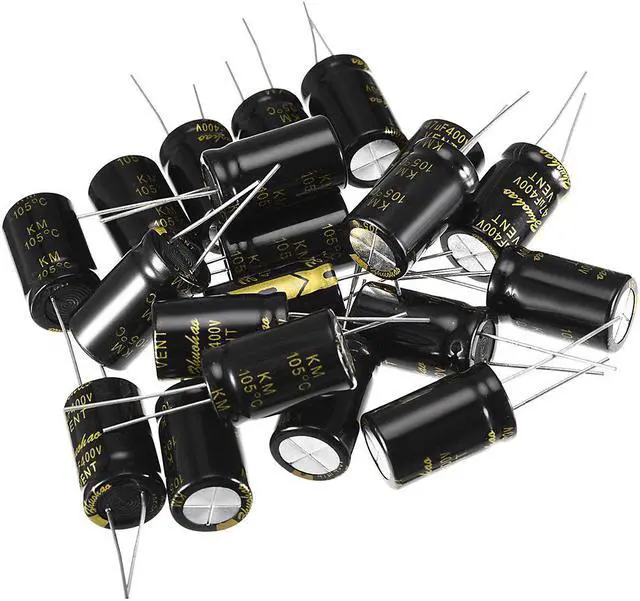

Aluminum Radial Electrolytic Capacitor 47uF 400V Life 16 x 26 mm Black 20pcs
- Rated Voltage: 400V ; Capacitance: 47uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 2000hrs
- Body Size: 16 x 26mm/0.63" x 1.02"(D*L); Lead Length:
+
+
Overview
Specs
Reviews
Features:
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.Capacitance: Don't change the capacitance.
2.Voltage: You can go higher, but don't go lower.
3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name : Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
Rated Voltage: 400V ;
Capacitance: 47uF;
Capacitance Tolerance: ±20%(120Hz,+20 Celsius);
Standard Load Life: 2000hrs
Body Size: 16 x 26mm/0.63" x 1.02"(D*L);
Lead Length: 30mm/1.18", 25mm/0.98";
Lead Pitch : 7.5mm/0.3"
