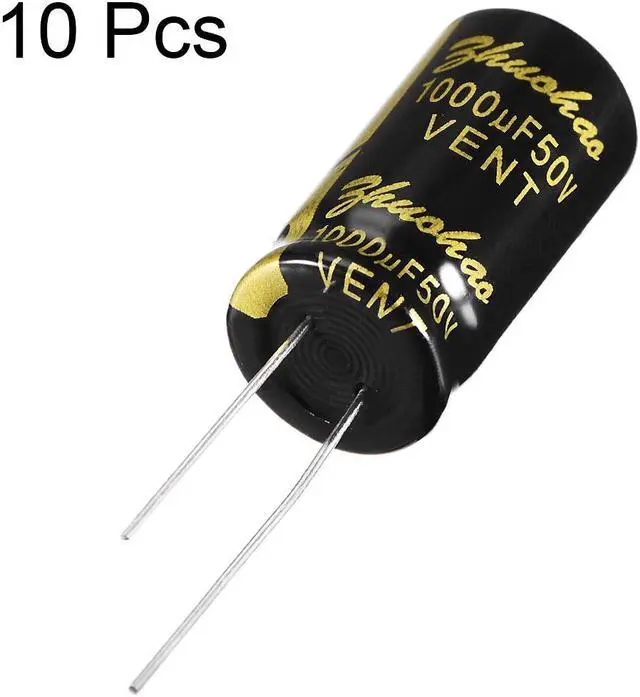

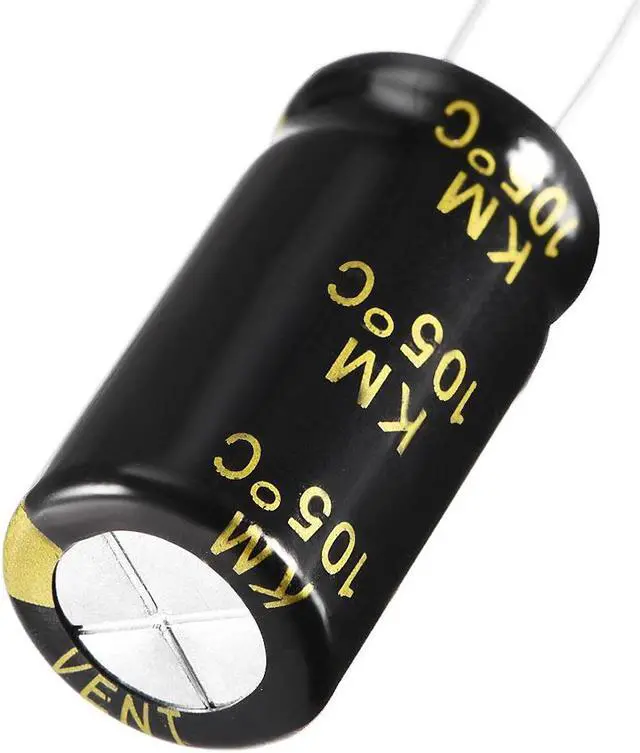

Aluminum Radial Electrolytic Capacitor 1000uF 50V Life 13 x 25 mm Black 10pcs
- Rated Voltage: 50V ; Capacitance: 1000uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Max Ripple Current at 105 Celsius 120Hz: 1287mA; Standard Load Life: 2000hrs
- Body
+
+
Overview
Specs
Reviews
Features:
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 50V;
Capacitance: 1000uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 1287mA;
Standard Load Life: 2000hrs

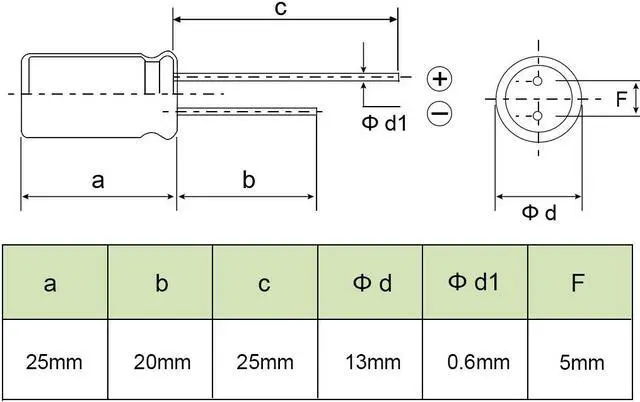

Body Size: 13 x 25mm/ 0.51" x 0.98" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 5mm/ 0.2"
Lead Diameter: 0.6 mm
Size: 10pcs 1000UF 50V 13x25mm
Package Content: 10 x Electrolytic Capacitors
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 50V;
Capacitance: 1000uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 1287mA;
Standard Load Life: 2000hrs
Body Size: 13 x 25mm/ 0.51" x 0.98" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 5mm/ 0.2"
Lead Diameter: 0.6 mm
Size: 10pcs 1000UF 50V 13x25mm
Package Content: 10 x Electrolytic Capacitors
