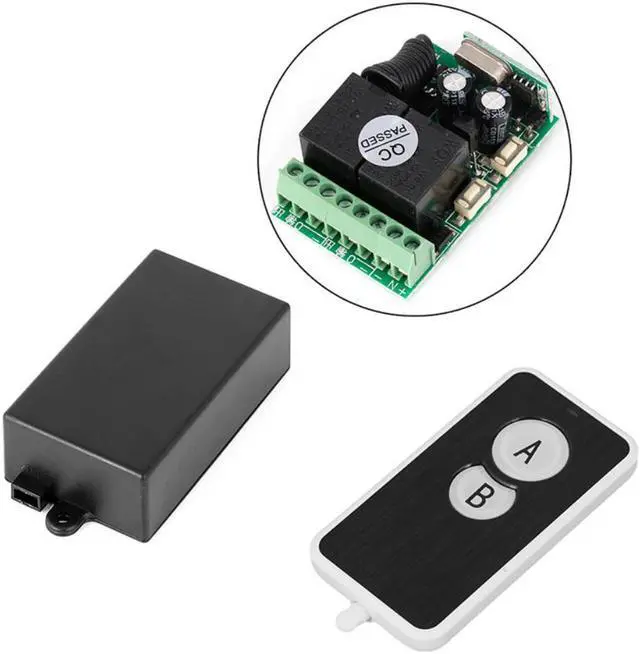

DC 12V 2 CH Signal Wireless RF Remote Control Receiver Relay Switch 433mhz

Use:TV
Certification:NONE
Origin:CN(Origin)
Wireless Communication:RF
Support APP:No
Package:Yes
Model Number:910557416

100% and
Material: Plastic and Metal
Color: See pictures
2 CH DC12V 10A independent wireless controller
Applicable for controlling family, office, shopping malls, hotels, hospital, warehouses and other places of fluorescent lamps, energy-saving lamps,  incandescent lamp, halogen lamp, and the electric water heater through a power on-off control of household appliances. it can learn 2262 or 1527 chip with the different code wireless remote control
Learning :
1. Press the learning button A until the indicator flash ,loosen your finger
2. Press button A of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully (Learning button B also the same )
Pemove/clean :
Press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .
Features :
2 CH Wireless Receiver Relay
Work Voltage: DC12V
Work Load: 10A
Work Frequency: 433MHz
Receiver Sensitivity: -108dBm
Wock Temperature: -20~+70-4~158
Output: switching signal / voltage output
The code way: Learning
Quiescent Current: 8mA
Output working way
1.Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
2.Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.
3.Interlock: press the one button, the reply turns on, press the next button, the reply turns off.
4.Two-way independent Output
2 CH Wireless Relay Switch
1.Input Voltage: DC10-14V
2.Standby Current: 5MA
3.RF Frequency: 315MHZ
4.RF Working mode:Super heterodyne receiver
5.Receiver Sensitivity: >90dBm
6.Remote Control Distance: >100 meter(In open environment)
7.Decoding Way: MCU Software decoding
8.Can store the number of remote control:50
9.Support remote control type: Fixed code, learning code
10.Channel: 2CH
11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
12.Wiring Method:Fixed wiring terminal
13.Working Voltage: DC12V
14.Output Current: 10A
15.Output:Normally open,Common,Normally closed
Working/output way:
1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay
Size: 6.5*3.7*2.2cm/2.56"*1.46"*0.87"(L*W*H); 6*3.2*1cm/2.36"*1.26"*0.39"(L*W*H)
Quantity: 1Pc
No retail package
Note: Due to the difference between different monitors, the picture may not reflect  the actual color of
