AC 110V 220V 230V Digital LED Cycle Delay turn ON/OFF Switch Timer Relay Module 8 modes

Certification:NONE
Origin:CN(Origin)
Theory:Time Relay
is_customized:No
Contact Load:High Power
Voltage:220V
Protect Feature:Other
Power Source:AC
Usage:General Purpose
Relay:10A
Working voltage:Infinite Cycle Moule
Country/Region of Manufacture:China
Type:Delay Switch module
Model:AC Infinite Cycle Moule

Tips:
If you need Large quantity, please contact us, we can wholesales.

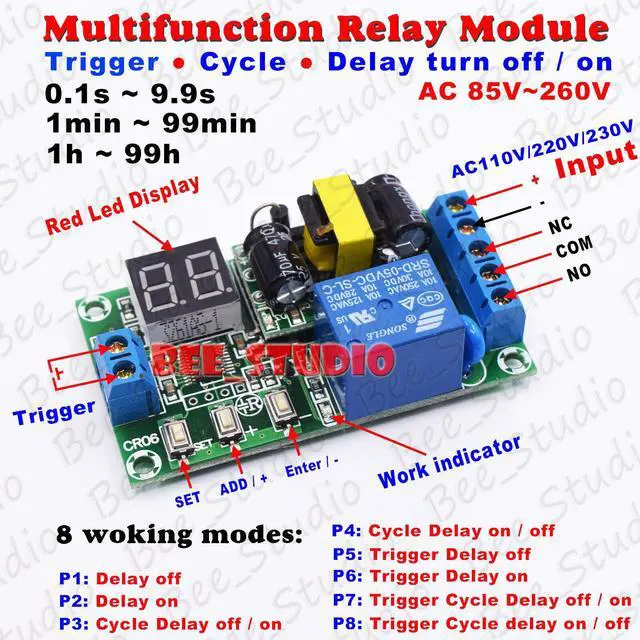

Function introduction:
Time delay range: T1 and T2 between 0.1 seconds to 99 hours adjustable.
P1(delay turn off): when power on, the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function.
P2(delay turn on): when power on, the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function.
P3(Timing cycle on-off): when power on, the relay on, delay T1, and the relay off, delay T2, the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop.
P4(Timing cycle off-on): when power on, the relay disconnected, delay T1, and the relay on, delay T2, the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop.
P5(trigger delay turn off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function.
P6(trigger delay turn on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function.
P7(trigger cycle on-off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off, delay T2, and the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop.
P8(trigger circle off-on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on, delay T2, and the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop
Product parameters:
1. working voltage: AC 85v-260V

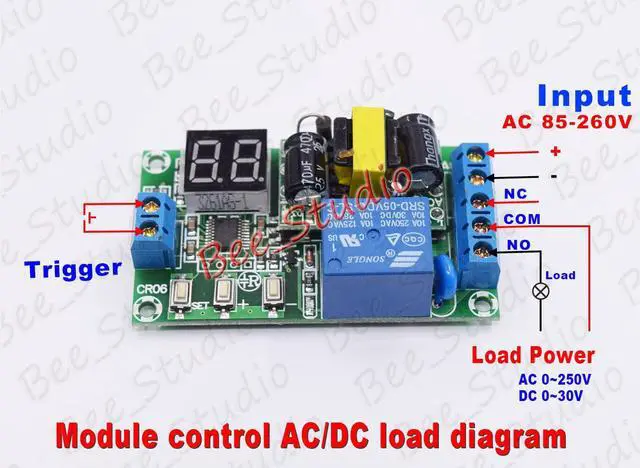

2. Load Power: DC 0~30V 10A / AC 0~250V 10A.
3. Static current: 15mA
4. Working current: 30mA
5. Service life: 100 thousand times;
6. Working temperature: -40~85;

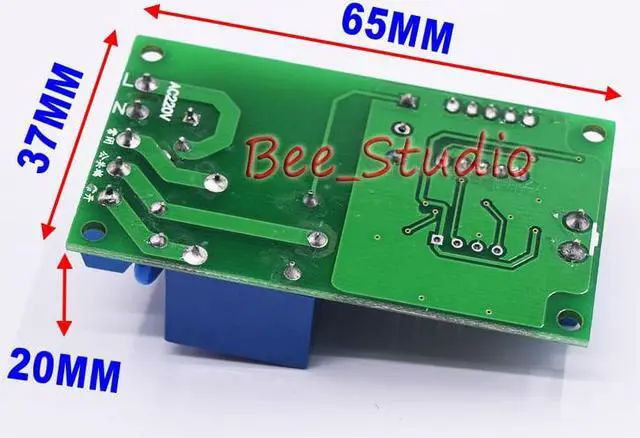

7. Size: 65mm*37mm*20mm
Use operation instructions
:
Step 1: power on.
Step 2: long press the SET key to enter the function to choose, display P1-P8, short press SET key, switch between function P1 to function P8.
Step 3: press the ADD key to select the T1 time unit, the display value (-0/-1/-2/-3), set the T1 time unit, then press the ADD key time unit to switch between -0/-1/-2/-3.
Time unit: -0:time range 0.1s to 9.9s.(time accuracy:0.1s)
Time unit: -1: 1s to 99s.(time accuracy:1s)
Time unit: -2: 1min to 99min.(time accuracy:1min)
Time unit: -3: 1h to 99h.(time accuracy:1h)
Step 4: press the SET key to set T1 time, display T1, then press ADD/Enter key to add and subtract time, display value (00).
If it is a function of P1, P2, P5 and P6, press SET key to confirm the save, set the end.
If it is a function of P3, P4, P7 and P8, to enter the step 5.
Step 5: press the SET key to select the T2 time unit, the display value (-0/-1/-2/-3), set the T2 time unit, then press the ADD key time unit to switch between -0/-1/-2/-3.
Time unit: -0:time range 0.1s to 9.9s.(time accuracy:0.1s)
Time unit: -1: 1s to 99s.(time accuracy:1s)
Time unit: -2: 1min to 99min.(time accuracy:1min)
Time unit: -3: 1h to 99h.(time accuracy:1h)
Step 6: press the SET key to set T2 time, display T2, then press ADD/Enter key to add and subtract time, display value (00).
Step 7: press the SET key to set the cycle times, display "C-", then press the ADD/Enter button to add and subtract the times of cycles, display value (00), if set to 0 is infinite loop.
Step 8: press the SET key to confirm the preservation
Package Include:
Relay module x 1pc
