Transmission Rate:2500Mbps
Certification:NONE
Origin:CN(Origin)
Kind:Internal
Type:Wired
Lan Transmission Rate:1000M Ethernet
Application:Desktop
Wireless Protocol:802.11a/g
Length:Other
Adapter Socket:RJ45
Interface Type:Mini PCI-Express
Wi-Fi Supported Frequency:Other
Transmission Speed:1200 Mbps
Package:Yes
Applicable Network Type:Gigabit Ethernet
Model Number:AC5037
Color:Green
Chipset:Intel I225 Chip
Port:m.2 to rj45
Products Status:Stock
Use:for desktop computers
Feature 1:network adapter
Feature 2:network card
Feature 3:internet
Feature 4:ethernet
Feature 5:internet
Feature 6:lan
Feature 7:rj45
Feature 8:m.2 network card
Feature 9:m2 network card
Feature 10:lan card
Feature 11:gigabit ethernet
Feature 12:lan adapter
Feature 13:internet adapter
Feature 14:network adapters
Feature 15:gigabit network card

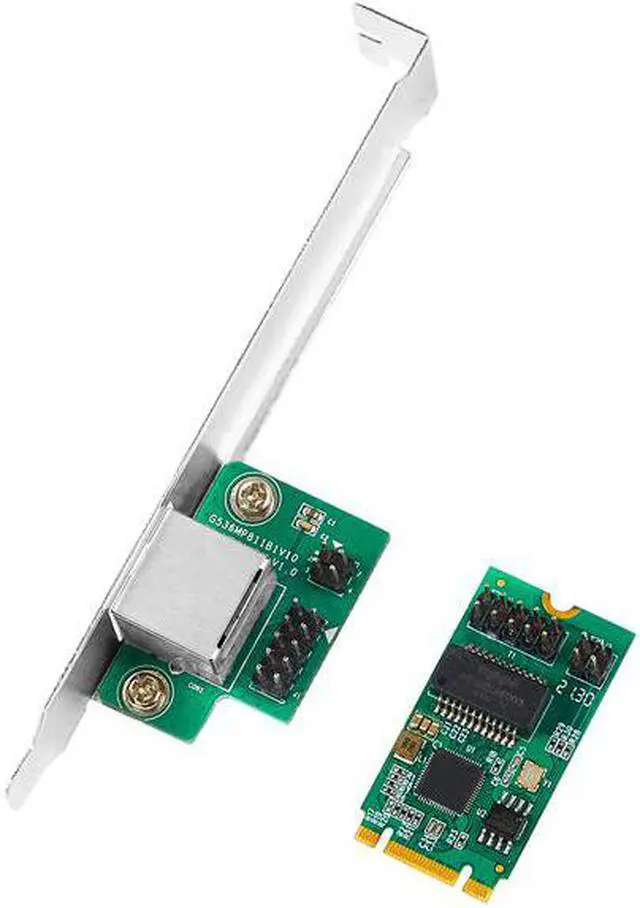

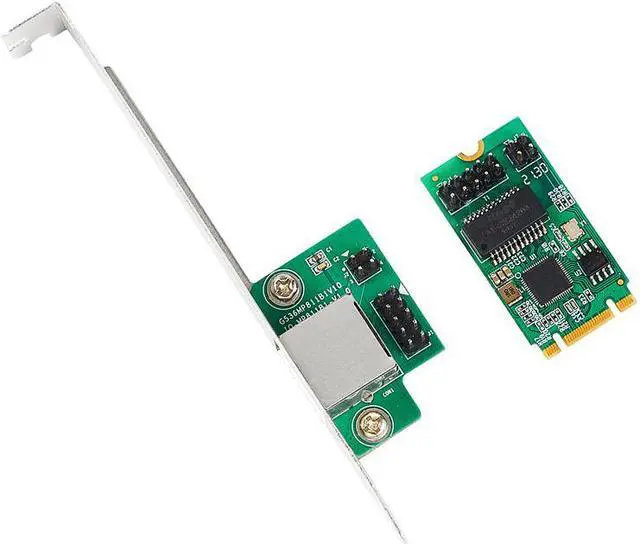

2.5G M2 to RJ45 Network Card 1 Port 2500Mbps M.2 b key M key to PCIe 2.5Gb Ethernet Card LAN Controller Card for Intel I225 Chip
About Description:
Features
Compliant with M.2 Key B+M NGFF Card Electromechanical Specification
Compatible with M.2 key B/M (2242) Card Electromechanical specification
Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
RJ45 connection Compatibility with cable lengths up to 100 meters using CAT5e, CAT6, or CAT6A.
PCI Express 3.15GT/s support for x1 width (Lane).
IEEE 802.3 autonegotiation
IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Multiple Queues: 4 Tx and Rx queues per device
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading(IPv4 IPv6) capabilities
Active State Power Management (ASPM)
Full wake up support
ACPI register set and power down functionality supporting D0 and D3 states
MAC Power Management controls
Power Management Protocol Offload (Proxying)
Preboot Execution Environment (PXE) Support
TCP/UDP, IPv4 checksum offloads (Rx/Tx)
Transmit Segmentation Offloading (TSO) (IPv4, IPv6)
Low-Latency Interrupts
Receive Side Scaling (RSS) for Windows Up to four queues per port.
Support for packets up to 9.5KB (Jumbo Frames)Enables faster and more accurate throughput of data.
System Requirements
Windows 10
Windows 11
You'll receive:

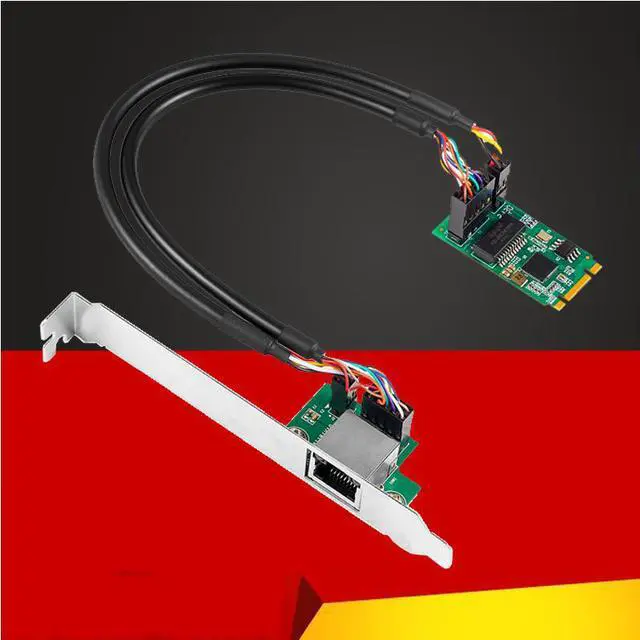

1 x M.2 B+M Key 2.5Gigabit network adapter-main card
1 x RJ45 Network Connector card-daughter board
1 x 10-Pin Network cable
1 x 4-pin LED cable
1 x User Manual
Please check pictures for more details.
