Video Capture Card USB 3.0 4K 60Hz HDMI Capture Cards Video Grabber Recorder Box Dongle for Game Streaming Live Stream Broadcast

Package:Yes
Model Number:AC4703
Interface Type:USB
Type:Video & TV Tuner Cards
Name:USB 3.0 HDMI Video Capture Card
Input:HDMI*1
Out:USB*1
Feature 1:USB3.0 video capture
Feature 2:HDMI Video caputer card
Feature 3:4K HDMI video card
Feature 4:4K 60Hz
Function:live stream
Software:OBS, potplayer,youtube
Supports:phone capture card

Video Capture Card USB 3.0 4K 60Hz HDMI Capture Cards Video Grabber Recorder Box Dongle for Game Streaming Live Stream Broadcast
About Description:
1. Introduction:
HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 4Kp60 input and output USB 1080p60 signal. The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.
2. Feature:
It doesn't need to install a driver, and it is truly PnP.
It is compatible with Windows, Linux, OS X operating systems
USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
The process of video and audio is done by the dongle and will not occupy the CPU.
It can capture one single channel HD HDMI video signals.
It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
Support HDMI 2.0b and HDCP 2.2.
3. Specification
Host Interface: USB3.0, *300-350MB/s, USB2.0, *40MB/s
Input Interface: HDMI interface
HDMI Input Formats:
480i,480p,576i,576p,720p,
1080i,1080P,4Kp30,4Kp60
Output Formats:
Resolutions:360x240/640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate:30/40/48/50/59.94/60 fps
Size:79.5x51x21 (L/W/H, mm)
Weight:75g
Power consumption
Working Temperature: 0-50 deg C
Storage Temperature: -20-70 deg C
Storage Humidity: 5%-90%
4. Connect and Operate
1. Connect the signal sources such as Blu-Ray Player, Play Station , audio/video receiver, satellite receivers with HDMI output interfaces with a HDMI cable to the device HDMI input.
2. Insert the USB3.0 cable head to USB3.0 interface, the other side of the cable into your computer's USB3.0 interface.
3. HDMI to USB3.0 Video Capture Dongle is based on UVC (USB video class), UACUSB audio classSTANDARD, without having to install drivers and settings.After installation in operating system, the relevant video and audio devices will be added on. In Windows, for example, will have image device:
USB3.0 HD Video Capture ;
USB3.0 HD Audio Capture ;

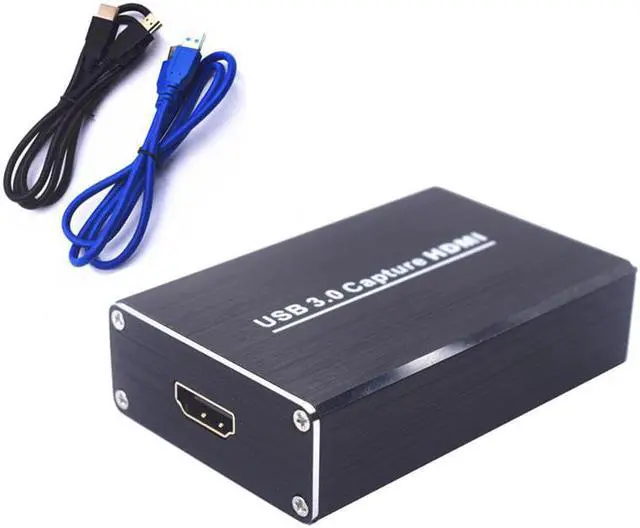

You'll receive:
1 x USB3.0 Capture HDMI 4Kp60 Dongle
1 x USB3.0 Cable
1 x HDMI Cable
1 x User Manua

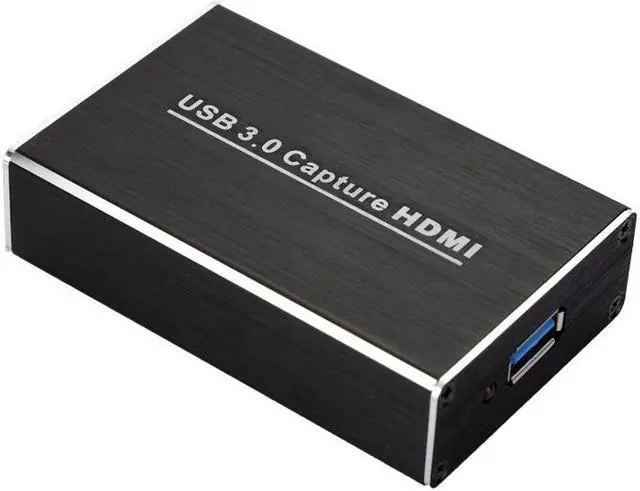

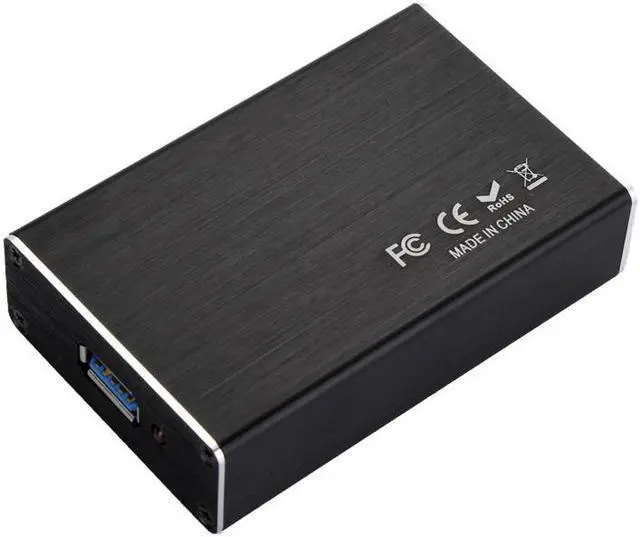

Please check pictures for more details.
