High Speed Mini PCI-Express Turn 4 Ports RS422 RS485 Industrial Serial Port Card

Interface Type:PCI Express
Package:Yes
Model Number:IO-MPCE354A-4S

High Speed Mini PCI-Express Turn 4 Ports RS422 RS485 Industrial Serial Port Card
About Description:
100% And .
Part Number: IO-MPCE354A-4S
Specifications
Accord Full-Mini (F1) Card type slot size;
Accord PCI-E Mini Card electrical specification Revision 1.2;
RS485 signals: DATA+ (B), DATA- (A), GND
RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
600W surge protection, 15 KV ESD protection for all serial ports
Working mode: asynchronous working.point-to-point or point-to-multipoint 2 wires (half
duplex) 4 wires (full duplex)
Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
Sleep mode with wake-up Indicator
Transmission media: twisted-pair cable or shielded cable
Interface protection:600W surge protection, 15 kV ESD protection for all serial ports;
Direction control: Adopt the technology which automatically controls the data-flow
direction.automatically distinguish and control the data-transmission direction;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and
even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Load capability; Support point-to-multipoint transmission. Each converter can connect
32 RS-422 or RS-485 interface equipment
Extended operating temperature range; -40 to 85°
Applications
Next generation Point-of-Sale Systems
Remote Access Servers
Storage Network Management
Factory Automation and Process Control
System Requirements
Windows® Server 2003, 2008, 2012
Windows® XP, Vista, 7, 8
Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and er
A available mini PCI Express slot

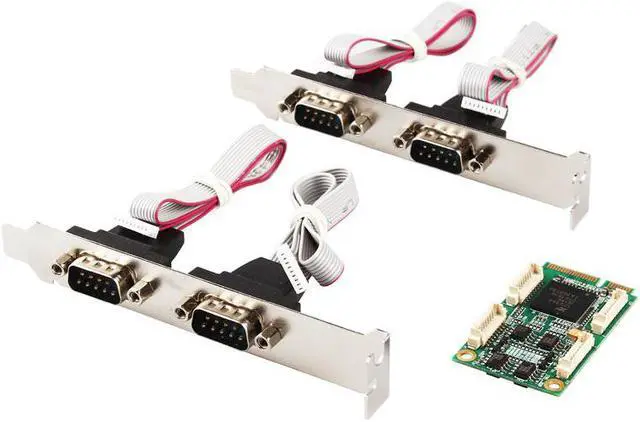

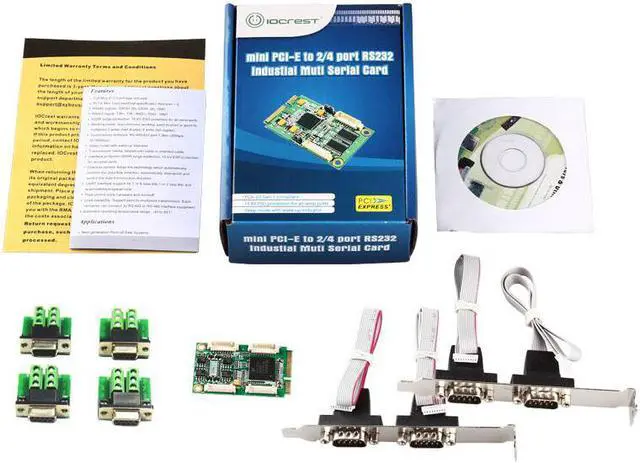

You'll receive:

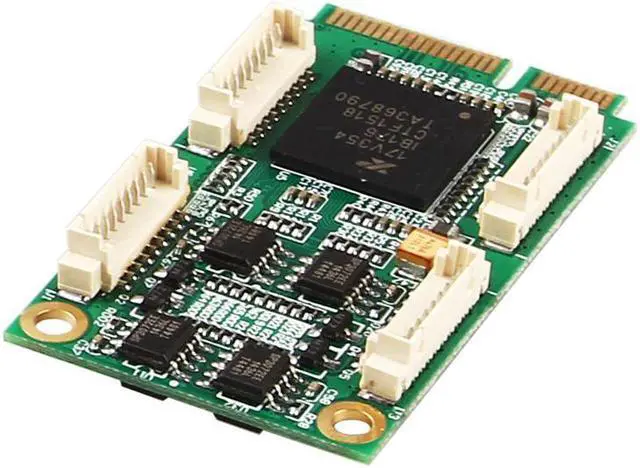

1 x mini PCI Express Controller Card
2 x Dual-port Serial Adapter
4 x RS422/485 Terminal
1 x User Manual
1 x CD Driver
Please check pictures for more details.
