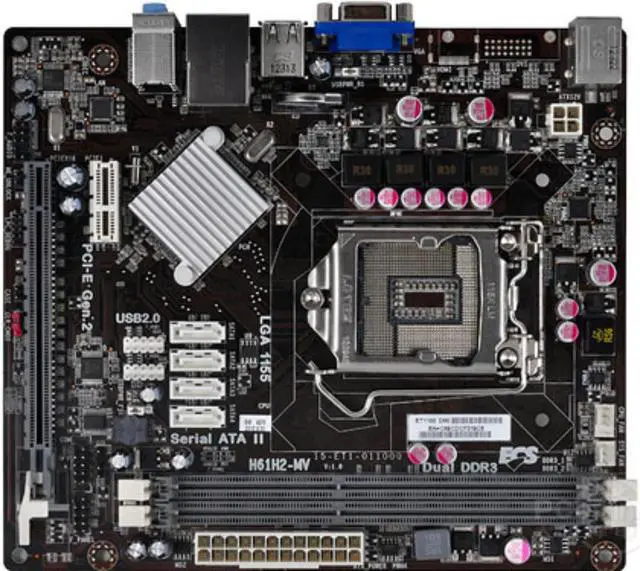

Motherboard LGA 1155 For ECS H61H2-MV LGA 1155 Motherboard DDR3 Intel H61 PCI-E 3.0 SATA II VGA USB2.0 Micro ATX For Core i7i5

Quality Certification:ce
Chipset:Intel H61
Socket Type:LGA 1155
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:H61H2-MV
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:1
Number Of Memory Slots:1
Memory channel:Double
Number of SATA Ports:4
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2006
Number of PCIe x 4:0
Number of PCIe x 1:0
Number of M.2:0

motherboard chip
Integrated chip sound card/network card
Main Chipset Intel H61
Chipset Description Using Intel H61 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC662 6-channel sound chip
Network card chip Onboard Realtek RTL8105E 100M network card
Processor Specifications
CPU Type Core i7/Core i5/Core i3/Pentium/Celeron
CPU socket LGA 1155
CPU Description Support Intel 22/32nm processor
Memory Specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
storage expansion
PCI-E Standard PCI-E 3.0 Standard
PCI-E slot 1×PCI-E X16 graphics card slot
1×PCI-E X1 slot
Storage interface 4×SATA II interface
I/O interface
USB interface 8×USB2.0 interface (4 built-in + 4 backplane)
Video interface 1×VGA interface
Power connector one 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
plate type
Mainboard form factor Micro ATX form factor
Dimensions 19.5×17.0cm
