Quality Certification:ce
Chipset:Intel B85
Socket Type:LGA1150
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No

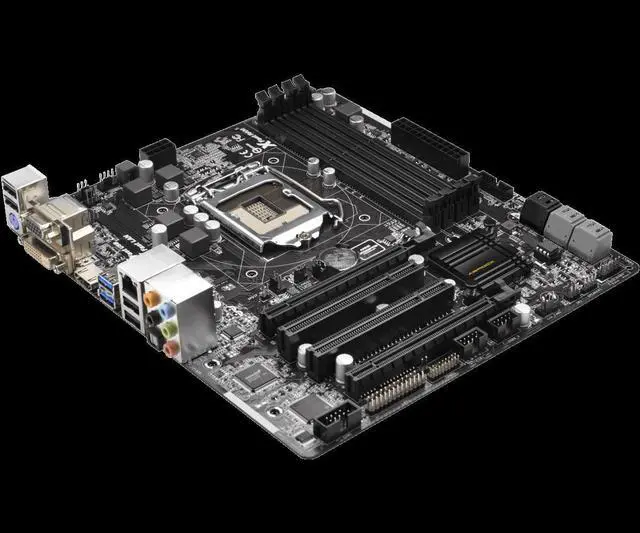

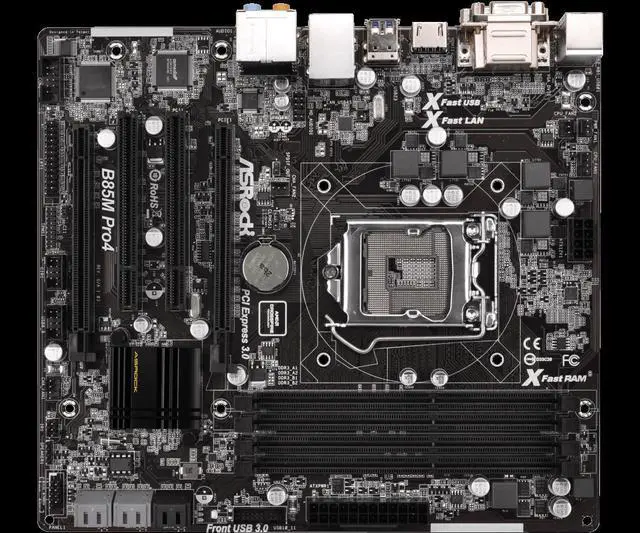

Model Number:B85M PRO4
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:1
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:2
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2004
Number of PCIe x 4:0
Number of PCIe x 1:0
Number of M.2:0
motherboard chip
Integrated chip sound card/network card
Main Chipset Intel B85
Chipset Description Using Intel B85 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC892 8-channel sound chip
Network card chip Onboard Intel I217V Gigabit network card
Processor Specifications
CPU Type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
Memory Specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot
PCI slot 2×PCI slot
Storage interface 4×SATA III interface; 2×SATA II interface
I/O interface
USB interface 4 × USB3.0 interface (2 built-in + 2 backplane); 8 × USB2.0 interface (4 built-in +4 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface
1×Fiber interface
audio port
plate type
Mainboard form factor Micro ATX form factor
