Raspberry Pi CM4 Compute Module 4 board

Demo Board Type:ARM
Origin:CN(Origin)
Certification:CE

Notice :

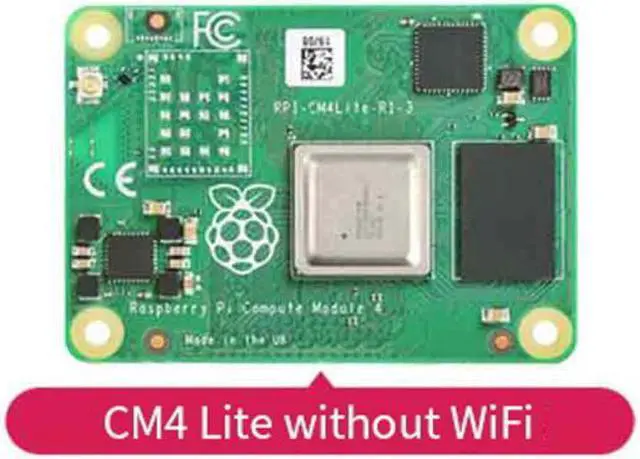

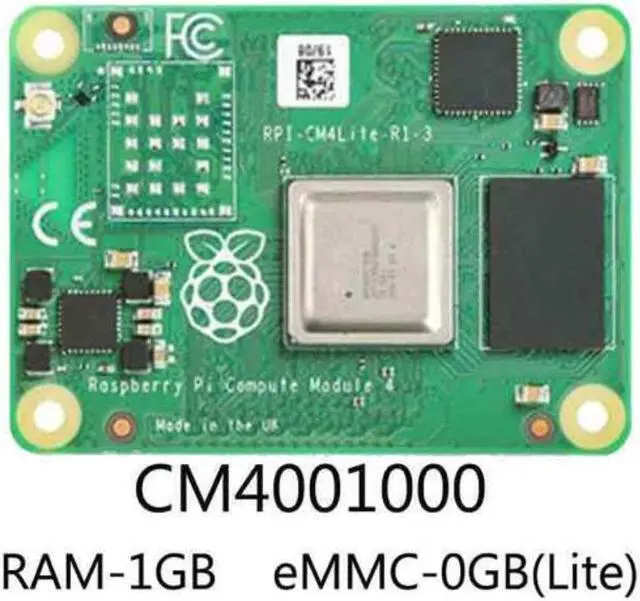

"Bundle: CM4001000" = RAM-1GB + eMMC-0GB(Lite)
Raspberry Pi Compute Module 4
High Speed, Large RAM, Low Power, Boosted Performance
Raspberry Pi Compute Module 4
harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.
Raspberry Pi Compute Module 4
incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of
RAM
and
eMMC Flash
options, and with or without
wireless connectivity
.
Completely Upgraded, More Powerful
Upgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+
Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications

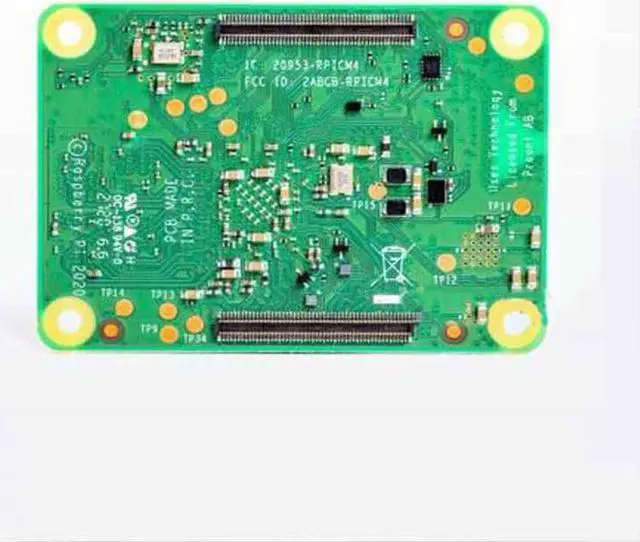

Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Specifications
Package Contains
Bundle:[CM4001000]
