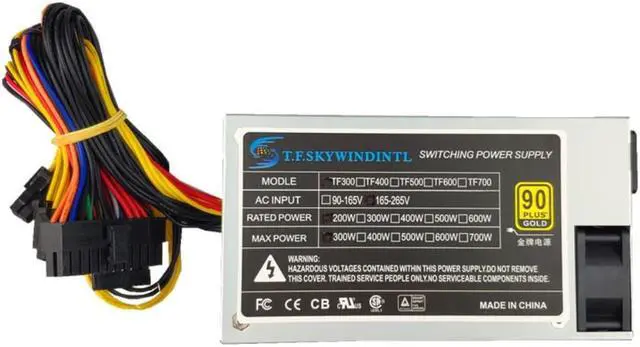

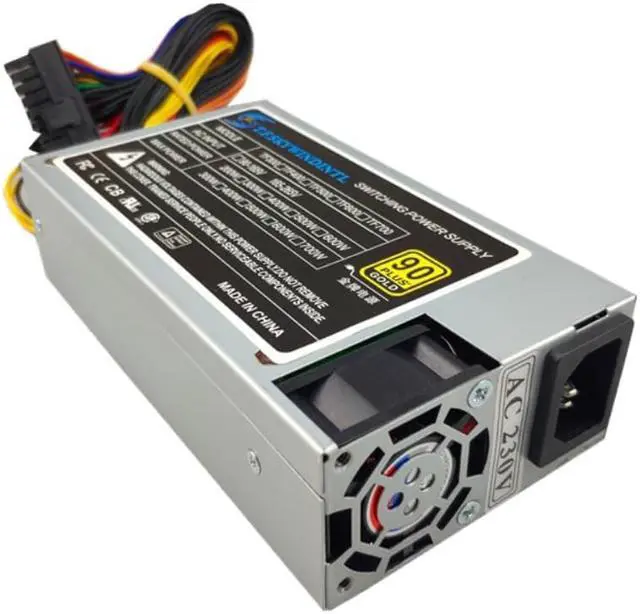

250W PC Power Supply FLEX ITX-1U Computer Power Supply 1U Small Desktop Computer Cash Register Power NAS Low-power Equipment

PFC Type:PASSIVE
Number of SATA Ports:2
Graphics Card 12V Pin Number:0
D-type Bus Number:2
CPU Power Connector:4 pin
Package:Yes
Interface Type:20Pin
Application:Server,Desktop
Model Number:TF300W
Output:10A
Input Voltage:184-264V
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China

250W PC Power Supply FLEX ITX-1U Computer Power supply 1U small Desktop Computer Cash Register power NAS Low-power equipment
FLEX power supply (ITX-1U power supply) is widely used, including industrial, civil, personal, etc.; for example: MINI-ITX computer. ITX chassis, POS machine, IPC system, server, workstation, industrial computer. Diskless workstation integrated computer, TV computer one machine, etc.
Features:
1: compliant with INTEL FlexATX version 1.01
2: Built-in overvoltage, short circuit, undervoltage, overload protection
3: Support for the latest CPU & APU
Output specifications:
Rated power: 250W
P.G signal: 100-500ms
Hold time: 16ms (min)
Efficiency: 72%
Other parameters:
Application: industrial computer, inquiry machine, cash register, one machine, high-definition machine, etc.
Fan type: 4cm

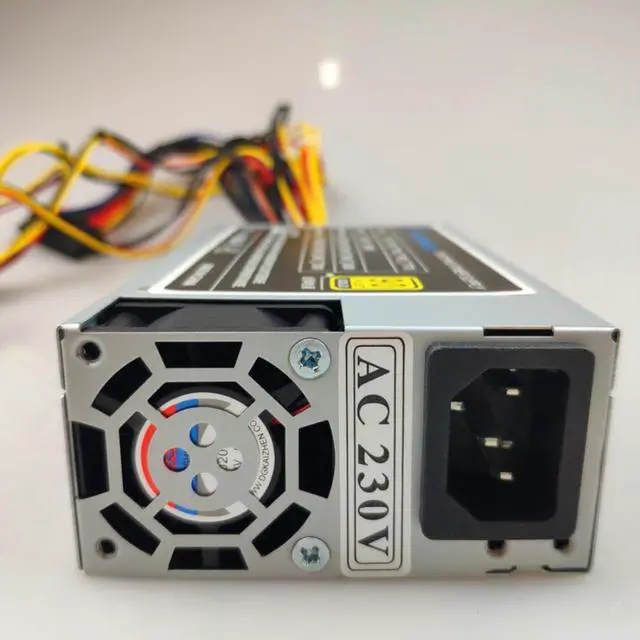

Input voltage: 115ac/220Vac (plus switching)
Outlet type: non-module power supply

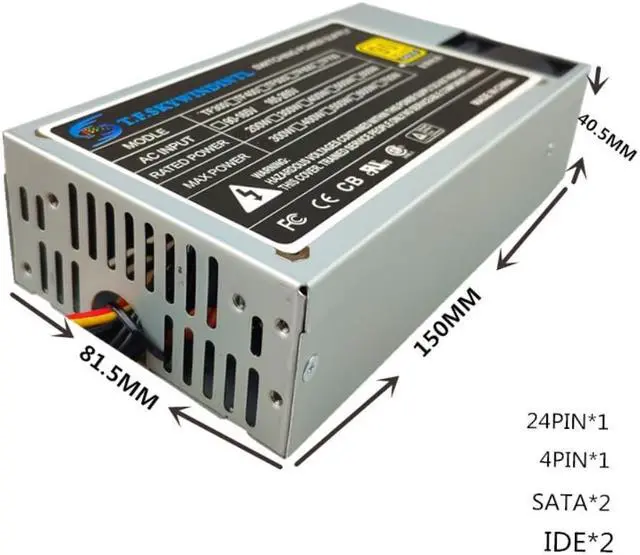

Appearance size: L150*W81.5*H40.5mm
Connector : 24pin*1+4pin*1+sata*2+ide*2
For more information and details,contact our sales
