PFC Type:Active
Number of SATA Ports:2
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:2
CPU Power Connector:4 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:350WXH
Output:20A
Input Voltage:180-264V
Modular:Full Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

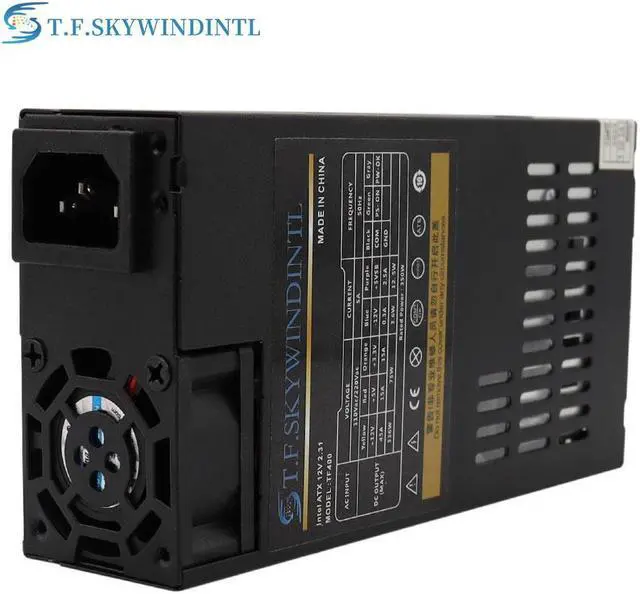

350W Small 1U Full Modular PSU Max 400W Desk Computer Power Supply For One Machine Small Chassis Computer Power
Power: rated 350w (peak above 400w)
Voltage : 90V-264v
+3.3V output current 20A
+5V output current 30A
+12V output current 22A
Fan structure: single silent fan
Protection function:
overvoltage protection
Undervoltage protection
Overload protection
Overcurrent protection
S
hort circuit protection

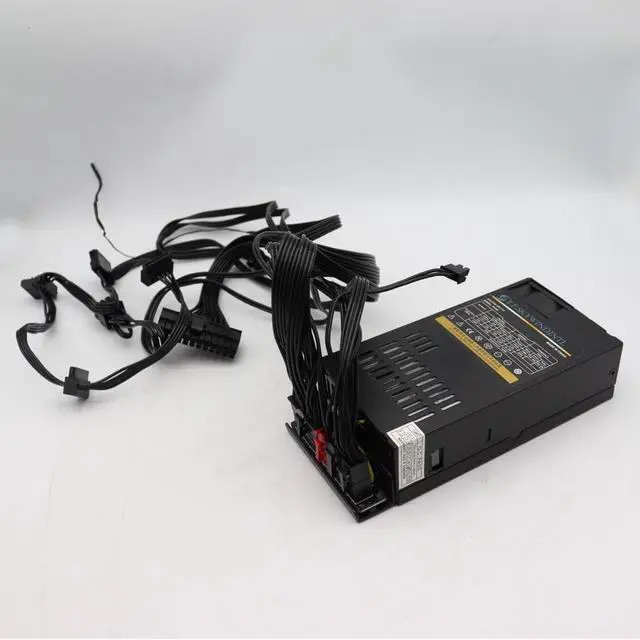

Connector :
20+4pin to 14pin *1 .........47cm
4pin to 4+4pin *1...................53cm
6pin to 2+6pin*1.....................63cm
4pin to sata to sata to IDE *1.......53CM+17CM +17CM +17CM
