PFC Type:Active
Number of SATA Ports:3
Graphics Card 12V Pin Number:6 pin
D-type Bus Number:4
Package:No
Interface Type:20 + 4Pin
Application:Desktop
Model Number:ENP-7025B
Output:see below
Input Voltage:see below
Modular:Non-Modular
80 PLUS Certification:80 PLUS BRONZE
Origin:Mainland China
Certification:CE

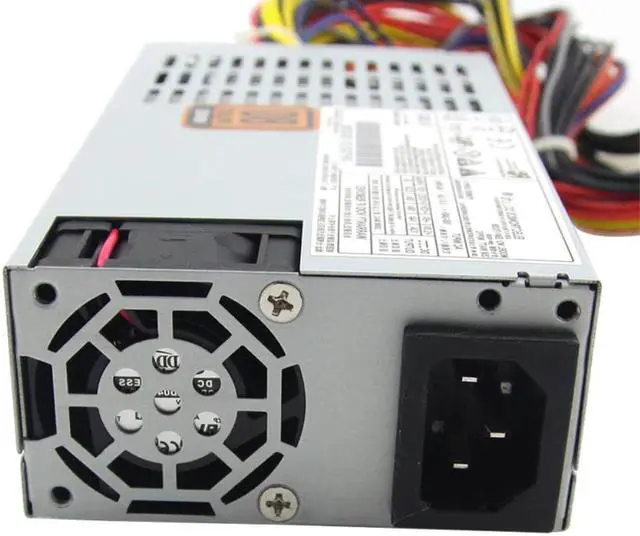

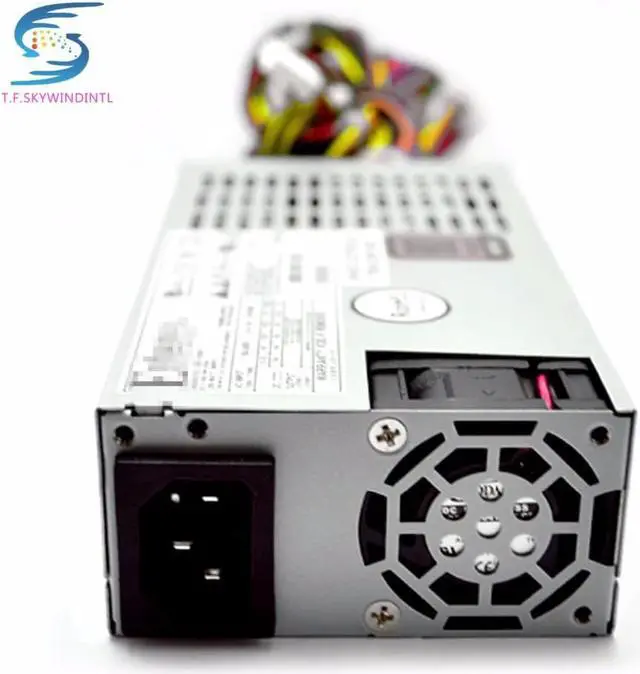

ship ENP-7025B 1U PFC Flex ATX 80 Plus Bronze 250W Power Supply industrial Power Supply PSU ENP7025B 1U Flex PSU
Specification:
Output Wattage 250W
80 PLUS Bronze Certified: Power Supply Units (PSUs) that have more than 80% energy efficiency at 20%, 50% and 100% of rated load, and a power factor of 0.9 or greater at 100% load. That is, PSUs that waste 20% or less electric energy as heat at the specified load levels, thus reducing electricity use and bills compared to less efficient PSUs.
Form Factor: TFX12V
Active PFC/CE, UL/CUL Safety Compliant
Input Voltage: 100-240V 4-2A VAC Auto Sensing
Frequency: 60-50Hz
Holdup Time: > 14ms @ Full Load
MTBF: 100,000 HRS
DC Output: +3.3V 17A, +5V 13A, +12V 16A, -12V 0.3A, +5Vsb 2A
Size :150×81.5×40.5 mm

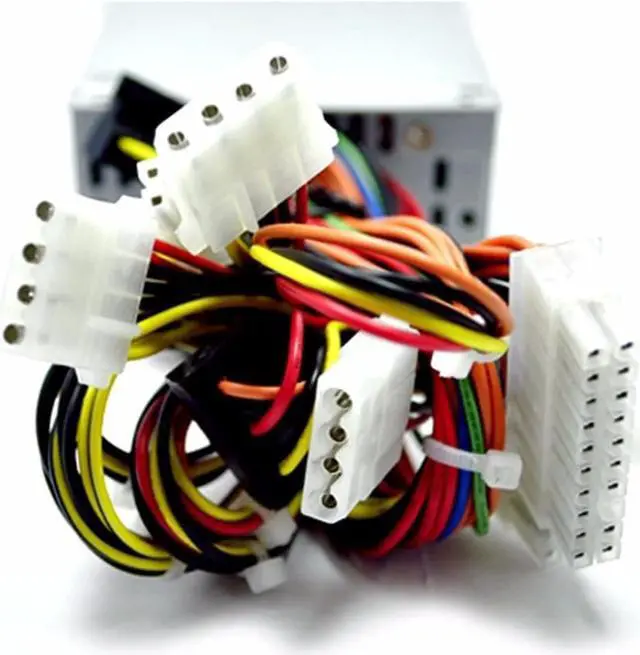

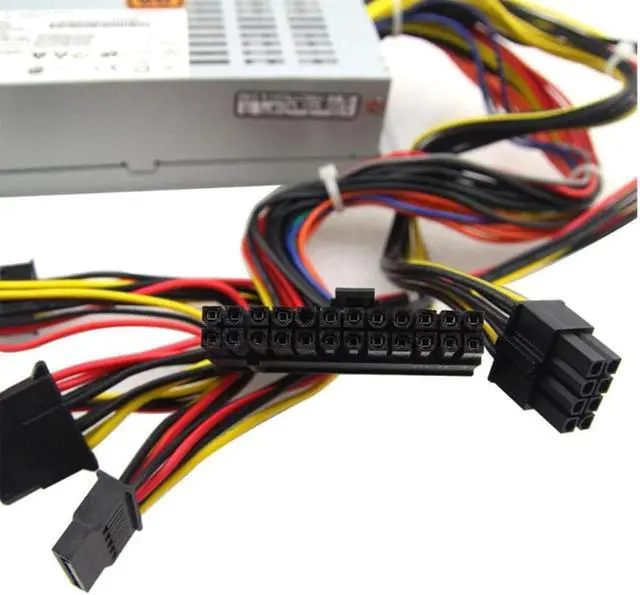

Connectors:
1x 20/24 Pin ATX Connector
1x 4-Pin 12V Connector
3x Peripheral Connector (Molex 4 PIN)
1x Floppy Connector
2x SATA Connector
