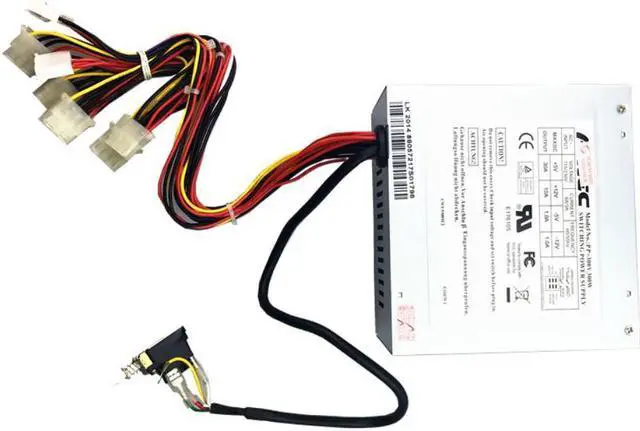

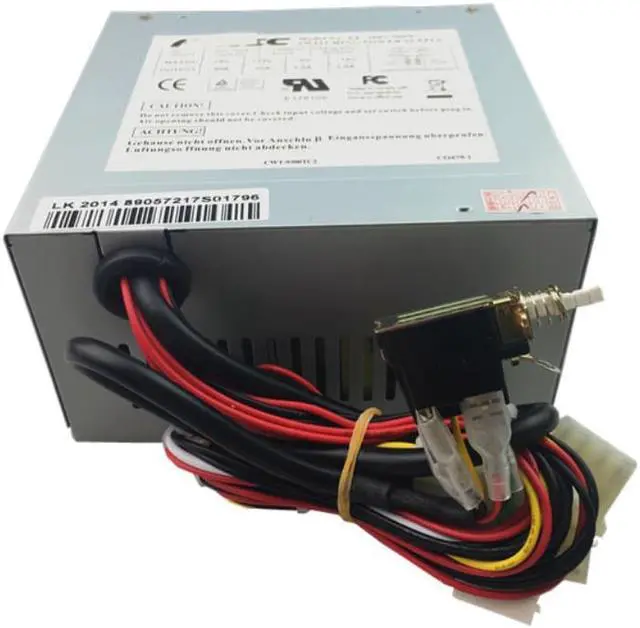

PP-300V AT SWITCHING POWER SUPPLY 115/230 V AC Adjustable Switch IPC Power Supply PC Power Spark Machine Power P8P9

PFC Type:Active
Graphics Card 12V Pin Number:0
D-type Bus Number:5
Application:Desktop
Model Number:PP-300v
Output:see below
Input Voltage:see below
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

ship ,PP-300V SWITCHING POWER SUPPLY 115/230 V AC adjustable switch IPC power supply PC Power Spark Machine Power P8P9

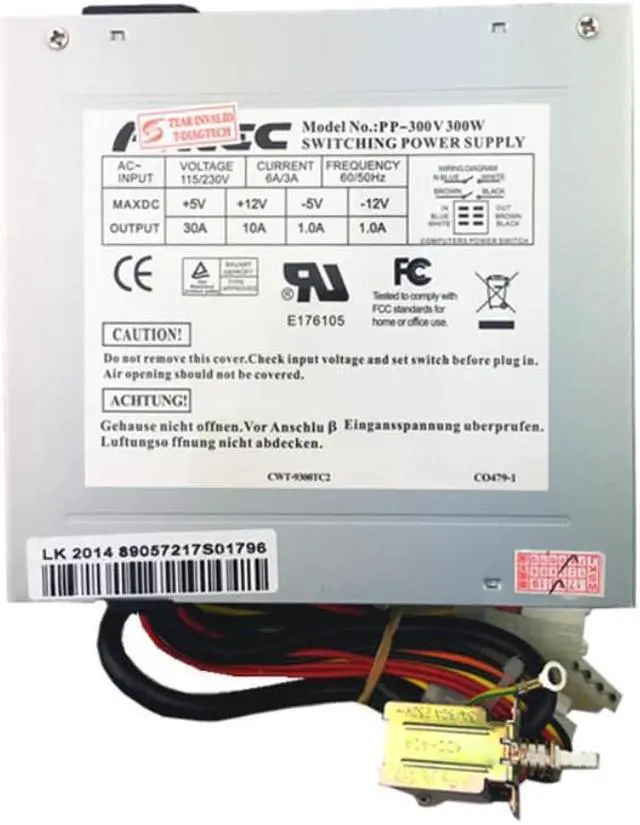

Model: PP-300V
Power: 300W
AT power supply with

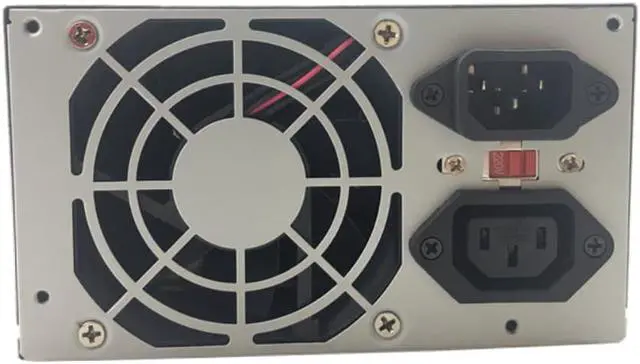

P8 P9 interface, 115 / 230V voltage conversion switch,Behind has a hook
Dimensions: 140 (L) * 150 (W) * 85 (H) mm
Anti-lightning design, high efficiency, low ripple noise
With an ambient temperature of 25 ° C, the average trouble-working time> 60,000 hours
Overpressure, overcurrent, overload, output short circuit protection
100% high temperature (40 ) aging, 100% high pressure test (AC 1.5KV 10mA 3Sec.)
Additional SATA drives can be supported on request and compatible with other products
Can replace the standard 4U industrial power supply, widely used in video surveillance, security products, cutting machine and various types of industrial chassis.
Detailed interface:
IDE port: 5
AC switch: 1
Floppy drive interface: 1
P8 interface: 1
P9 interface: 1
Lightning protection grounding: 1
for more information and details,contact our sales for help before you buying
