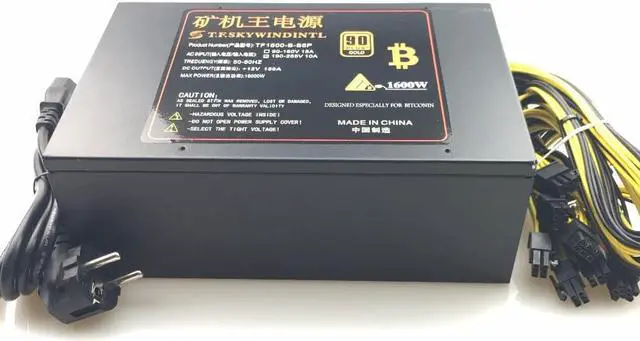

Ship 1600W Psu Ant S7 A6 A7 S7 S9 L3 Bitmain Antminer s9 BTC Miner Machine Server Mining Board Power Supply Mining Rig Pico

PFC Type:PASSIVE
Graphics Card 12V Pin Number:0
Package:Yes
Application:Desktop,Server
Model Number:1600W PSU
Output:see below
Input Voltage:180-264V
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

ship 1600W psu Ant S7 A6 A7 S7 S9 L3 bitmain antminer s9 BTC miner machine server mining board power supply mining rig pico
this power supply only has 10 * 6pin plugs ,if you want other pins , please contact our sales , we can make special for you
Colour : black and silver by radom
Product features
High reliability: built in EMI filter
Wide voltage input: 180-264v
High stability: 100% full load aging
Protection function: over current / over voltage / short circuit protection
Product size: 200*185*80 (mm)
Product description
AC input voltage range                              180-264AC
Input leakage current                                0.7mA/230VAC
DC input voltage                                        12V
DC output current                                      130A
Grid regulation rate (full load)                    ±0.5%
Adjustable range of output voltage            ±10%
Output overcurrent protection
110130%
Output overvoltage protection
115150%
Insulation strength
I/PO/P: 3.0KVAC/1minutes
I/PO/P: 1.5KVAC/1minutes
I/PO/P: 0.5KVAC/1minutes
Rise time                                    Full load is 50ms (typical)
Retention time                            Full load is 20ms (typical)
Work environment
-10 ~ +50 DEG C, 20% ~ 93%RH (no doubt)
Savings environment
-20 ~ +85 DEG C, 20% ~ 95%RH (no doubt)
Safety standards


Consistent with GB4943, UL60950, EN60950
EMC standard                            Consistent with GB9254, EN55022, ClassB, EN55024

EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Cooling form
Fan cooling
package :
1*1600 power supply
1*power cable
Package L
