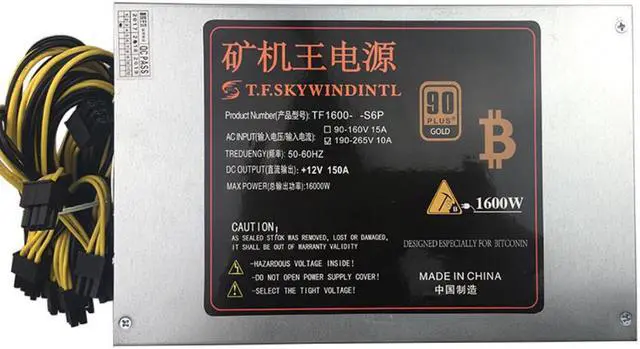

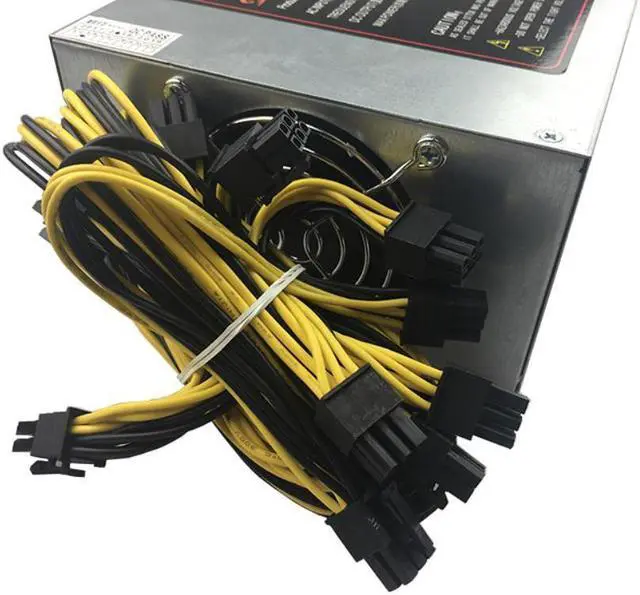

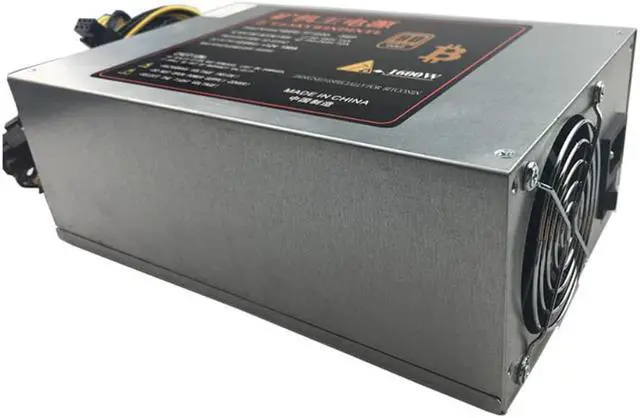

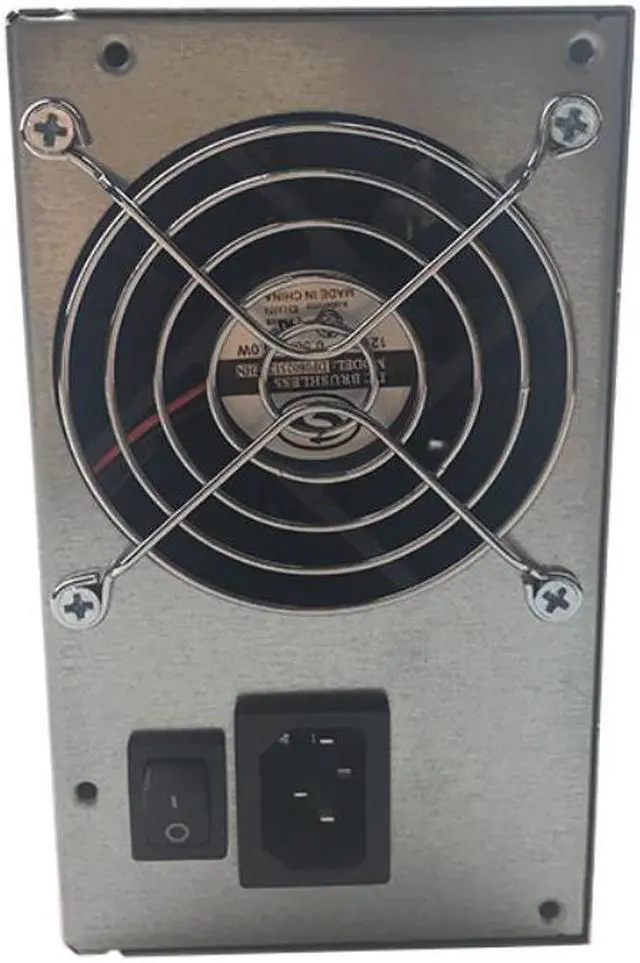

1600W PSU Power Supply PC For ETH S7 S9 6pin*12 1600W ATX for L3 Mining Machine Power Supplies for Eth Bitcoin Miner Antminer

PFC Type:Active
Graphics Card 12V Pin Number:6 pin
Package:Yes
Application:Desktop,Server
Model Number:tf1600w12
Output:see below
Input Voltage:185v-260v
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

Power Supply PC For ETH S7 S9 6pin*10 1600W ATX for L3 Mining Machine Power Supplies for Eth Bitcoin Miner Antminer
Product features
High reliability: built in EMI filter
Wide voltage input: 185V-240v
High stability: 100% full load aging
Protection function: over current / over voltage / short circuit protection
Product size: 200*185*80 (mm)
Product description
AC input voltage range                              150-240vAC
Input leakage current                                0.7mA/230VAC
DC input voltage                                        12V
DC output current                                      130A
Grid regulation rate (full load)                    ±0.5%
Adjustable range of output voltage            ±10%
Output overcurrent protection
110130%
Output overvoltage protection
115150%
Insulation strength
I/PO/P: 3.0KVAC/1minutes
I/PO/P: 1.5KVAC/1minutes
I/PO/P: 0.5KVAC/1minutes
Rise time                                    Full load is 50ms (typical)
Retention time                            Full load is 20ms (typical)
Work environment
-10 ~ +50 DEG C, 20% ~ 93%RH (no doubt)
Savings environment
-20 ~ +85 DEG C, 20% ~ 95%RH (no doubt)
Safety standards


Consistent with GB4943, UL60950, EN60950
EMC standard                            Consistent with GB9254, EN55022, ClassB, EN55024

EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Cooling form
Fan cooling
Package :
1*1600W power supply
