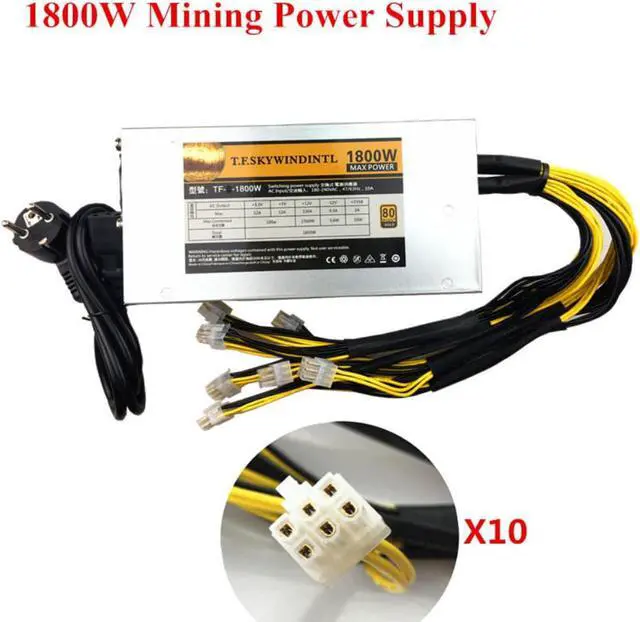

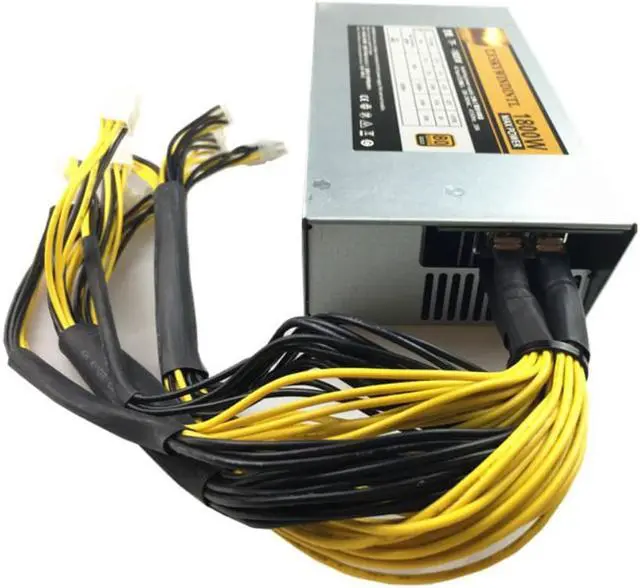

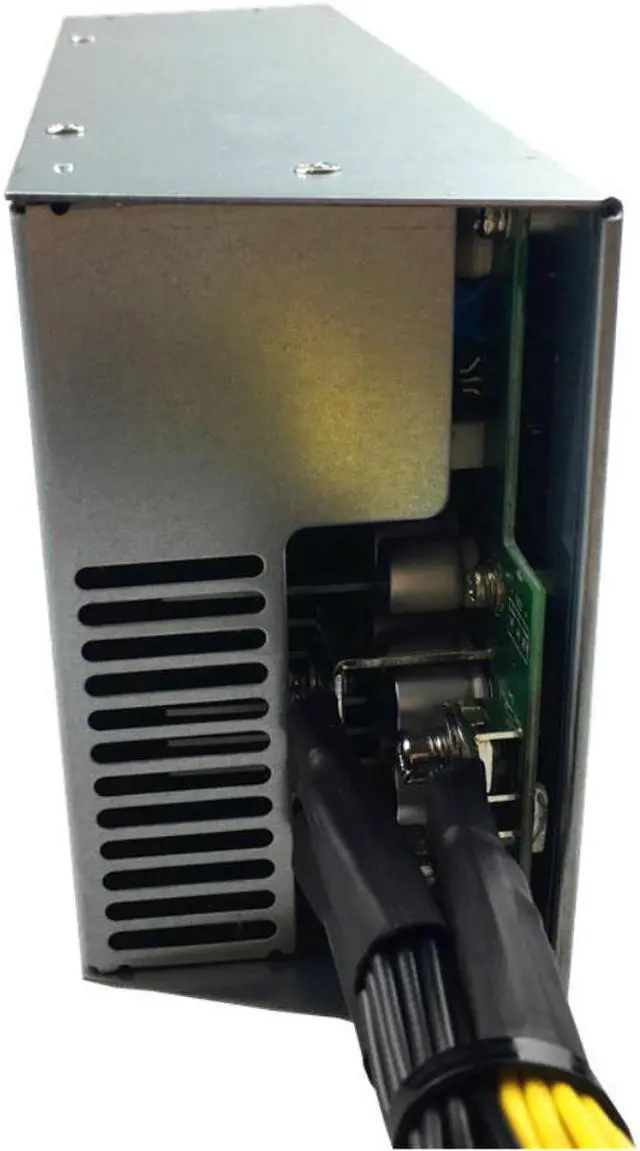

1800W BTC APW3++ PSU Mining Power Supply ETH Antminer S7 S9 L3 D3 T9 1800W 93% ATX ETH Mining Machine PSU Bitcoin Miner Antminer

PFC Type:Active
Graphics Card 12V Pin Number:6 pin
Package:Yes
Application:Server,Desktop
Model Number:180
Output:see below
Input Voltage:220V-264V
Modular:Non-Modular
80 PLUS Certification:Gold
Origin:Mainland China
Certification:NONE
PLUG:depends on your country
voltage:200-264V
connector:10*6PIN
performance:stable

1800W BTC APW3++ PSU Mining Power Supply ETH Antminer S7 S9 L3 D3 T9 1800W 93% ATX ETH Mining Machine PSU Bitcoin Miner Antminer
Specification:
- Model: AWP1800
- Shell Material: Aluminum
- Size(L*W*H): 25.5*10*4.5 cm
- Cable Length: 39cm
- Power Cord Length: 1.5 Meter
- Connectors: 6 PIN * 10 Pcs
- Number of Interfaces: 10
- Fit For: S9(12.5T/13T/13.5T/14T) S7 Ant Series Mining Machine
1. Input:
- Voltage Range: AC 176~264V
- Input Rated Voltage: AC 200~240V
- Starting Inrush Current:
- Maximum Input Current:
- Efficiency: >=93%
2. Output:
- Output Rated Voltage:DC 12.25V
- Load Regulation:
- Linear Regulation:
- Rated Output Power: 1800W(Max)
- Output Current: 0~150A
- Output Ripple And Noise:
- Drive And Shut Down Overshoot Range:
- Rise Time:
- Boot Time:
- Hold Up Time: >=10mS(230V rated voltage test)
3. Protection Characteristics:
- Input Under-voltage Protection Point:
- Input Under-voltage Recovery Point:
(Can automatic recovery, the backlash is not less than 5V)
- Input Over-current Protection: Yes
(The over-current point is between 140~160A)
- Output Short-circuit Protection: Yes
(Recovery after removal of short circuit)
- Input Over Temperature Protection: Yes
(When the temperature switch is higher than 100 degrees, protect, turn off the 12V output, and the temperature can be restored automatically below 65 degrees centigrade.)
4. Environment Conditions:
- Operating Temperature: -40~+50â?? Full Load (Typical value is 25 â??)
- Storage Temperature: -40~+85â?? (Typical value is 25 â??)
- Operating Humidity: 5~95% Frost-
- Storage Humidity: 0~95% Frost-
- MTBF: 50000 H (Typical value is 25 â??)
- Altitude:
- Heat Dissipation Mode: Air Blast Cooling
5: Package
-1*1800W PC Power Supply
-1* Power Cable
