Hot POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter Injector Power Supply Module 12-48v For IP Camera

Plug Type:EU
Size:Standard
Model Number:AAA
Item Type:Cables
Origin:Mainland China
Certification:NONE
1:POE Cable
2:POE Splitter
3:RJ45 Injector
4:Power Supply Module
5:12-48v
6:POE Adapter cable
7:Connectors Passive
8:Power cable
9:RJ45 Injector + Splitter
10:For IP Camea

Hot POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter Injector Power Supply Module 12-48v For IP Camera
Descriptions:

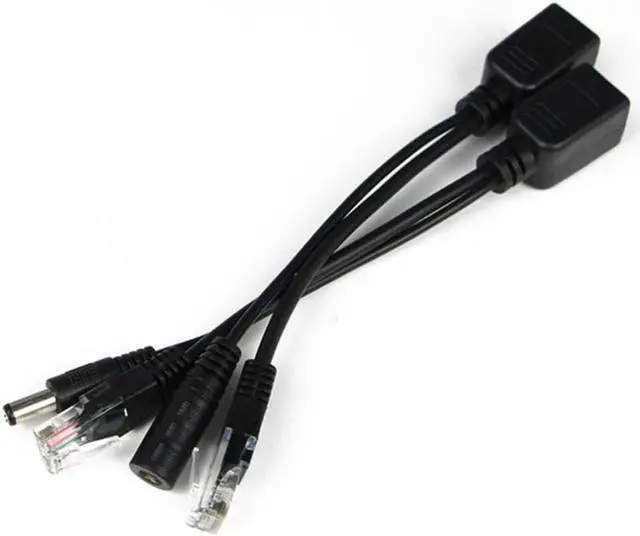

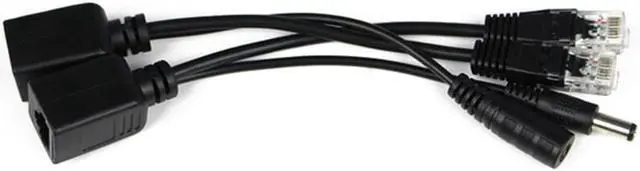

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax etc. The devices can be supplied standardly up to 50V. (The power adapter is not included - it is possible to use the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130 ft (the real distance depends on the power supply, type of cable and powered device).
Contains: INJECTOR and SPLITTER.
Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE injection.
Connector Barrel size is 2.1mm (5.5 x 2.1 mm)
Power Pins 4,5 + and 7,8 -
1. It is very simple to connect a passive PoE. On the lower part, we connect the EthernetRJ connector of passive PoE to the PC, Hub or Switch and connect the power adapte to the power socket.
2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.
3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect  the power connectors and the Ethernet to the powered equipment. The equipment is now connected by them.
Input / Output Specifications
DC Input Voltage:UP to 60VDC
DC Output Voltage:UP to 60VDC
Max Output Current 1.5A-2A Max.
Over Current Protection None
Work range:below 30 meters.
General Sepcifications:
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
CASE OF MATERIAL PVC
Ethernet Date Rate 10/100Mbps
Ethernet Cable TIA/EIA 568 Cat.5
Humidity Up to 90%
Weight: 70g
DC Plugs 2.1mmx5.5mmx12mm
Length 190mm
Package 2pcs/lot(1pair) Include:
PoE Splitter x1
PoE Injector x1
