1pc 2.5A/ 5A/ 15A High-power 3-phase DC Brushless Vacuum Motor 24V 350W High-speed Vacuum Cleaner Motor With Shell

Vacuum Part Type:Motors
Model Number:EATAD4036
Origin:Mainland China
Type:Vacuum Cleaner Parts

1pc 2.5A/ 5A/ 15A High-power 3-phase DC Brushless Vacuum Motor 24V 350W High-speed Vacuum Cleaner Motor With Shell
Features:
l
Made of  material, durable and wear-resistant
l
Hig
h, medium and low speed three-phase, maximum speed 15A, medium speed 5A, low speed 2.5A
l
Nice replacement for the , non-working one, make the device work properly
l
Built-in high-power brushless drive, ultra-high-speed brushless motor
l
Motor rotor and impeller do
the
dynamic balance correction, bearing with imported ball bearings
l
The air intake has silicone pad, does not suck foreign matter or absorb water and other liquids into the impeller, or it will damage the motor
Specification:
l
Impeller Material: Aluminum Alloy
l
Diameter with Shell: 69mm
l
Length with Shell: 139mm
l
Inhala
tion Hole Diameter: 27.5mm
l
Rated Voltage: 25V
l
Rated Power: 350W
l

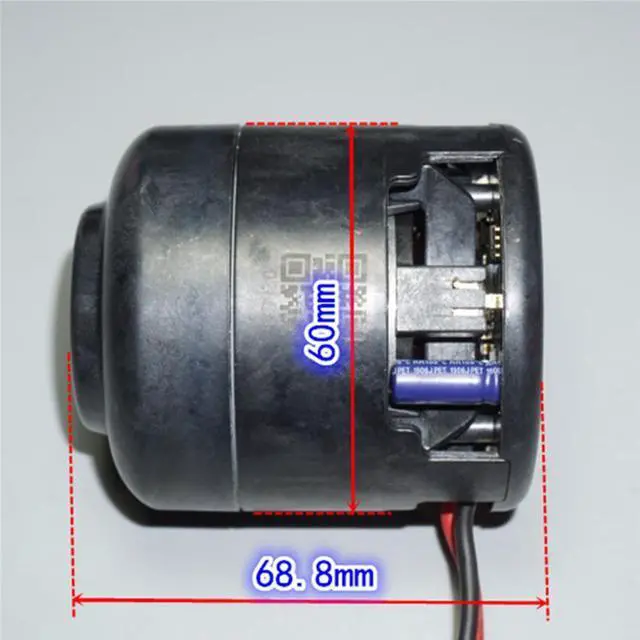

Motor Diameter: 60mm
l
Motor Length: 68.8mm
l
Impeller Inner Diameter: 22.5mm
l
Impeller Outer Diameter: 36.5mm
l
Operating Voltage: 20-30V
l
Quantity: 1 PC
Package:
l
1x Brushless Motor
