Applicable scope: Telecom network line engineering and routine servicing; computer network line maintenance; other metal wire line engineering and maintenance
Features:

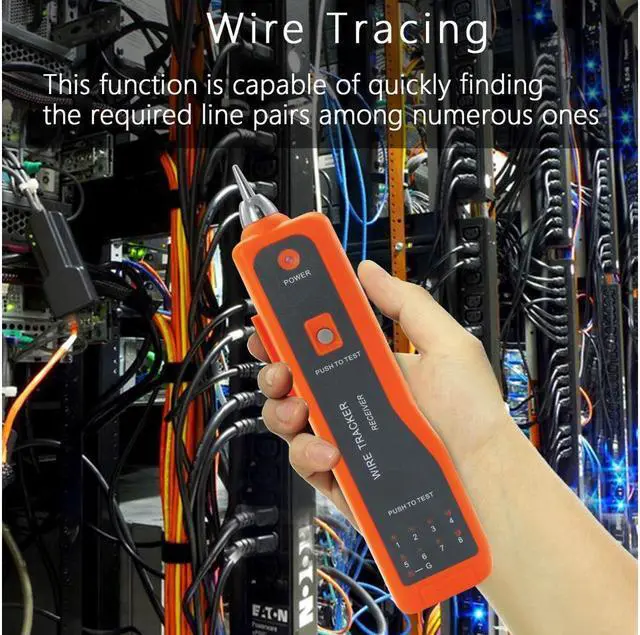

1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. Low Battery Indication
6. Bright white LED flash light
7.
Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11) /4-wire (RJ45) telephone cable
8. Cable State Testing (2-wire)
a. Line DC detecting and anode, cathode determination
b. Ringing signal detecting
c. Open, short and cross testing
Function:
1. Find wire on all types of connected operating Ethernet switch/Router/PC terminal
2. Rapidly find the target wire from among plenty of telephone wires
3. Rapidly find the target wire from among plenty of network wires
4. It can take place of cable tester
5. Compare the volume of the "tout" sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator
Specification:
Power: DC 9V battery (not included)
Working current: test: =10mA, receiver: =30mA
Signal transmission format: Multiple frequency pulse
Signal output electric status: 8VP-P
Distance of signal transmission: =3km
Color: Orange
Material: ABS plastic

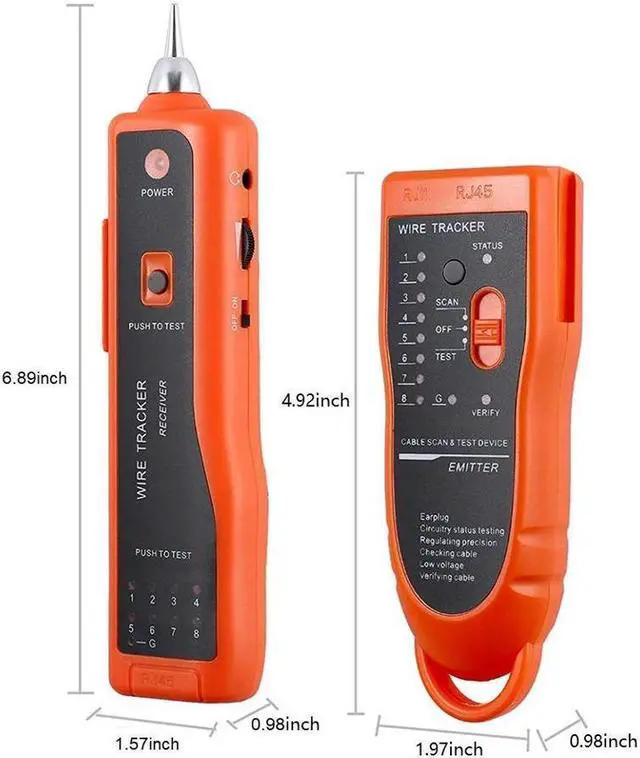

Dimension: Approx. 12.8 × 4.5 × 2.5 cm (Emitter); 17.5 ×4× 2.2 cm (Receiver)

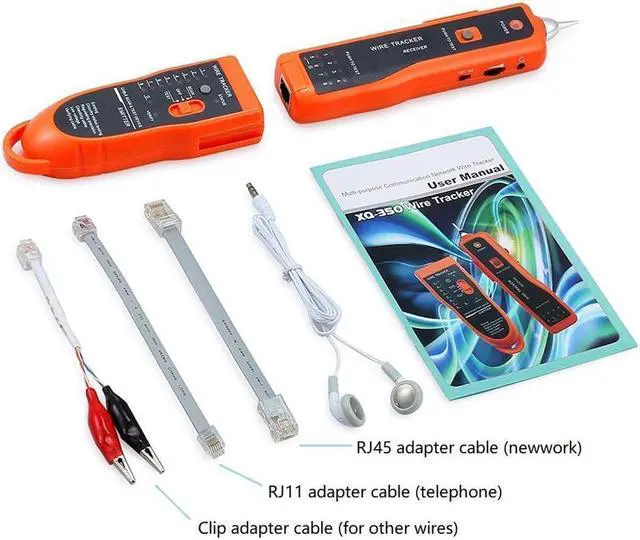

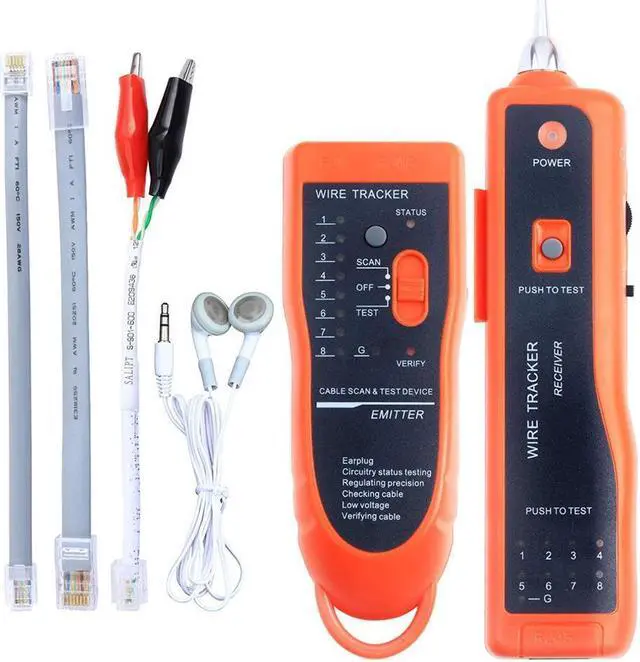

Package content:
1 x Emitter
1 x Receiver
1 x Pair of Earphone
1 x Alligator clip adapter
1 x RJ11 with Clip Adapter Cable
1 x RJ45 Adapter Cable
1 x English User Manual
