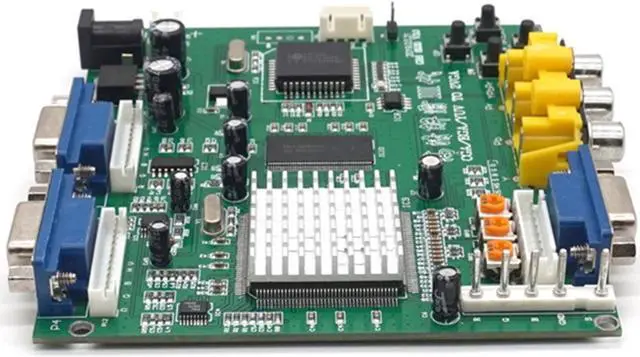

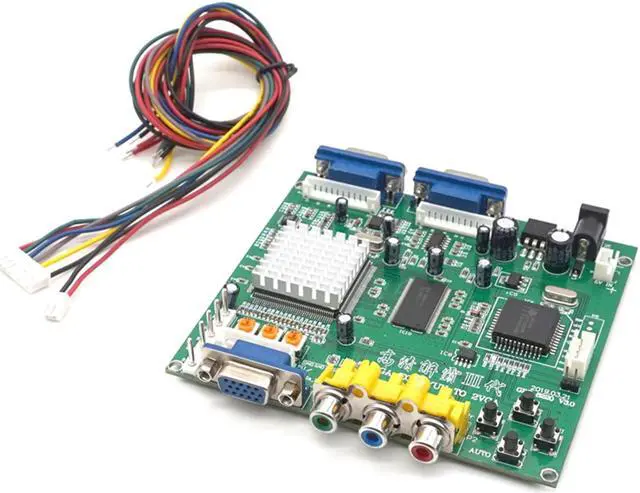

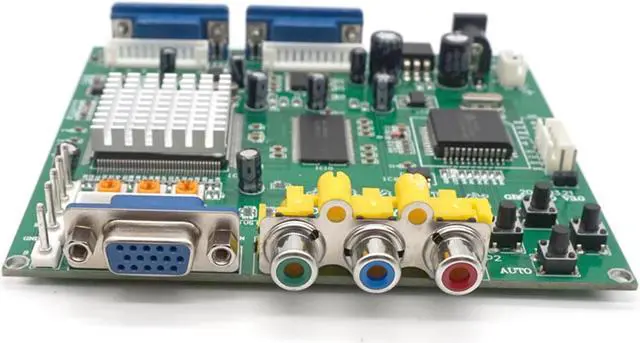

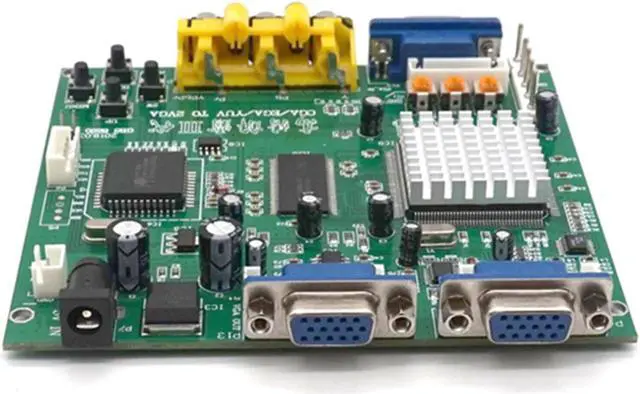

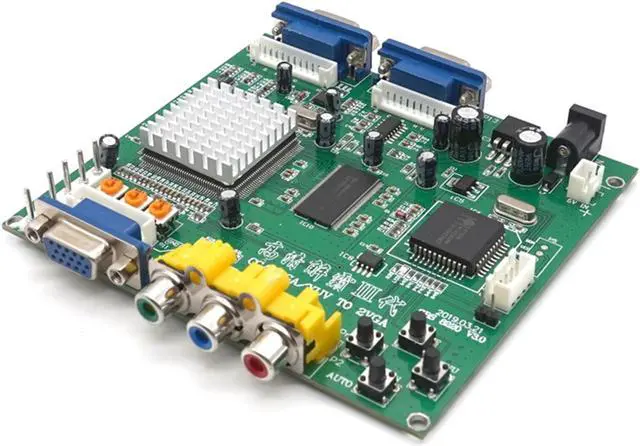

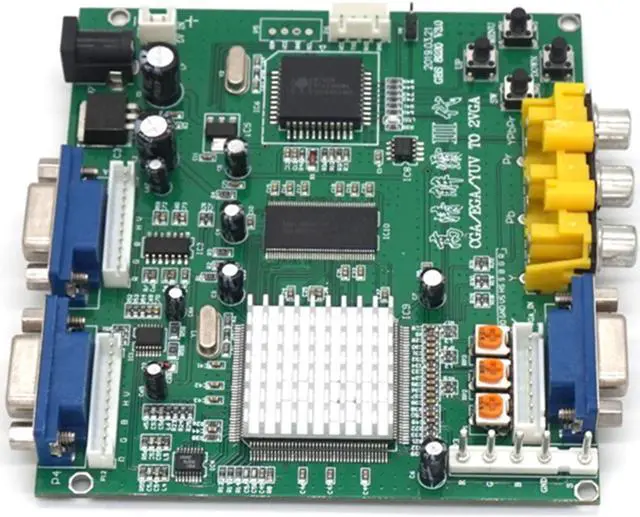

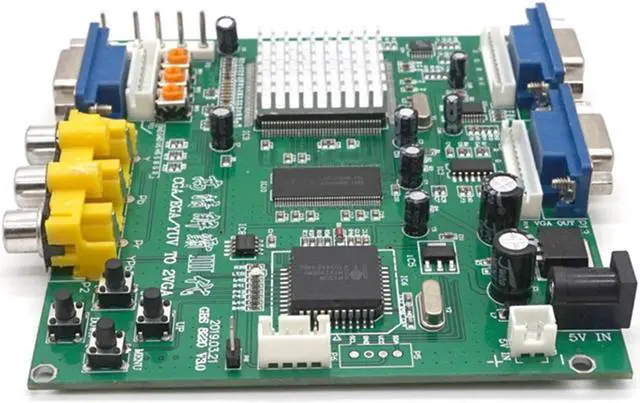

Weastlinks GBS8220 Arcade Game CGA/YUV/EGA/RGB Signal to VGA HD Video Converter Board (Dual Output) Non-Shielded Protection
- Supports CGA/EGA/VGA/YUV Component Signal Input Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) Length of the 2P power supply wire/8P signal wire:50cm Supports image position control & image zoom control Supports CGA/EGA/VGA/YUV Component Signal Input.
- Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) Length of the 2P power supply wire/8P signal wire:50cm.
- Supports image position control & image zoom control.
+
+
Overview
Specs
Reviews
Features:
Supports CGA/EGA/VGA/YUV Component Signal Input Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) Length of the 2P power supply wire/8P signal wire:50cm Supports image position control & image zoom control Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
Length of the 2P power supply wire/8P signal wire:50cm
Supports image position control & image zoom control
Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
On Screen Display (English and Chinese)
Supports image position control & image zoom control
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)
Size of the Circuit Board:11.5mm x 99 mm
Length of the 2P power supply wire/8P signal wire:50cm
Package Included:
1 x Converter board
Supports CGA/EGA/VGA/YUV Component Signal Input Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) Length of the 2P power supply wire/8P signal wire:50cm Supports image position control & image zoom control Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
Length of the 2P power supply wire/8P signal wire:50cm
Supports image position control & image zoom control
Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
On Screen Display (English and Chinese)
Supports image position control & image zoom control
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)
Size of the Circuit Board:11.5mm x 99 mm
Length of the 2P power supply wire/8P signal wire:50cm
Package Included:
1 x Converter board
