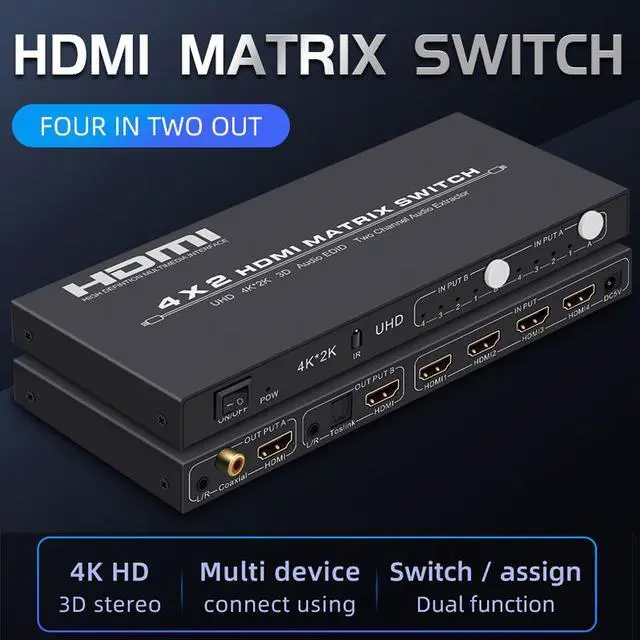

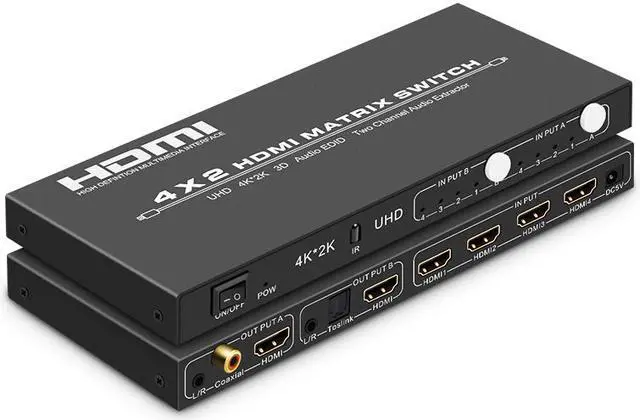

HDMI 2.0 Matrix 4x2 HIFI with 3D Audio EDID HDMI Matrix Switcher 4 in 2 out Audio Extractor 4KHDMI Switcher Splitter

INTRODUCTION

The HDMI2.0 Matrix 4x2 HIFI can connect four high definition sources and two sinks with audio

output optical or stereo simultaneously. It can easily switch or split four high definition video sources to two compatible displays or projectors. The Optical and stereo audio output can extract audio signal from output A or B.



FEATURES

Four HDMI input signals switched or split to two HDMI sink devices

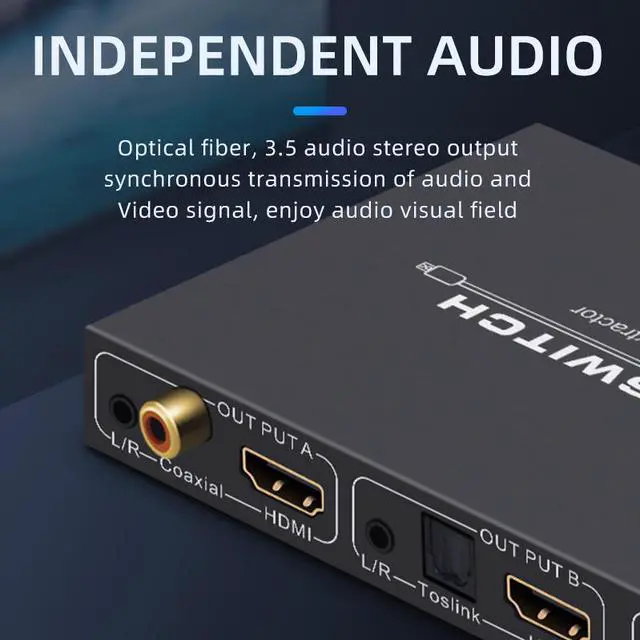

The HDMI output is with audio output by SDPIF and 3.5mm Stereo Audio output

Audio sync separator output can be achieved

Support 3D video format

Support for 4K(input)resolution 2K (output) (Down scaler)

Support HDMI 2.0 HDCP2.3

Support deep color 30bit,36bit

Support Blue-Ray24/50/60fs/HD-DVD/xvYCC

Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DSD

Support signal retiming

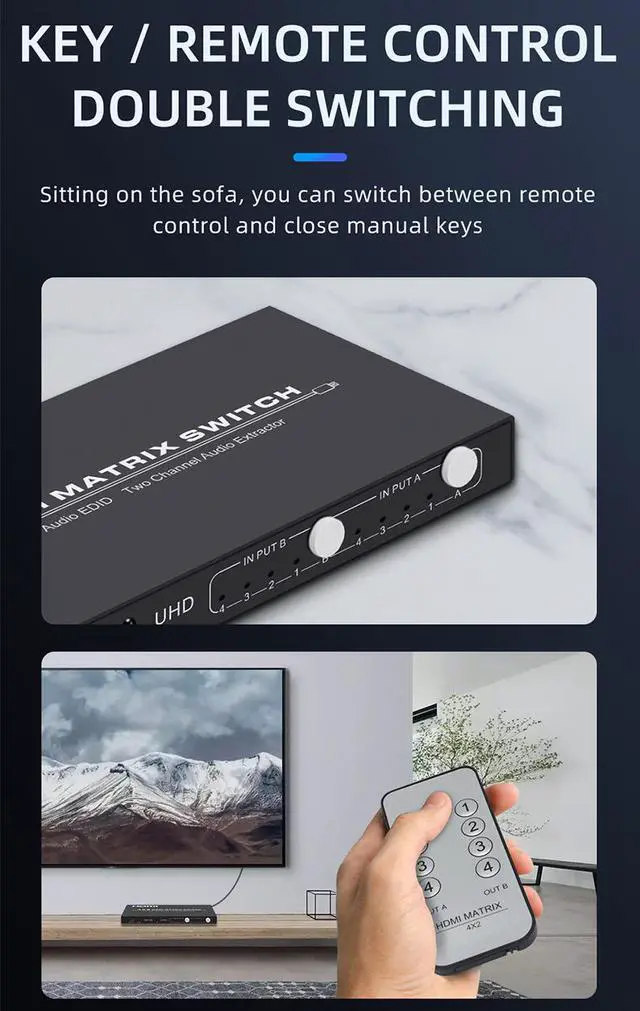

Inputs can be switched with the IR remote control, also can be controled by two buttons



SPECIFICATIONS:

HDMI Version..................HDMI2.0

HDMI UHD resolution.....................24/30/50/60fs/2160p

HDMI HD resolution.................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format.............................................24 bit/deep color 30 bit,36 bit,48 bit

Support audio format.............DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Audio output...............................SPDIFand35mmStereo

Max transmission bandwidth..........................................600MHz

Max baud rate.................................................18Gbps

Input/Output TMDS signal.............................. .......0.5~1.5Volts p-p

Input/Output DDC signal........................ ......5Voltsv p-p(TTL)

Input/Output 4K/30Hz cable distance...........................=15m AWG24 HDMI standard cable

Input/Output 4K/60Hz cable distance.......................=5mAWG24 HDMI 2.0 standard cable

Max working current........................... 1..600mA

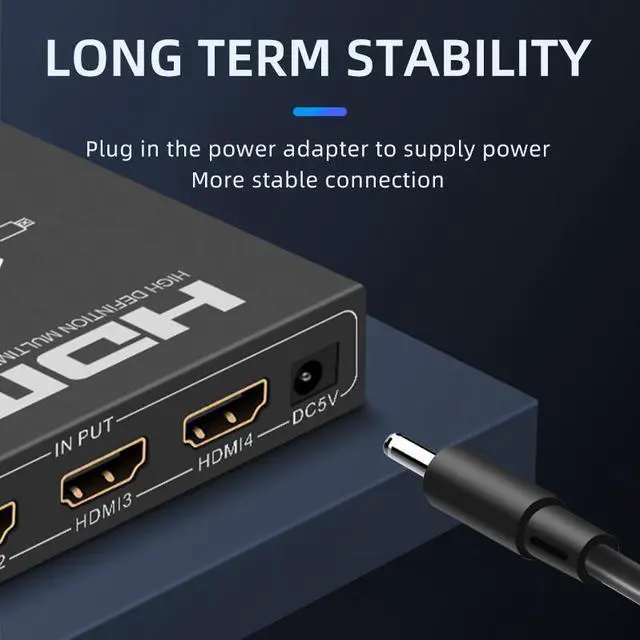

Power adapter forma.........Input:AC(50Hz,60Hz)100V-240V;Output:DC5V/1A

Operating Temperature range.................................15to+55?)

Operating Humidity range...5 to 90%RH(No Condensation)

Dimension(LXWXH)…....................205x90x20(mm)

Weight...............500g
