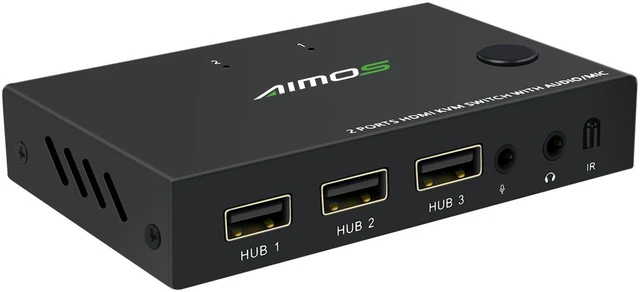

2 Ports TYPE-C HDMI KVM Switch 4Kx2K@30Hz 2 In 1 Out Keyboard Mouse and Printer Sharing Computer Display Switch Audio and Video Synchronization (Remote /Manual Control)

1.Description

HDMI 2 ports KVM switch; 2 groups of high-definition video source and USB interface realize freely switch.Adaptive EDID/HDCP decryption. The equipment has excellent image processing and transmission capacity,make the output signal is more smoother and stable,is a reliable, high performance and efficient way of HDMI USB switch. Suitable for office, computer room,monitoring host, etc.



2.Features

The 2 routes of high-definition video source and USB interface implementation freely switch;

Support video resolution up to 3840*2160 @30Hz;

Compliance with HDMI 1.4 standard;

Adaptive EDID/HDCP decryption, able to adapt to avariety of complex application environment;

Switched by button, which is convenient and quick;

Support USB device, such as HUB, U-disk, printer,etc.

HDCP 1.4 standard - high-bandwidth digital content protection technology;

High compatibility, can auto-match source and display device;

Built-in automatic adjustment system, make the image smooth, clear and stable;

Built-in ESD protection system;

Simple to install, plug and play;

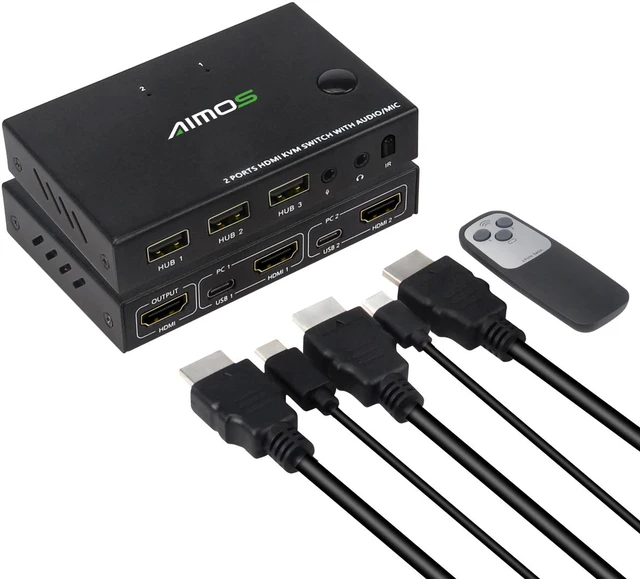

3.Package list

HDMI KVM2*1 Switcher------------------------1 pcs

USB cable-------------------------------------------2 pcs

User manual---------------------------------------1 pcs



4.Specifications

Parameter Description

Video Standards:HDMI 1.4;HDCP 1.4

Video Maximum pixel clock:340MHz

Video Maximum data rate:10Gbps

Video Resolution range:Up to 4Kx2K@30Hz, 3D,1920*1080@60Hz

Video Connector:HDMI-A Interface

HDMI Cable Range:<5M( Resolution:1920*1080@60Hz)

USB Interface protocols:USB2.0

PC input interface type:USB-B

Output interface type USB-A

Power supply USB Power

Power dissipation MAX 2W

Temperature Operating: -5? ~ +70?

Humidity Operating: 5% ~ 90%

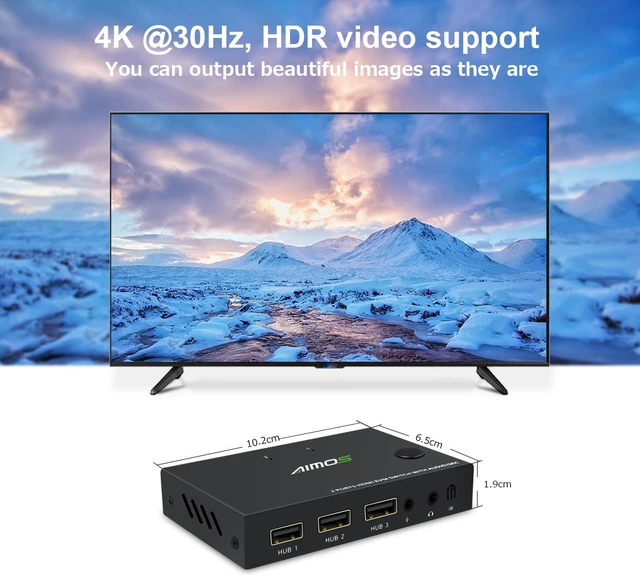

Dimension 100*60*20mm
