-94D 4 Port USB DVI KVM Switch Switcher with Audio and Auto Scan Function Metal

Description

The DVI KVM Switch with built-in sound effect function is specially designed for users of PC and Mac with built-in DVI interfaces and loyal fans of SOHO environment and technology, which is well-suited for DVI. This unique type of KVM switch can easily control two computers, which have built-in DVI interfaces, via a DVI display and either a PC or Mac keyboard and mouse. Image distortion due to conversion of analog and digital signals will not be a problem anymore.

Key Features

1. One USB console controls 2/4 DVI computers;

2. Fully compliant with the DVI-Digital and DVI-Analog specification;

3. DVI interface technology to ensure crisp and clean digital display;

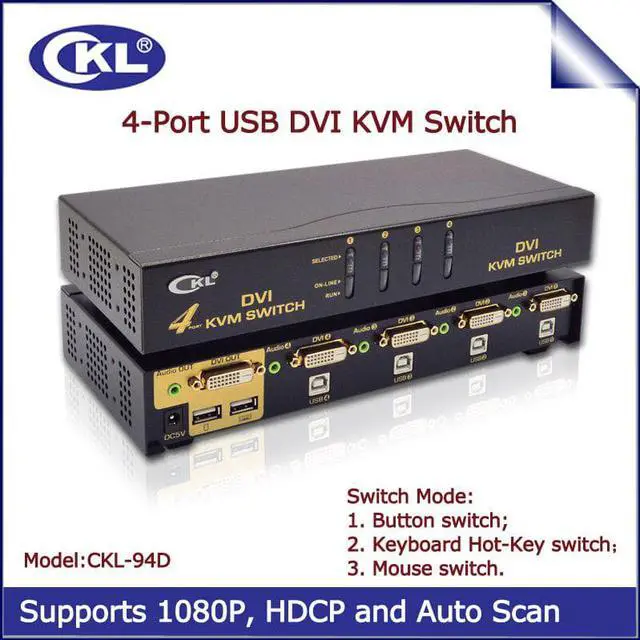

4.  Switch Mode: a. button push  b. Keyboard Hot-Key switch  c. Mouse switch(need install software);

5. With 3.5 Audio interface;

6. Superior video quality - up to 1920*1200,DDC2B;

7. OS support - Windows, Linux,DOS and most others;

8. HDCP compliant.

Switching Operation Instructions

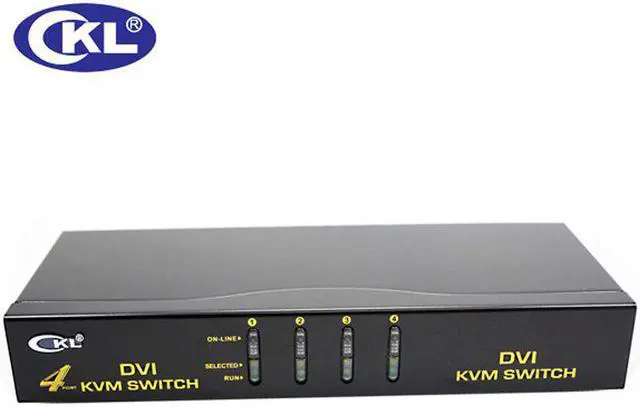

1.Push Button: Simply press the appropriate port selection switch on the front panel. After you press the switch, the select LED lighting indicate that the port is selected currently.

2.Hot Key: Hot Key allows you to conveniently access connected PCs directly from the keyboard, instead of having to manually select them by pressing port selection switches. To select a port with the hot key method, do the following:

Scroll Lock] + [Scroll Lock]+ 1/2/3/4/5/6/7/8 +[Enter]

Auto Scan function: [Scroll Lock] + [Scroll Lock]+S+[Enter]
