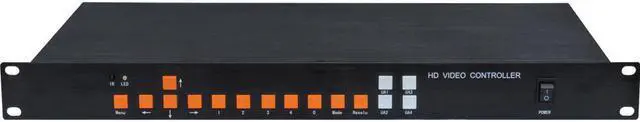

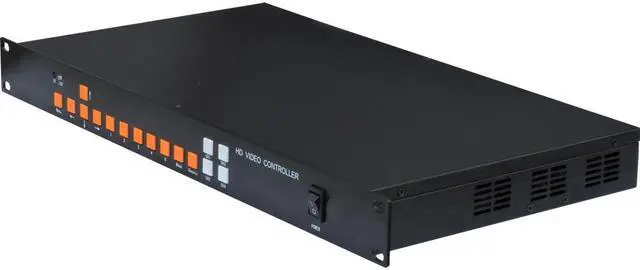

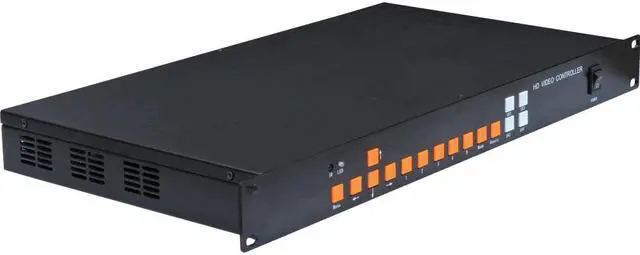

4x1 4K quad multi-viewer with 4K input and 4K output with POP PIP and KVM switch functions

TK-FH4000 HD 4K

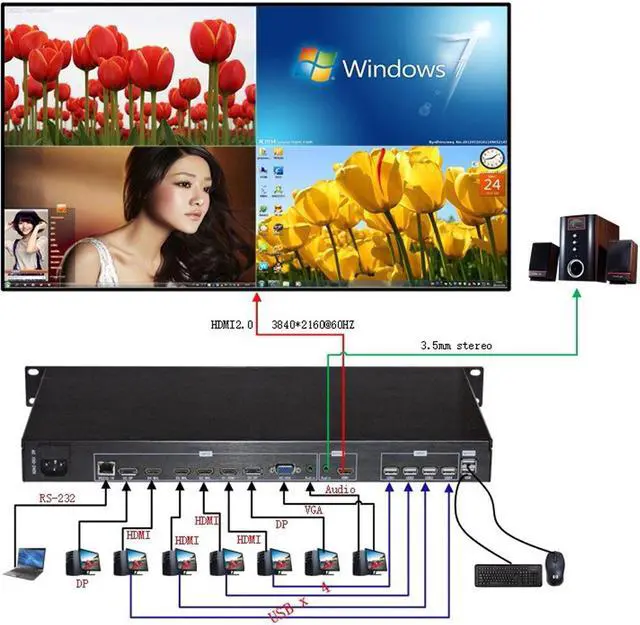

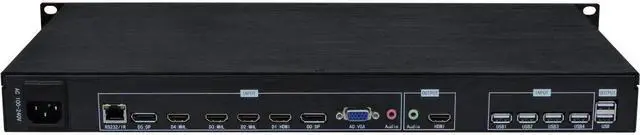

Multi-Viewer is a high-performance image processor with resolution up to 3840*2160@60HZ and downward compatible, it's main function is to make 4 HD or analog signal display in one ultra HD display unit SYNC .      Main Function  Supports one VGA, 2-way DP, 4-way   input signal, the input resolution up to 3840 * 2160 @ 60HZ, downward compatible;   Supports one 2.0 output, the output resolution up to 3840 * 2160 @ 60HZ;   Support point-to-pointsimultaneous display 4-way 1920 * 1080 full HD signal;   Input and output signal wide support audio,also support 3.5mm headphone jack and the left and right channel stereo output;   2 USB signal output, USB connection support mouse and keyboard, and USB with image synchronous switch;   Single screen simultaneously displays four HD digital / analog signals, or switchingto whichever signal full-screen display;   Support image fixed position ,PIP, POP function   Wide support 90V ~ 264V AC input, can be commonly used to any country worldwide;   Standard 19-inch 1U chassis drawing directly put on the cabinet;   Support case key, infrared remote control, RS232 serial control and the center control;     Detailed Introduction about TK-FH4000 1, Pure hardware construction

Adopt pure hardware construction ,without CPU and memory,so booting only need 3 to 5 minutes,system stability,without crash,virus and system breakdown;can uninterrupted work for 24 hours a day of 365 days a year . 2, Advanced DSP image processing techniques

Data use parallel processing,output port occupy one channel and data bandwidth reach 10.2G/S of each channel .Without trailing,delayde,tear,frame loss,image catch up phenom. 4,Supports 3840 * 2160 HD input and output signals
