quad multi-viewer,video fast seamless switcher,audio switcher,KVM switch,USB KVM switch via mouse and keyboard

quad multi-viewer

1th  Main Function

A single display unit supports four-split, left-right two-split, up-down two-split, full-screen display modes;

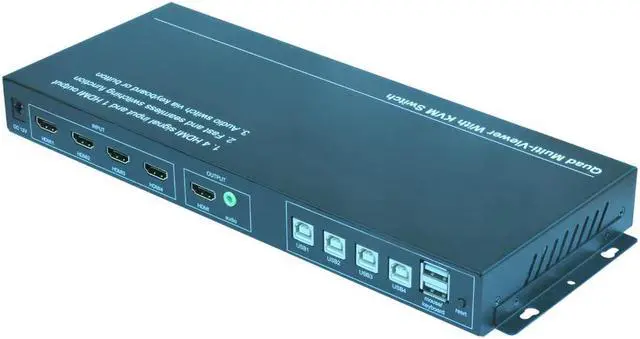

4 signal input, signal embedded audio;

1 output, signal embedded audio, support signal output with maximum resolution of 1920 * 1080;

one independent 3.5mm audio port output can be connected to the sound;

Audio follow screen switching function, or switch audio separately in split mode;

2 USB signal outputs, USB supports connecting mouse and keyboard;

KVM switch function, switch screen display mode, audio switch, quad split mouse through function by keyboard hot key;

Support seamless switching of the second-cut function, all single-screen or different split modes switch without black screen;

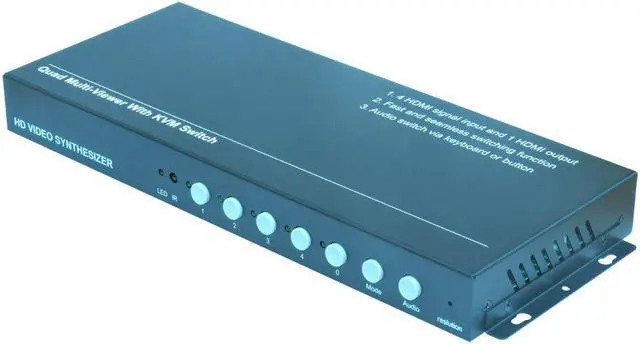

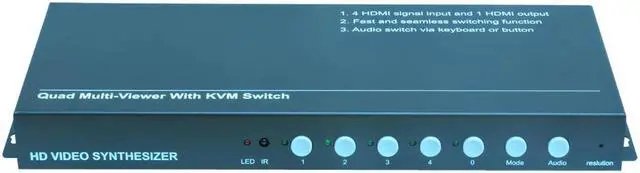

It also supports chassis keys, infrared remote control, and keyboard hotkey control functions.

2th  Detailed Introduction

2.1Screen division function

Support 4 signals displayed on the same display unit at the same time, and realize a certain signal switch to full screen display, two screen split display, as shown below:

2.2Supports 1920*1080 HD input and output signals

Supports 4  signal input, the input resolution up to 1920x1080@60HZ and Backwards compatibility;output resolution supports 1920x1080@60HZ and 1280x720@60HZ.

2.3KVM switch function

2.4 , Mouse through across function

This function enables the mouse to freely move between 4 windows in the 4-segment mode, and the keyboard simultaneously follows. This function will Widely used in medical, teaching, stock and other places that need to operate multiple windows in real time.

2.7Control method
