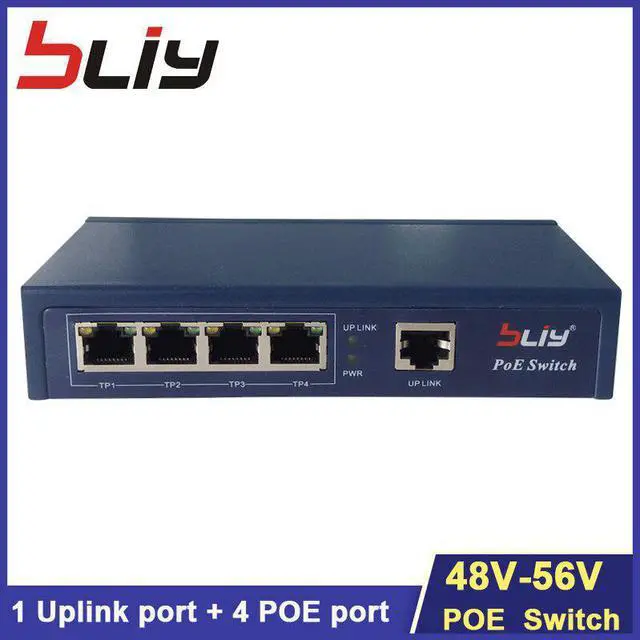

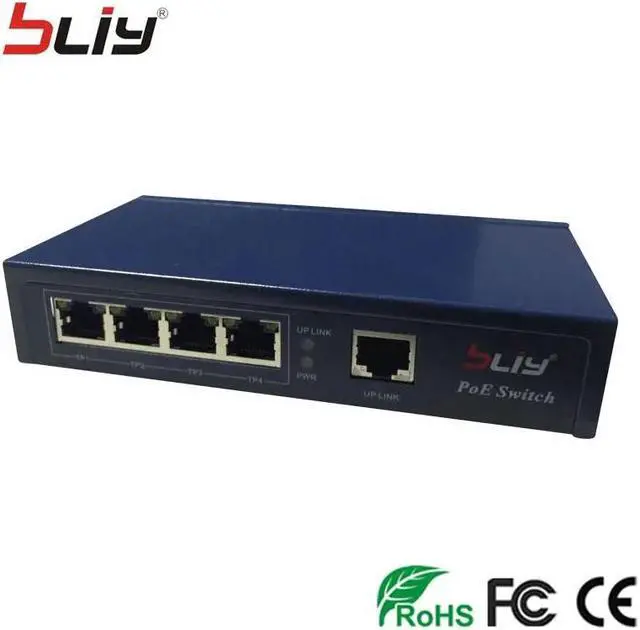

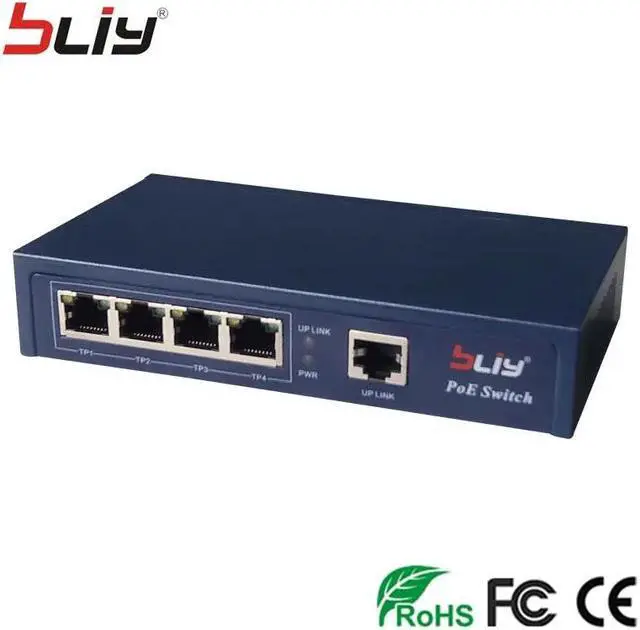

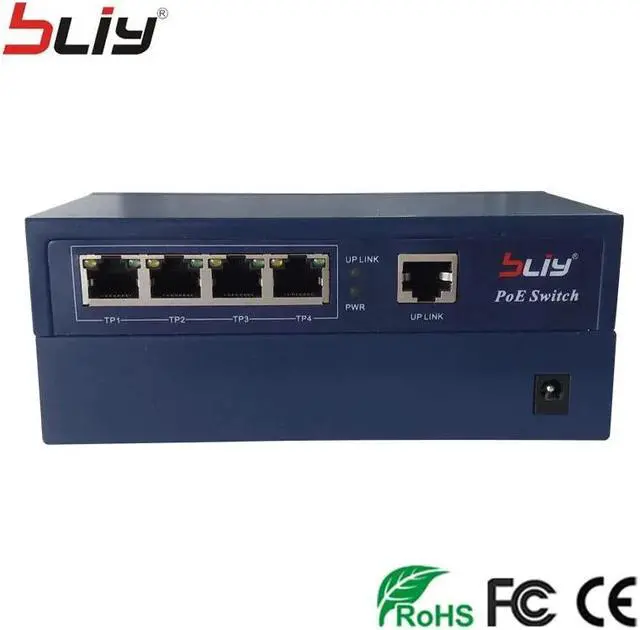

100Mbps 5 Port 48v POE Switch Outdoor 4 RJ45 Port 1 Uplink Oem Smart Pover Over Ethernet Network Poe Module fiber Switch

100Mbps 5 Port 48v POE Passive Switch Outdoor 4 RJ45 Port 1 Uplink Oem Smart Pover Over Ethernet Network Poe Switch SFP Module

Features:

Ø 4*100Mbps POE ports, 1*100Mbps uplink ports

Ø Support 10/100M speed rate, MDI/MDIX and half/full-duplex and auto-negotiation

Ø Each port has complete LED indicator as power indicator, POE indicator, LINK/ACT

Ø VLAN DIP; and 250M long distance transmission

Ø Support IEEE802.d Spanning Tree to make network easier

Ø Support high performance QoS function on each port

Ø Support broadcast storm control

Ø Support 100-240V wide voltage input

Ø Support IEEE802.3x Flow control and Back pressure control

Ø Require no configuration and will instantly operate as soon as you power it up

Ø Default with end-span (1/2+, 3/6-) power supply, Mid-span(4/5+, 7/8-) optional

Ø All port support wire-speed forwarding, 64-1518 Frame can reach wire speed

Ø Support 4K port lightning protection

Ø Support POE power supply, support IEEE802.3af and IEEE802.3at, each port can provide up to 30W power supply

Standards

IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3af

IEEE802.3q VLAN

IEEE802.3at

IEEE802.3x Flow control

IEEE802.3d Spanning Tree

IEEE802.3p QoS

Certifications

CCC, CE, FCC, RoHS

Ethernet Port

Ø Connector: RJ45

Ø Data Rate: 10/100M adaptive

Ø Distance: 100m

Ø UTP Type: UTP-5E or higher level

POE Port

Ø Power supply: end span

Ø Battery core: 1/2+, 3/6-

Ø POE port characteristics: 15.4/30W

Ø POE total power: 65W

Performance

Ø Processing Type: Store and Forward

Power
