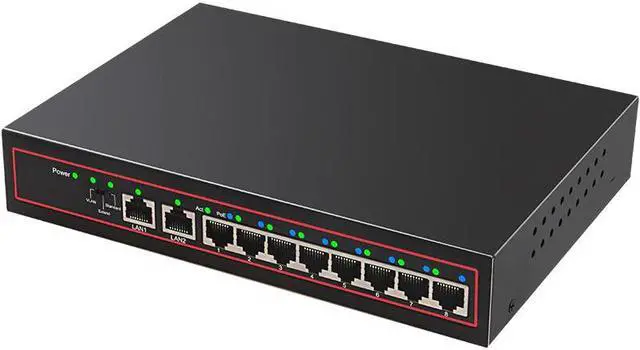

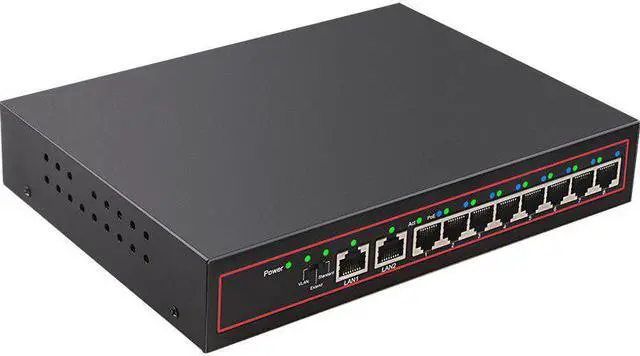

10/100M 52V standard 10 ports RJ45 Vlan function POE Network lan HUB switch IP camera switcher

Features  1.Ten 10/100Mbps Power Over Ethernet Ports  2.1-10 Port: 10/100M auto sensing RJ45 port  3.Max. 30W for each PSE/PoE Port (Port 1~8)  4.Support long transmission distance at 250 meters   5.Switch Mode:      a.Mode 1(Standard): Port 1~10: 10/100M auto-sensing @ 100 meters     b.Mode 2(Extend): Port 1~8: 10M @ 250 meters; Port 9~10: 100M @ 100 meters     c.Mode 3(VLAN): Port 1~8: 100M @ 100 meters; Port 9~10: 100M @ 100 meters; Ports   6.  1 to 8 will be isolated from each other, but will still be able to communicate with uplink port 9 and 10. 7.  Auto-detect full/half-duplex, MDI/MDI-X 8.  IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex 9.  Store and forward 10. Fanless design 11. Rugged enclosure

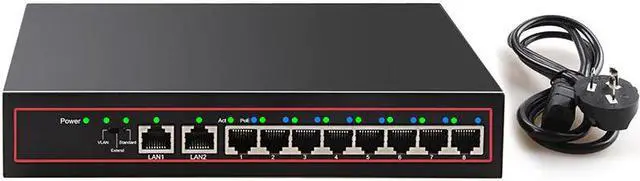

Industry Standards IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Ports 10 Performance Bandwidth 1.6G Buffer Size 1M MAC Size 1K Compatible Networks 10/100 Mbps Flow Control Full duplex flow control Switching Architecture Store-and-Forward Connector(s) Connector Type(s) 10 x 10/100M RJ45 Ports Port 1~8: IEEE 802.3AF/AT PoE port Software OS Compatibility OS Independent; No additional drivers  or software required Indicators LED Indicators 1 Power (Green) 1 Extend (Green) 1 VLAN (Green) 8 PoE Status (Blue) 10 Link/Activity (Green) Power Input Voltage 52V DC Power Source DC Adapter Included Environmental Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Physical  Characteristics Product Height 29mm Product Length 190 mm Product Width 92 mm Product Weight 398.9 g Color Black Enclosure Type Steel Package Included in Package 1 10 Port PoE Switch 1 Power Adapter
