5 Port 10/100Mbps LAN Hub Desktop Ethernet Network Switch 10/100 Mbps LAN Hub Adapter Full or Half duplex Exchange

10/100 Mbps 5 Ports US/EU Plug Fast Ethernet Network Switch Hub Splitter Adapter

Specifications:

Provide five 10/100M adaptive network ports.

Dynamic LED indicators provide simple working status prompts and troubleshooting.

Support plug and play, automatic port flip (auto MDI / MDIX).

Support full duplex flow control and back pressure half duplex flow control.

Support MAC address self-learning and update function.

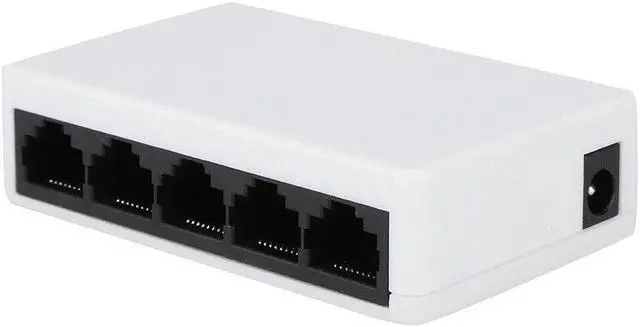

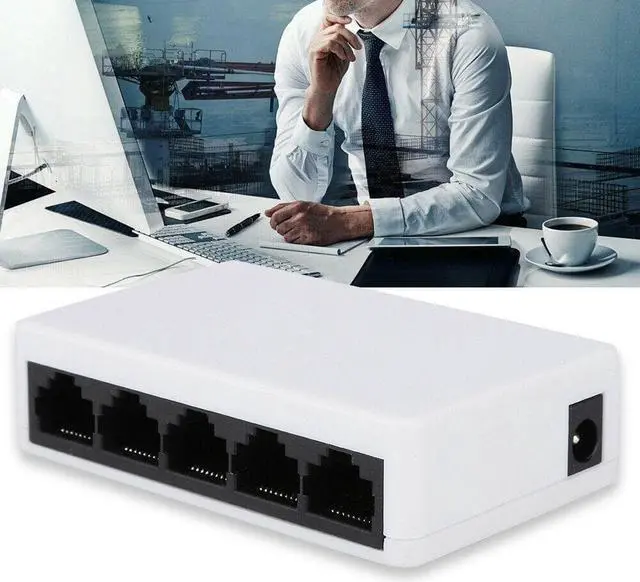

This network switch hub features desktop plastic shell type and highly integrated design.

It is designed with external power adapter and low power consumption.

Item Name: Network Switch Hub

Material: ABS

10Mbps: 14880pps

100Mbps: 148800pps

Working Environment:

Working Temperature: 0 Degree Celsius to 40 Degree Celsius

Storage Temperature: -40 Degree Celsius to 70 Degree Celsius

Working Humidity: 10% to 90% RH, Non Condensate

Storage Humidity: 5% to 90% RH, Non Condensing

Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x

Protocol: CSMA/CD

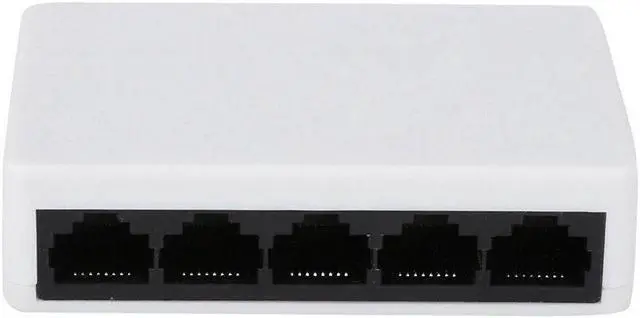

Ports: 5 10/100M Adaptive Network Ports

For MAC Address Table: Support MAC Address Self-learning and Update.

Support Network Type:

10Base-T: CAT3, CAT4 or CAT 5 unshielded twisted pair cable ups to 100 meters. EIA/TIA-568 100 ohm shielded twisted pair (STP) ups to 100 meters.

100Base-TX: CAT5 unshielded twisted pair cable, maximum 100m EIA/TIA-568 100ohm shielded twisted pair (STP), maximum 100m

Indicator Light: Power, Status Indicator

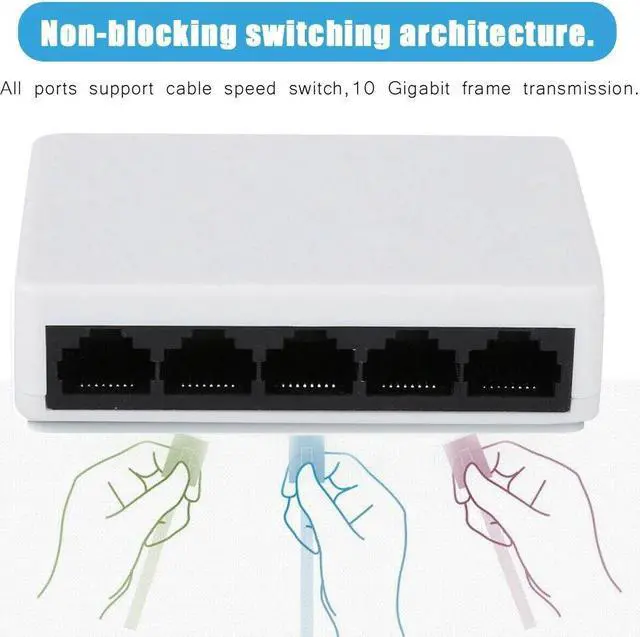

Switching: Store and Forward, Wire-speed Filtering and Forwarding

Power Supply: External Power Adapter

Plug: US Plug/EU Plug (Optional)

Features: 5 Ports, 10/100 Mbps, Network Switch
