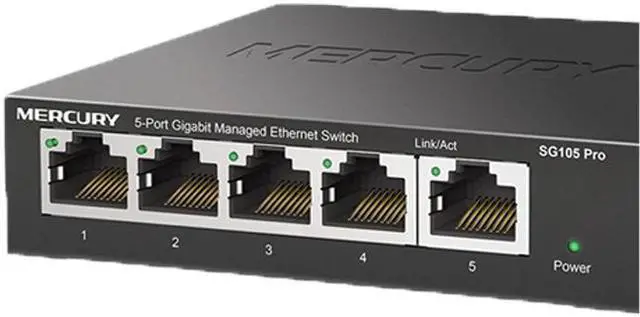

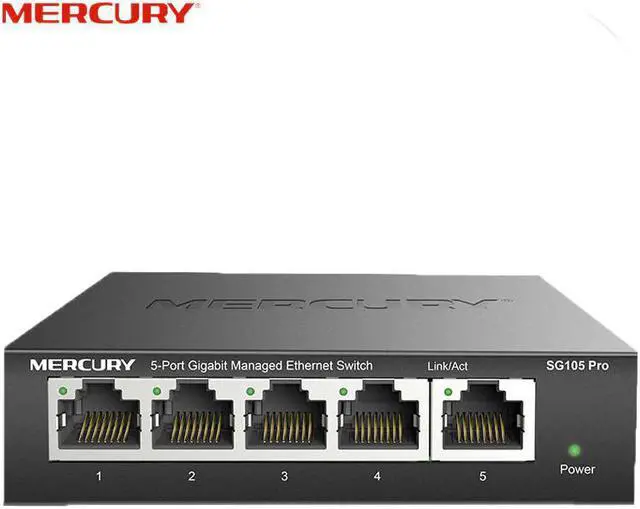

SG105 Pro 5 Port RJ45 Gigabit PoE Switch 10/100/1000Mbps Network Switch For IP Camera AP monitoring Up 30W per

Meet IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards

5 10 / 100 / 1000m adaptive RJ45 ports, supporting automatic port flipping (auto MDI / mdix)

All five ports support 10m full / half duplex, 100m full / half duplex and 1000m full duplex

Support the opening and disable of control port / rate selection / flow control management, meet the demand of network resource division, and realize differential management

IGMP V1 / V2 / V3 multicast protocol supports IGMP snooping to meet the access requirements of multi terminal HD video monitoring and video conference

The port aggregation function can effectively increase the link bandwidth and improve the reliability of the link to meet the requirements of high bandwidth and high reliability

Support the management of MTU VLAN and port VLAN based on IEEE 802.1Q protocol. By dividing VLAN, the internal network can be divided into multiple LANs to meet the division and management requirements of network resources, effectively control the internal network broadcast, enhance the network security and the ability to adapt to multi service applications

Support traffic statistics, port mirror, cable detection, loop detection and other port monitoring functions to achieve network monitoring

Support port based, 802.1p, DSCP and other priority management modes to ensure priority processing of key business data

Support port bandwidth control, broadcast storm suppression, effectively improve the overall network performance

Support automatic negotiation function, automatically adjust transmission mode and transmission rate

Support the management of local intelligent network management switch through web interface

Structural design of desktop steel shell
