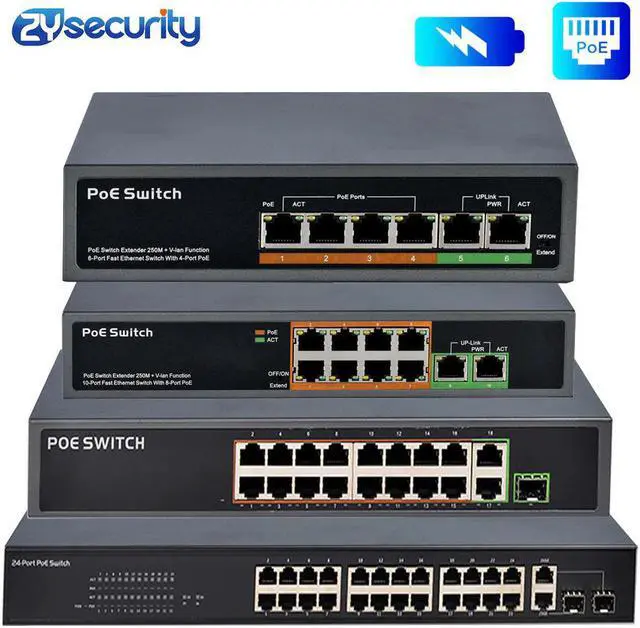

4 8 16 24 Port Network Ethernet Poe Switch Gigabit 48V Wireless AP 250M IEEE 802.3 af/at Power over Ethernet for PoE Camera IP

1) 4CH 65W: 4x 10/100Mbps PoE Port + 2x 10/100Mbps Uplink Port

Key Features

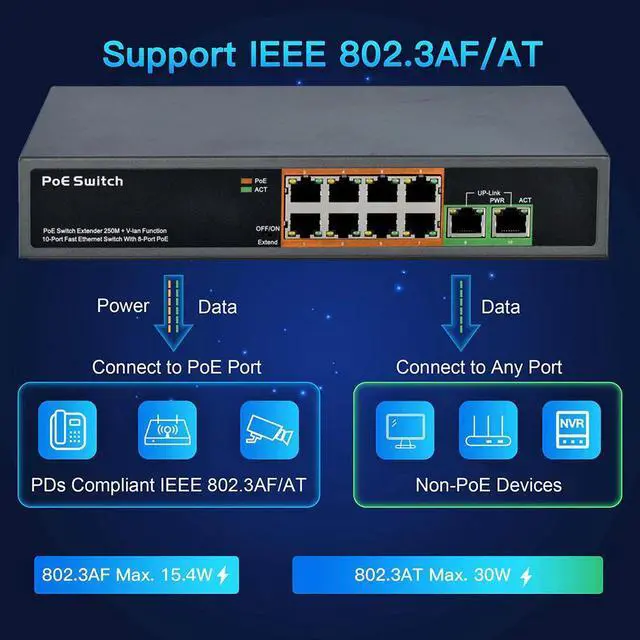

IEEE 802.3af/at PoE  compliant to simplify deployment and installation

Backbound Bandwidth: 1.6 Gbps

Auto-detection and protection of non-standard PoE devices

IEEE 802.3x flow control protects against lost packets for reliable data transmission, - IEEE802.3at/af Standard

PoE Pin:1,2+/3,6-

Simple Plug and Play installation

Normal:10/100Mbps 100meter

Switch Extend ,1-4Port V-Lan on; 5E cat Cable Distance 250M;Data Rate 10Mbps

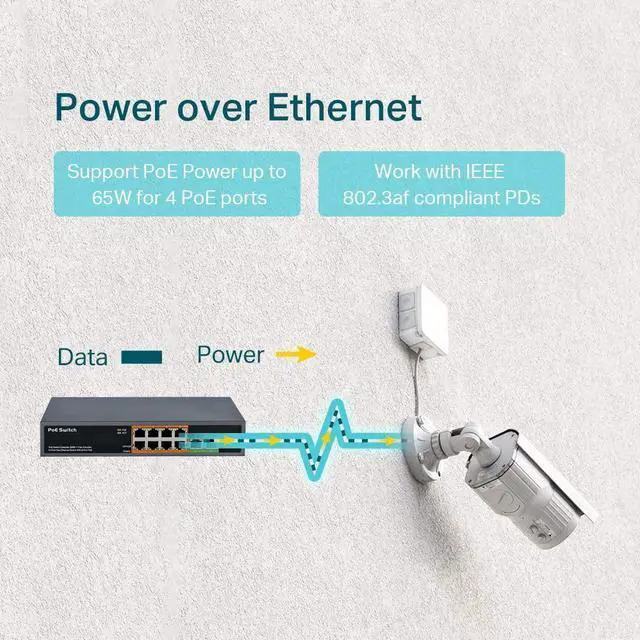

Total PoE power budget: 65W, up to 30W per port

Compact Design Fits Easily in VLAN Access

Easy installation and maintenance

Size: 185*124*44mm

Specifications:

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet

PoE Spec

PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity

PoE over current protection

PoE circuit sorting protection

PoE Power Output: Per Port 52V DC, Max. 30 watts

IEEE 802.3af/at)

Power Budget: Max. 65W

Power Pin Assignment: 1/2(+), 3/6(-)

Transmission Media

10 BaseT Cat 3,4,5 UTP/STP

100M BaseTx CAT 5 UTP/STP

Filtering/Forwarding Rates

100Mbps port-148,000pps

10Mbps port-14,880pps

LED Indicators

Per Port: Link/Act((Green),

PoE Port:PoE in use(Orange)

Power:PWR(Orange)

Network Interface

4 x 10/100Mbps RJ-45 PoE 1~4 Ports

2x 10/100Mbps RJ-45 Uplink 5~6 Ports

Extend/ON

Power Input

LED
