OLT ONU 8 PON port OLT G support L3 Router/Switch 8 SFP 1.25G SC multimode Open software Open software WEB management

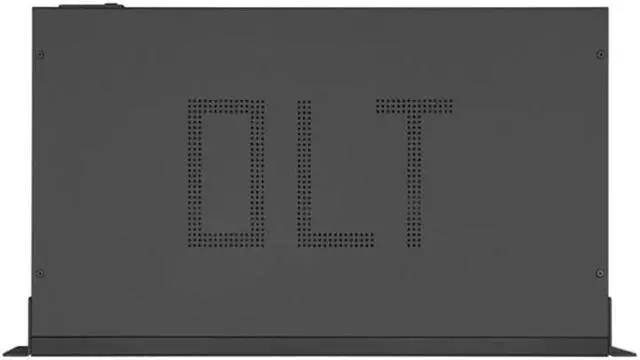

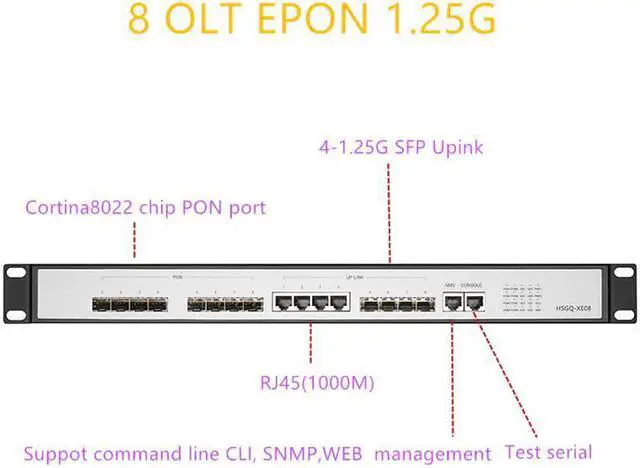

E08 OLT 8 PON port OLT G support L3 Router/Switch

E08 series is a high integrated, medium capacity box ERON OLT switching equipment developed by Hongsheng Guang Shenzhen for the operator access and enterprise park network. The product follows IEEE802.3ah technical standard and meets the requirements of OLT equipment in "YD/T 1475-2006 access network technical requirements". It has good openness, large capacity, high reliability and complete software functions. It is widely used in the construction of network coverage, special network construction, enterprise network park access and other access network construction.

Advantage:

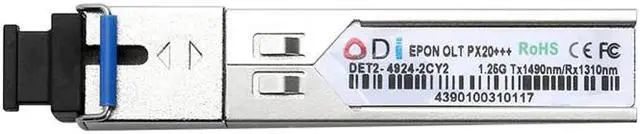

1:PX20+++(4DB)for OLT

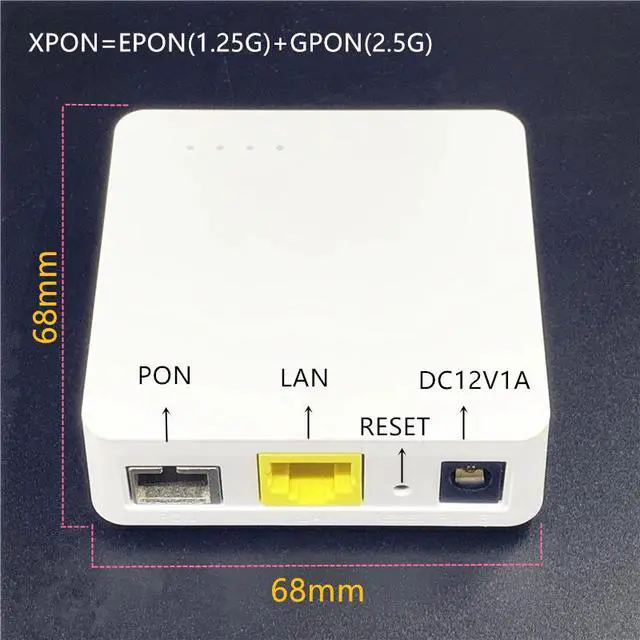

2:XPON ONU(1.25G)

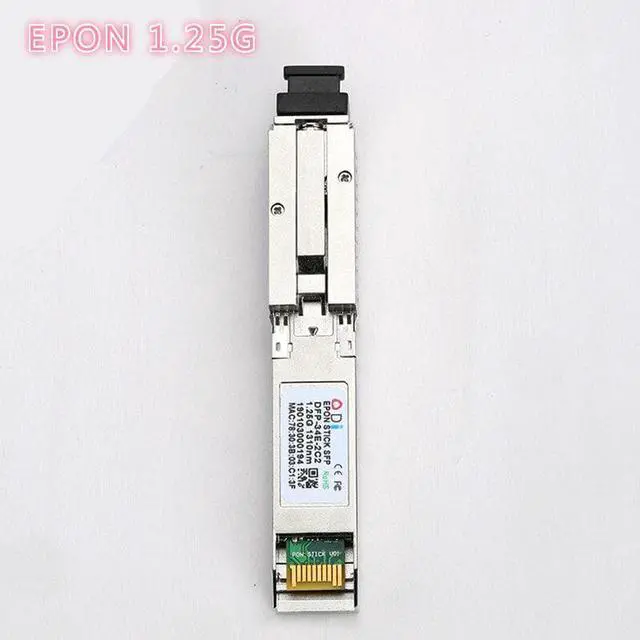

3:SPF ONU stick(1.25G)

4:OLT(8 PON1.25G)

:OLT follows the technical standard of IEEE802.3ah and China telecom. (YD/T 1475-2006)

l Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.

l Uplink: support electrical and optical modules, can be flexibly configured according to different networking.

l Dimension: 1U cassette save space, low power consumption and save cost.

l Optical Line Protection: support automatically switch when the line is debug.

l High reliability: supports dual power supply(Default single power supply).

Product Description

Model

E08

DDR

512M

FLASH

16M

Size (L*W*H)

Product size:442mm×260mm×44mm

Package size:520mm×372mm×87mm

Weight

5kg

Uplink

QTY

8

Copper

4*10/100/1000Mauto-negotiable,RJ45

SFP

4 SFP slots

PON

QTY

4

PhysicalInterface

4 SFP slots
