4K HDMI Matrix Switch 4x2, Video Switcher Splitter 4 in 2 Out, Optical and LR Audio Output with IR Remote Controller, Support 4K@60Hz 3D 18.5Gbps x 3 Data Rate, HDMI 2.0b, HDCP 2.2

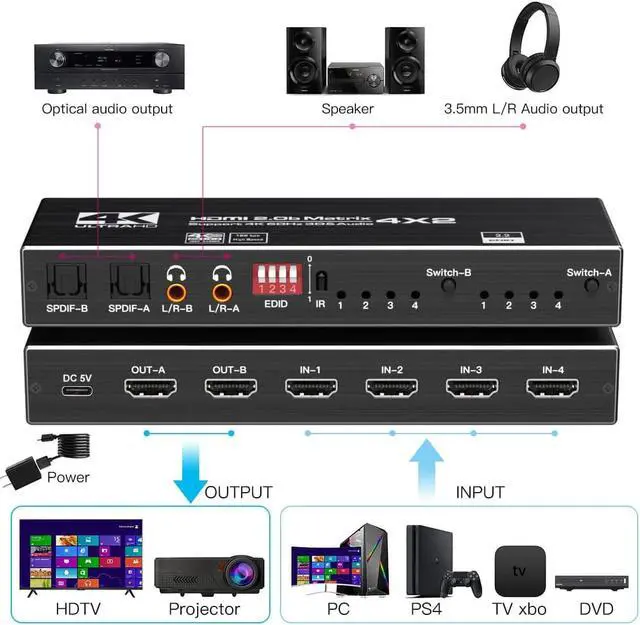

- 4 IN 2 OUT matrix 4x2 HDMI matrix can connect four HDMI signal sources to two monitor screens. It can easily switch and distribute the signal sources. It can also use SPDIF optical fiber or 3.5mm stereo headphone output Extract HDMI input audio signal. With infrared remote control and two optical fiber audio cables, it is suitable for various entertainment and work occasions.
- 4K@60Hz Ultra HD Resolution Excellent video quality, resolution up to 4K@60HZ, RGB4:4:4, 3D, backward compatible with multiple resolutions, support 18.5Gbps data rate, and tmds clock Up to 600Mhz. Support dark 8/10/12/24bit. 4K@60Hz gives you an ultra-high-definition picture quality experience, the image display is more delicate and lifelike, and the colors are brighter and moving.
- HDMI Audio Extraction and EDID Support LPCM / Dobly / DTS 5.1 channels and intelligent EDID management. With two 3.5mm L/R ports and two optical Toslink audio outputs, it supports HDMI audio output, while 3.5mm headphone jac
+
+
Overview
Specs
Reviews
4x2 HDMI Martrix Switch
The 4 in 2 out HDMI matrix switch allows four HDMI devices to be easily switched or split into two HDMI compatible monitors or projectors. The device is also expanded with 2 3.55mmL/R audio output ports and 2 optical audio outputs Port (we give two optical audio cables, you dont need to purchase additional optical audio cables). Suitable for home theaters, villas, conference rooms, shopping centers, TV walls, schools and corporate training environments, etc.
Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio
Specifications
- Product Type:HDMI Matrix Switch 4x2.
- Interface Type: 4 HDMI in, 2 HDMI out
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.175kg

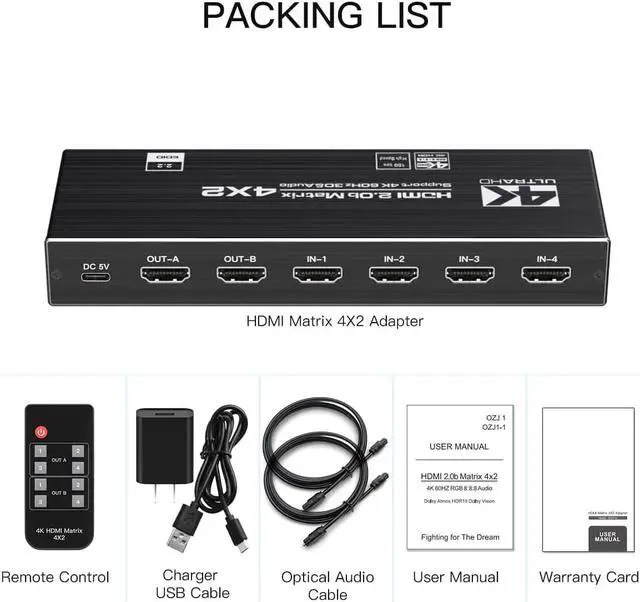

Packing list
1x HDMI Matrix Switch 4X2
1x 5V power adapter
1x Infrared Remote Control
2x Optical Audio Cables
1x User Manual
1x Warranty Card
Remind

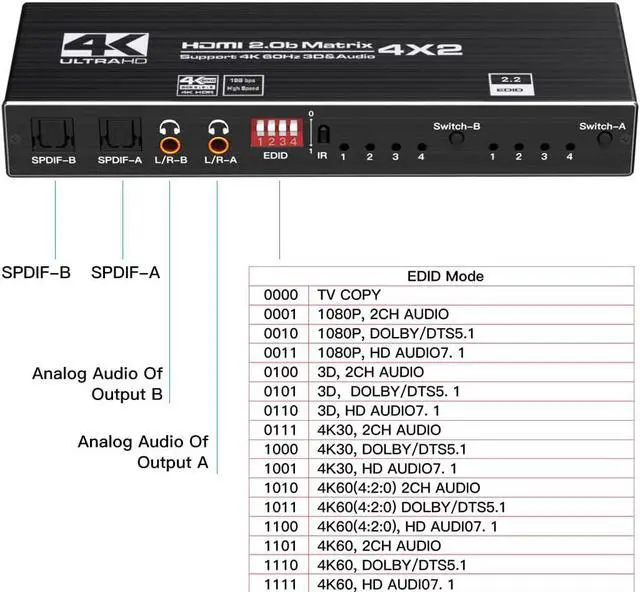

1. EDID the dial switch to dial downward is 1, dial upward is 0.
2. For the EDID setting, it will for Output A. So when you two display needs to be EDID setting, Please set at Right EDID Mode that both Display will shows right.
3. After you had set the EDID, Please restart your HDMI Matrix Switch.
