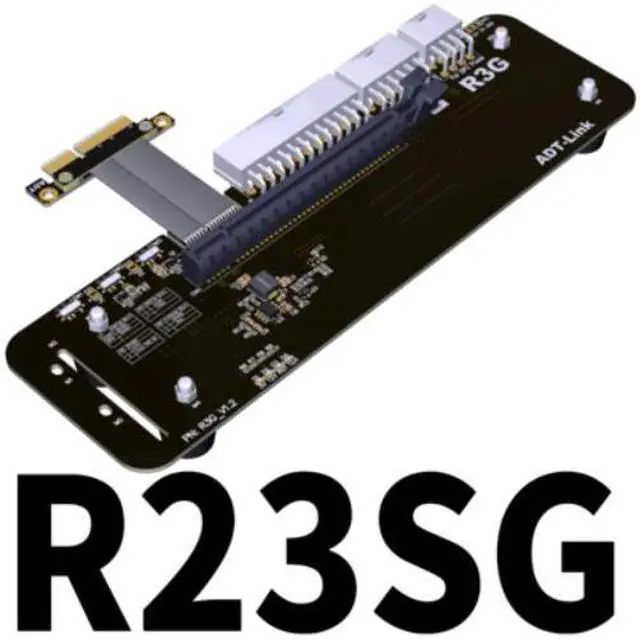

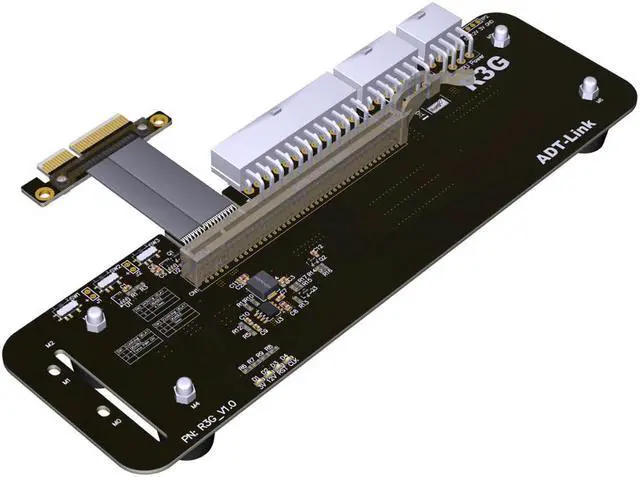

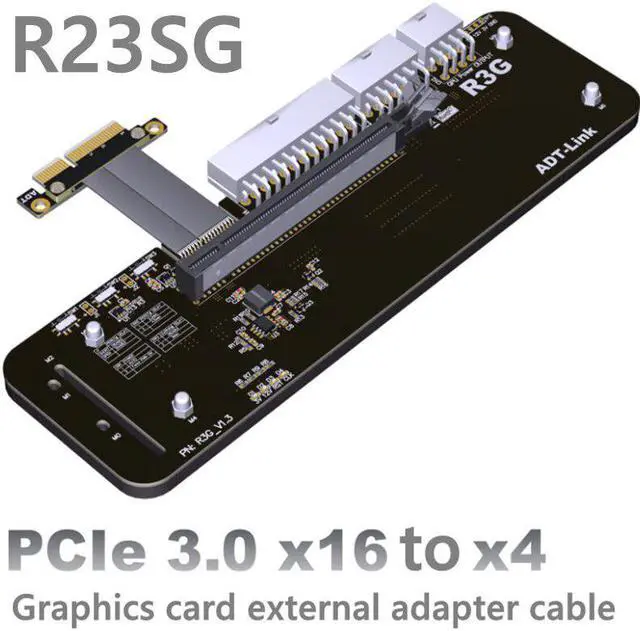

PCIe x16 to PCie x4 extension adapter cable 16x PCI-Express cables For graphics card external

ADT factory direct sales, excellent product performance, super good reputation, 100% full inspection, power-on test and delivery

Company brand: ADT R3G

Product model R23SG (R3G series)

Product name: Desktop graphics card external adapter board extension cable

Wire length: 25cm; 50cm

Power supply description: Support power supply DA-2 series (D220P-01/ADP-220AB) 12V/18A/220W power supply, or standard ATX power supply above 500W, the power supply needs to be prepared by the buyer

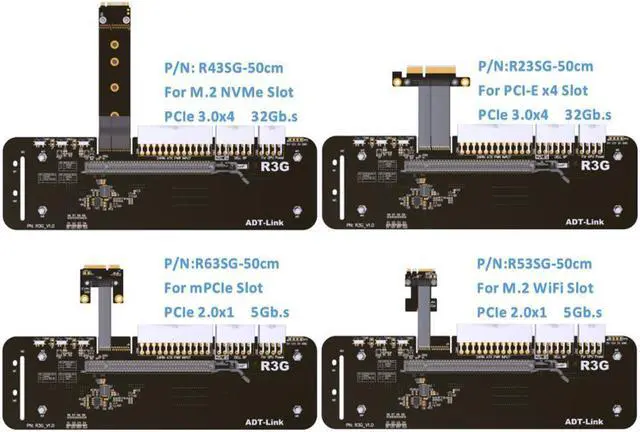

Model description: There are 4 types according to different interfaces, namely M.2 NVMe (M key); M.2 WiFi (AE key); mini PCI-E; PCI-E x4. The bandwidth and speed of the product models are as shown in the figure below. Description

Product advantages:

One. Wire advantage, using German patent imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 8G/bps stable transfer

two. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable

three. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold-plated content of the gold finger is sufficient, and the gold-plated foot has good conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.

4. The graphics card connector has a buckle, and the PCIe baffle is fastened with hexagonal copper posts and thumb screws. The structure is tight and the graphics card will not shake.

Purchase notes:

Product Image:
