3.0 Cable PC-e 16X to x16 adapter Cable graphics video cards extension 90 Degree Angled design for ITX motherboard chassis

Product name:  x16 to x16 extension cable for ITX

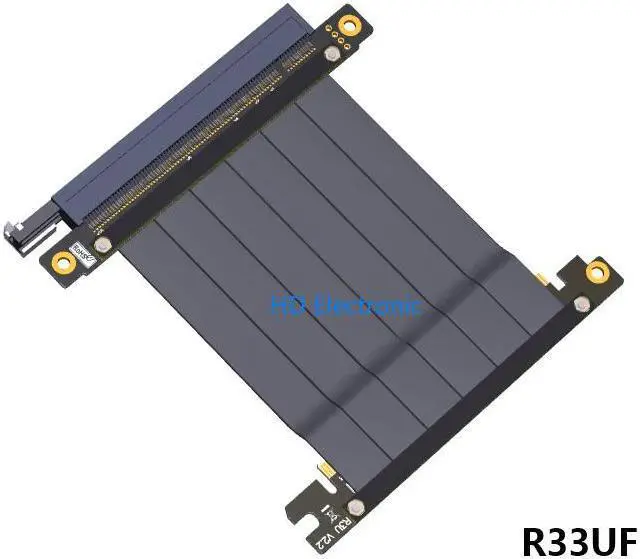

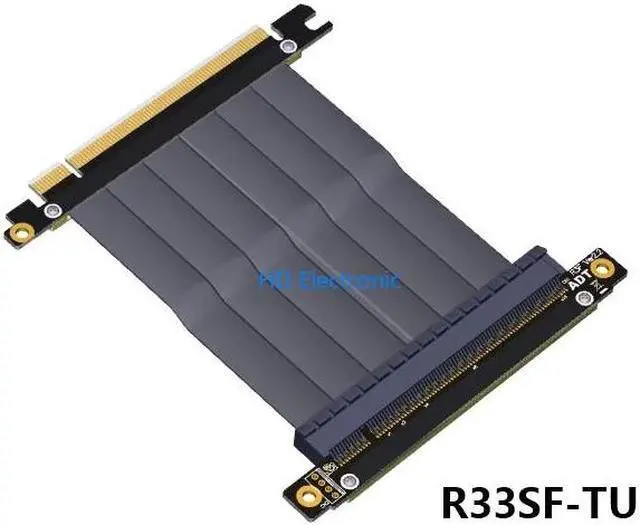

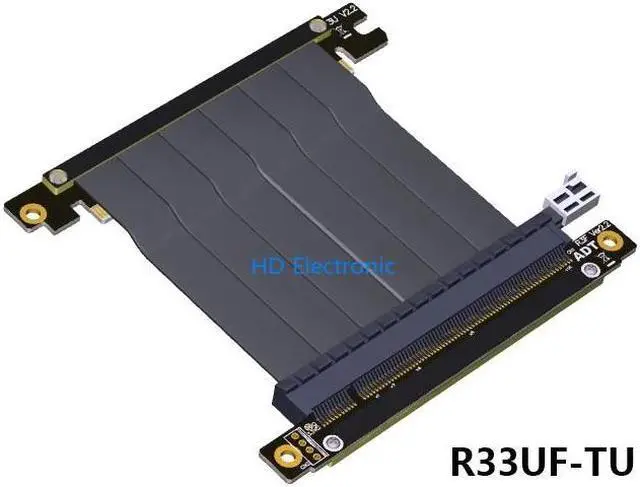

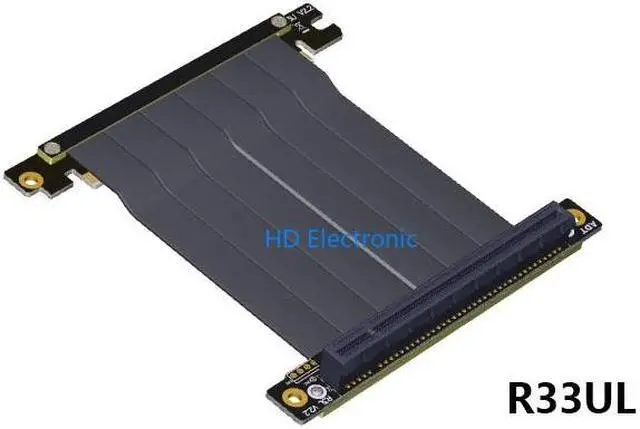

Product model: R33UF-TU , R33SF-TU , R33UL , R33UF

Transfer speed: 3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: x16 graphics video card to x16 slot extension cable for ITX mainboard housing

Product advantage:

1. Wire advantage, using German patented imported wire, using Taiwan imported High quality connector, high frequency support 3.0 stable transfer.

2. Cable length advantage, from 5 cm to 1 m, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

Compatibility list:

ITX Chassis model

Guru zs-a4 R33UL corner 18cm

Guru zs-a4m R33UL corner 18.5cm

God is not A4 R33UF 24cm
