    EXVIST 4G LTE Industrial Mini PCIe to USB Adapter Industrial Dongle W/SIM Card Slot Compatible W/WWAN/LTE 3G/4G Mini PCIe Module Like Quectel EC25-AF EG25-G etc. for Quick Network Connection

    Be the first to review this product...
    • Compatility - It's compatible with 4G LTE Mini PCIe modules from brands, like Quectel EC25-AF EG25-G Mini PCIe etc.
    • Application - It can be widely used for M2M IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage etc.
    • Reliability - It adopts industrial electric circuit design, DC-DC power chip and two external tantalum capacitors to make sure the module can always be working fine and never offline even under severe environment.
    • Principle - The interface definition of Mini PCIe is USB signal and 3.6V, the input voltage 5V by USB will be converted into 3.6V via DC-DC power chip to power on module and UIM/SIM card.

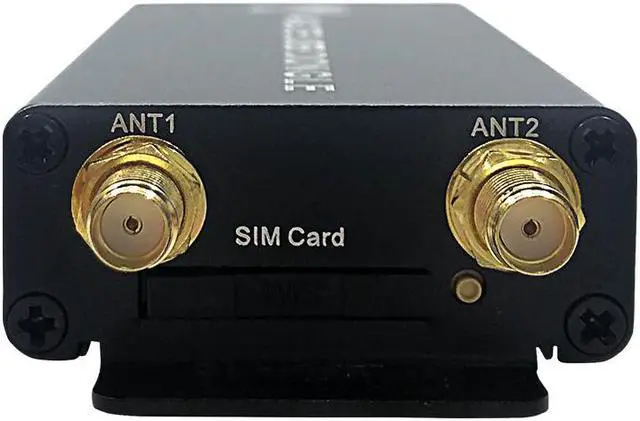

    • Interfaces - There are Mini PCIe connector for connecting 4G LTE module, USB 2.0 (Type-C 3.1)connector, SIM card slot(Push-Push Type) which doesn't support hot-plugging.
    +
    +
    Overview
    Specs
    Reviews

    Advantages

    • This adapter's design is based on indutrial electric circuit, DC-DC power chip and two external tantalum capacitors.
    • It's well compatible with 4G LTE modules like HUAWEI, ZTE, AIRCARD, LONGSUNG, YUGA, QUECTEL, MEIG, SIMCOM, SAMSUNG, HUAYU, DTT etc.
    • It's equipped with Mini PCIe factor, USB 2.0(Type-C 3.1) connector and SIM card slot(Push-Push Type).
    • With DC-DC power chip equipped, the voltage source will be stable to power on module and UIM/SIM card continuously.
    • It also adopts high current as it is another key factor to make sure module is always online even under severe environment.

    Specificiation

    Basics

    • Model: 4GD
    • Dimension:
    • Connector: Type-C
    • The design of Mini PCIe is compliant with industrial criteria.
    • Applicable for half & full height module(WWAN/3G/4G Module).

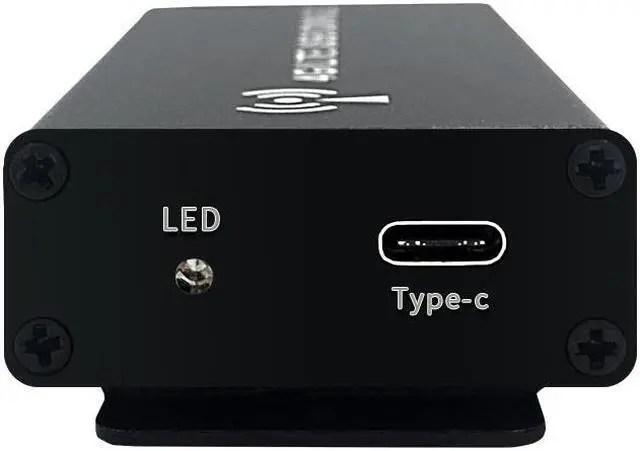

    • LED indicator will be always on when it is working.
    • Pure hardware desgin, no driver needed. But corresponding drivers for modules will be required.

    Package Contents

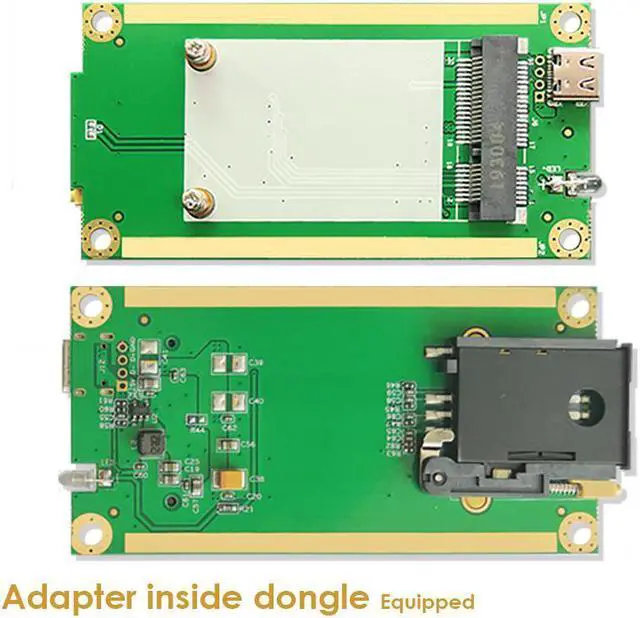

    • 1x 4G Dongle(Built-in Mini PCIe to USB Adapter)
    • 2x 4G Antennas
    • 1x Type-C 3.1 to USB Cable
