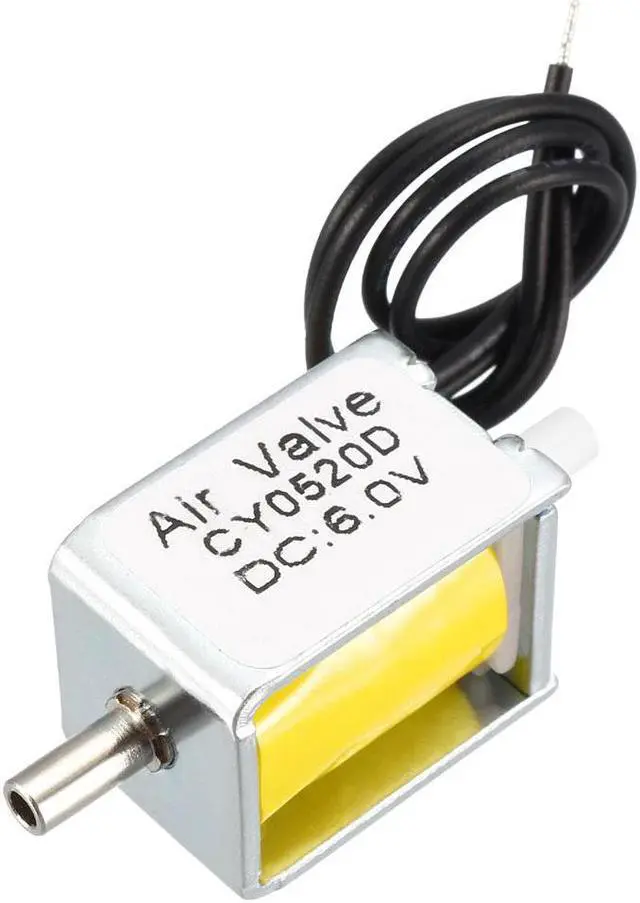

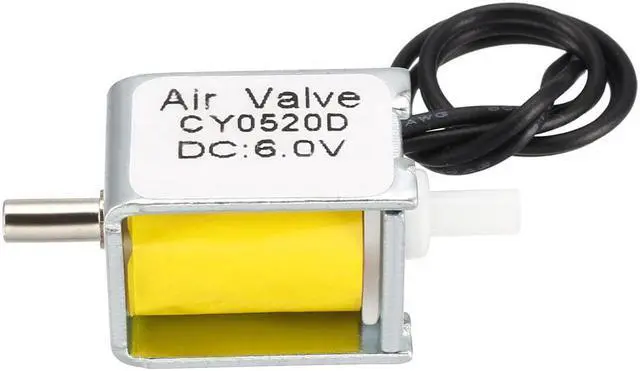

Miniature Solenoid Valve 2 Way Normally Closed DC6V 0.38A Air Solenoid Valve, 2pcs
- Rated voltage: DC 6V ; Rated Current: 0.38A ; Type: Normally Closed;Port Outer DIameter: 3mm . Power off : way closed ; Power on : air can pass.
+
+
Overview
Specs
Reviews
DescriptionKEY_TAB
It has low vibration and low power consumption.Reliable, compact, and simple to install.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. Its normal phenomenon.
KEY_TAB
KEY_TAB
Features
Rated voltage: DC 6V
Rated Current: 0.38A
Rated Power: 2W
Type: Normally Closed
Port Outer DIameter: 3mm
Wire Length: 11cm / 4.3inch
Air pressure range0-350mmHg

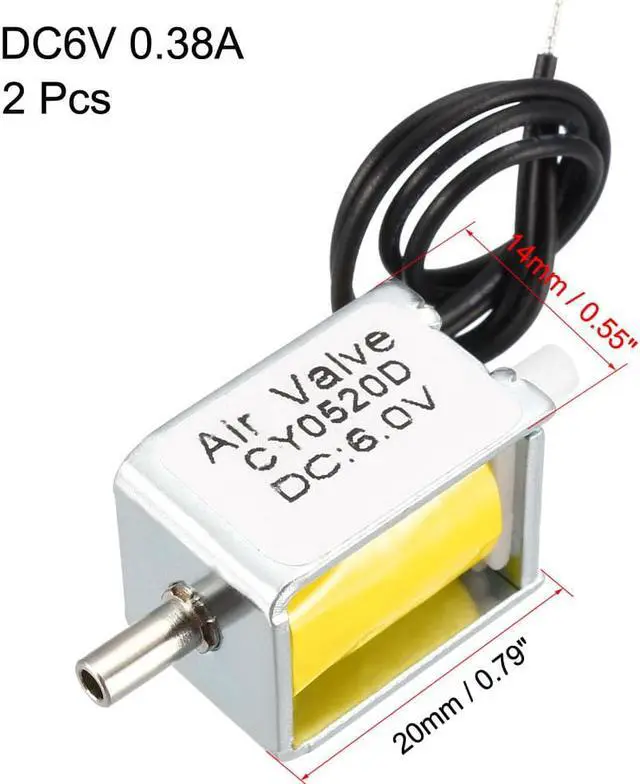

Total Size: 20 x 14 x 34mm / 0.79 x 0.55 x 1.34inch(L*W*H)
KEY_TAB
Solenoid operating instructions:
Power off : way closed ; Power on : air can pass.

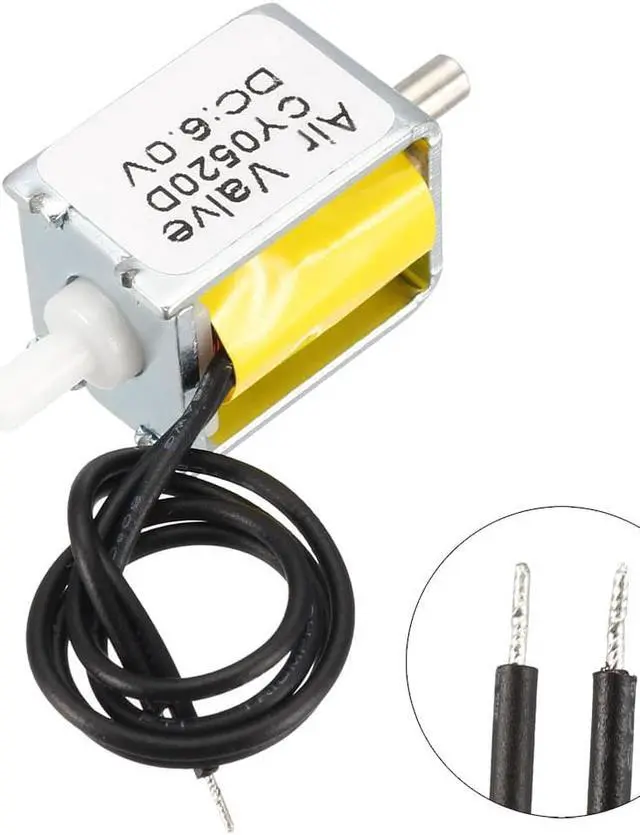

Note : Wires are not divided for +/- connecting , both can do.
KEY_TAB
KEY_TAB
Package Content:
2 x Solenoid Valve
