M8 x 1.25mm Metric Left Hand Tap and Die Set, HSS Machine Thread Screw Tap with Alloy Tool Steel Round Threading Die

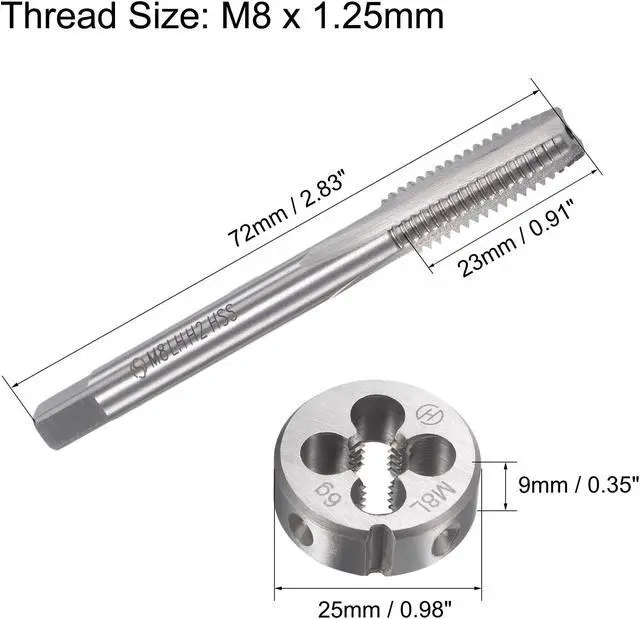

Specifications

: Machine
Tap: Thread
Size: M8 x 1.25 mm;
Thread Style: Left Hand;
Thread Length: 23mm / 0.91";
Overall Length: 72mm / 2.83"; Square
Shank Size: 5mm / 0.2";
Material: High Speed Steel (HSS);
Accuracy: H2Round

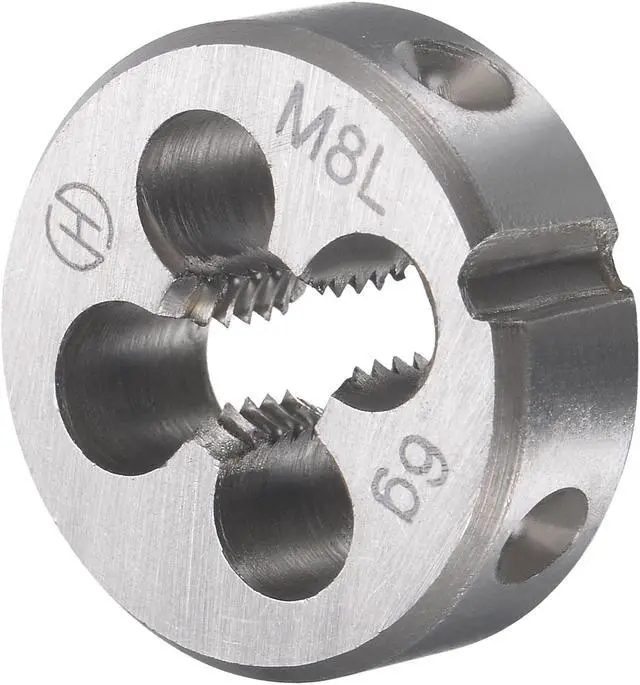

Die: Thread
Size: M8 x 1.25 mm;
Thread Style: Left Hand;
Outside Diameter (OD): 25mm / 0.98";
Thickness: 9mm / 0.35", Material: Alloy Tool Steel (9CrSi);
Accuracy: 6GPackage
Included: 1 x Left Hand Tap and Die Set (1 x Machine Tap, 1 x

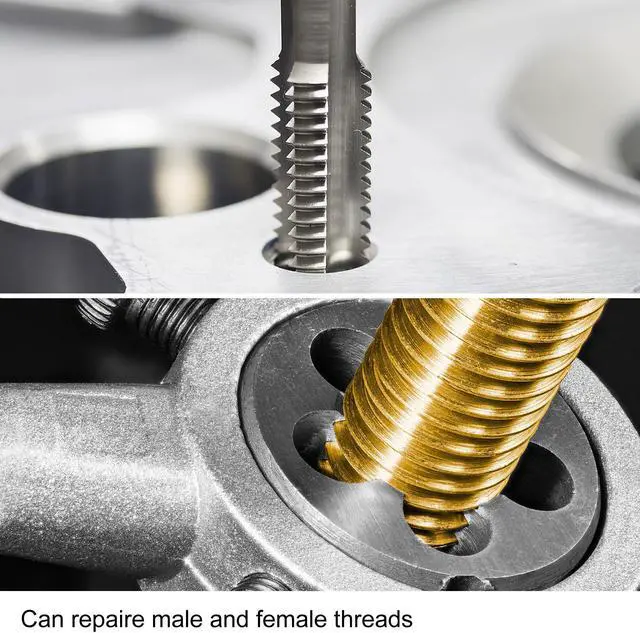

Round Die)Descriptions: 1. Tap and die set are suitable for making or repairing male and female threads, good for general purpose applications. Tap and die are both right hand thread. 2. Can be used to process through holes in maintenance and repair work. Great for drilling and tapping alloy steel, die steel, cast iron, ferrous and non-ferrous materials etc.. 3. High speed steel machine screw tap provides combination of hardness and toughness for wear resistance. Alloy tool steel round die features good abrasion resistance. Tap and die set are sharp and durable, and with clear threads to meet the processing requirements. 4. Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines. 5. Used with tapping oil can get high quality threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.
