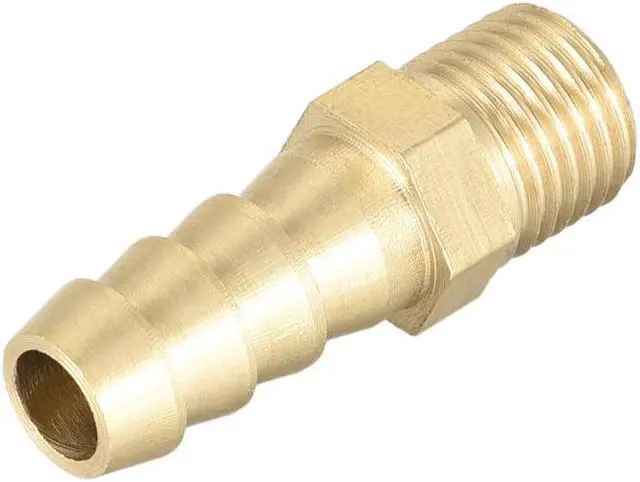

Brass Fitting Connector Metric M10x1 Male To Barb Hose ID 8mm 4pcs

Description:
1.One piece construction. Barbed edges provide positive connection.
2. Hose barb which connects flexible hose or tubing to pipes, one side is used to connect hoses while the other side is used to connect to metric female pipes.
3.The barbed stems create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).
4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
5.Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.

Note:KEY_TAB Before ordering, please confirm the right size!

Specification:
Product Name: Barb Hose Fitting
Material: Brass
Color: Gold Tone
Surface Treatment: Passivation

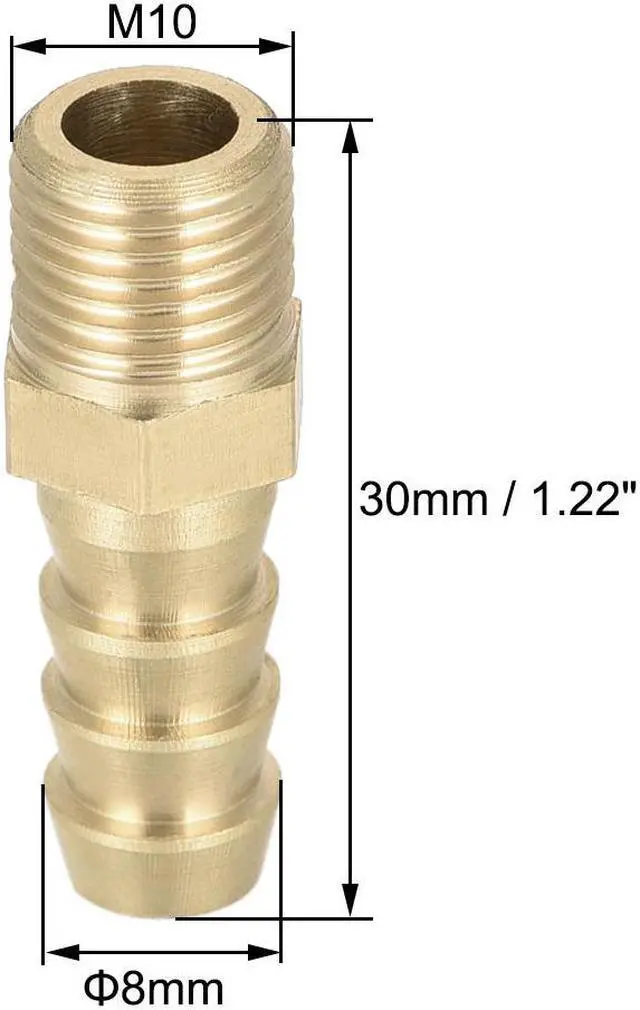

Size: 8mm Barb x M10*1 Male
Total Length: 30mm / 1.22"
Hex Width: 10mm / 0.39"
Barb Length(Approx): 17mm / 0.67"
Thread Length(Approx): 8mm / 0.31"

Package Content:

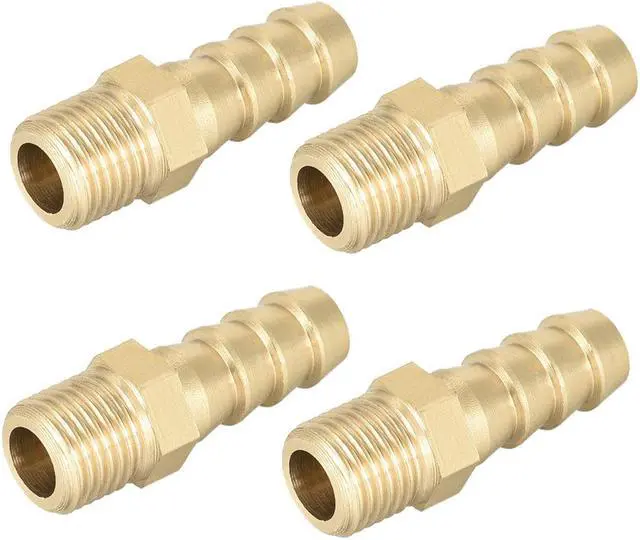

4 x Barb Hose Fitting
