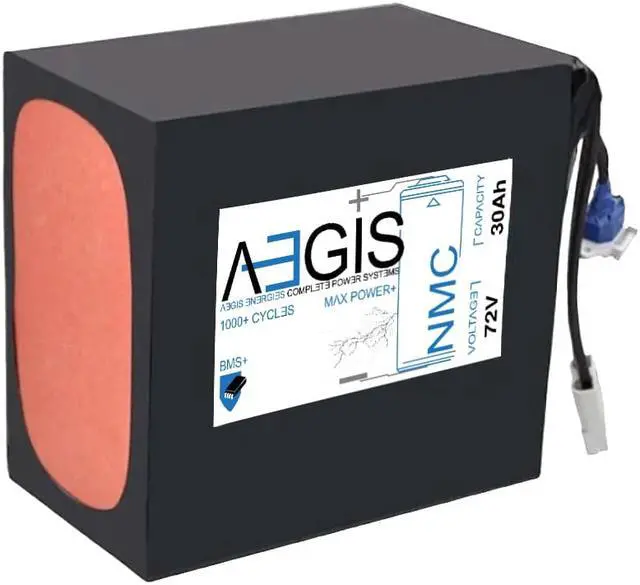

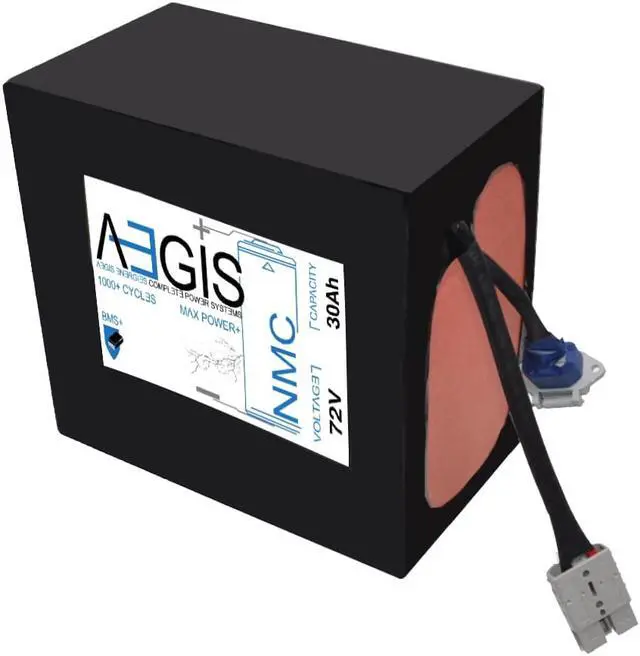

Aegis Battery 72V 30Ah NMC Li-Ion Battery + Charger is a state of the art rechargeable battery pack made w/18650 Li-Ion cylindrical cells. For ebikes, scooters, robots, solar & high energy products.

The Aegis 72V 30Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 72V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with an integrated Anderson Power Pole SMH connector making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

This battery is also available with a bundled PP35 Powerpole to C14 Male Connector or PP35 Powerpole to IEC 320 Female Connector free upon request.

Specifications
Battery Type PVC Pack
Battery Chemistry Lithium-Ion
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 72V
Capacity (Ah) 30Ah
Energy Stored (Wh) 2160 Watt-Hours
Weight 27.56 lbs. (12.50 kg)
Dimension (L x W x H) 246 mm x 230 mm x 140 mm
Cycle Life 1000+ cycles
Normal Charge Current 2.0 Amps
Maximum Continuous Charge Current 5.0 Amps
Nominal Continuous Discharge Current 15.0 Amps
Maximum Continuous Discharge Current 30.0 Amps
Maximum Pulse (Peak) Discharge Current (2 sec.) 60 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing

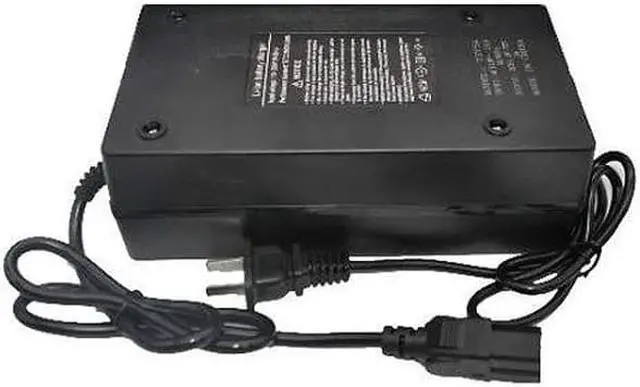

Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 84VDC
Current: 5A
Connector: IEC C14 (Female)
Model Number: CRG-07205P

NMC Advantage
- Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
- All-Aspect Solution with best overall balance of features
- Highest Specific Energy (150-220Wh/kg)
- Ideally Suited for EV and High Energy Consumption Applications
- Excellent Lifespan (1000-2000 Cycles Average)



Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life



Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid

Warranty: 5 years NMC Battery Warranty
30 Day Money Back Return | 2 Year Repair/Replace
3-5 Year Pro Rated Based on Remaining Capacity
Cancellation: Within 24 Hours ? No charge
Shipping: Standard within 2 business days
