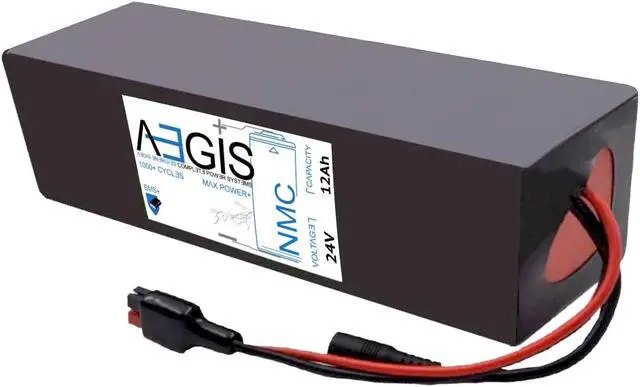

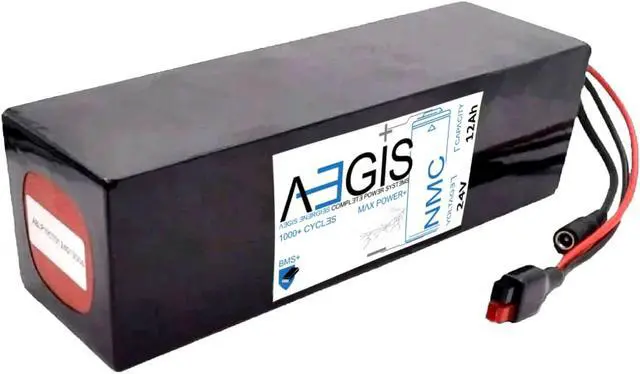

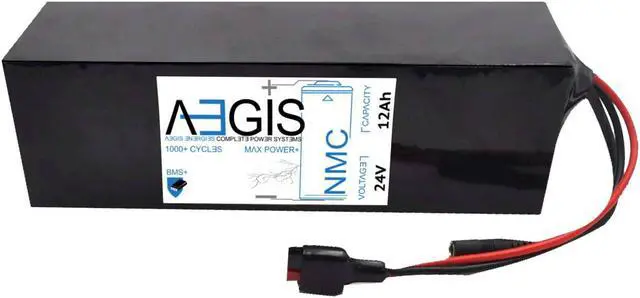

Aegis Battery 24V 12Ah Long Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap.

The Aegis Battery 24V 12Ah Long Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors allowing for easy compatibility. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

Specifications: Battery Type PVC Pack Battery Chemistry Lithium-Ion Cell Type/Assembly Method Cylindrical cells/welded Voltage (V) 24V Capacity (Ah) 12Ah Energy Stored (Wh) 288 Watt-Hours Weight 4.08 lbs. ( 1.85 kg) Dimension Metric (L x W x H) 235 mm x 70 mm x 70 mm Dimension Imperial (L x W x H) 9.3 in. x 2.8 in. x 2.8 in. Discharge Connector PP45 Red/Black Powerpole Charge Connector DC Barrel Plug Female Cycle Life 1000+ cycles Normal Charge Current 2.0 Amps Maximum Continuous Charge Current 6.0 Amps Nominal Continuous Discharge Current 6.0 Amps Maximum Continuous Discharge Current 12.0 Amps Maximum Pulse (Peak) Discharge Current (2 sec. ) 24.0 Amps Charge Temperature 0°C to 45°C Discharge Temperature -20°C to 60°C Operating Humidity 60±25%R. H Storage Humidity 60±25%R. H Automatic Battery Protection Module/System Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing Compatible AC-to-DC

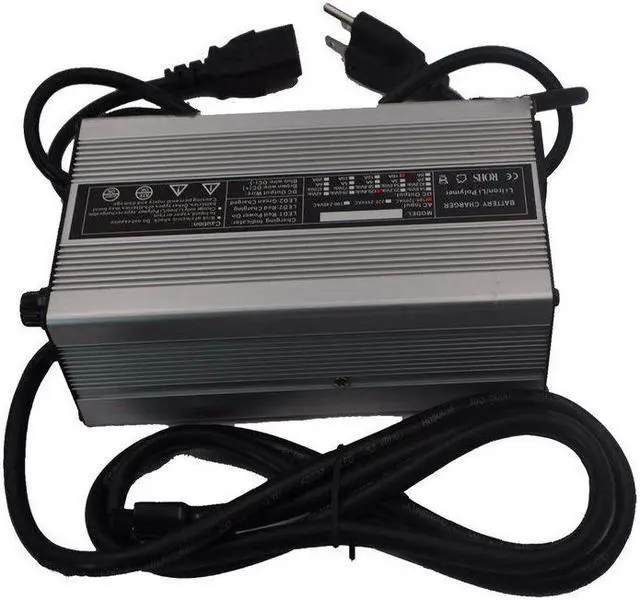

Charger Specifications: Input
Voltage: AC110V-240V, 50/60HZ
Output Voltage: 29.6VDC
Current: 3A
Connector: DC Plug
Model Number: CRG-02403P NMC Advantage - Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries - All-Aspect Solution with best overall balance of features - Highest Specific Energy (150-220Wh/kg) - Ideally Suited for EV and High Energy Consumption Applications - Excellent Lifespan (1000-2000 Cycles Average) Intelligent Technology - Battery Management System (BMS) Board as Standard - Every Battery has bespoke board matching its performance parameters - Comprehensively balances charging and discharging - Internal balancing circuitry and charger circuitry inside BMS - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection - Dramatically extends service life Comprehensive Improvements - Achieve full depth discharge of 100% Label Capacity - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered - Reliable, repeatable full depth cycling without system life cycle degradation - NMC Systems can be fully discharged safely without impact on system performance - Multiple times usable capacity of Lead Acid
