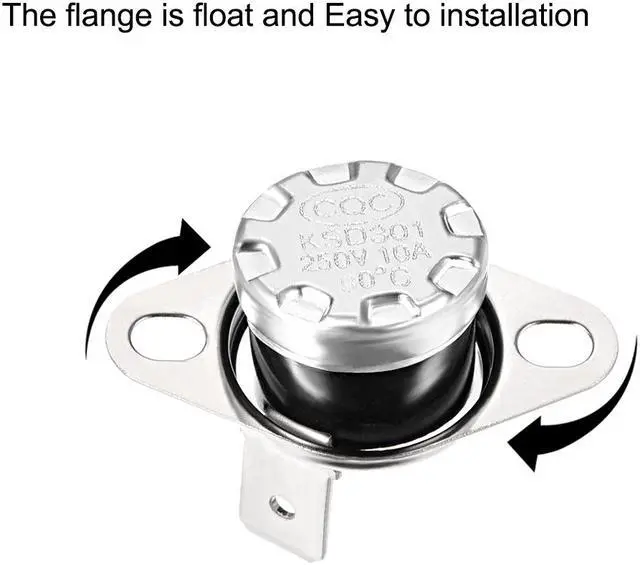

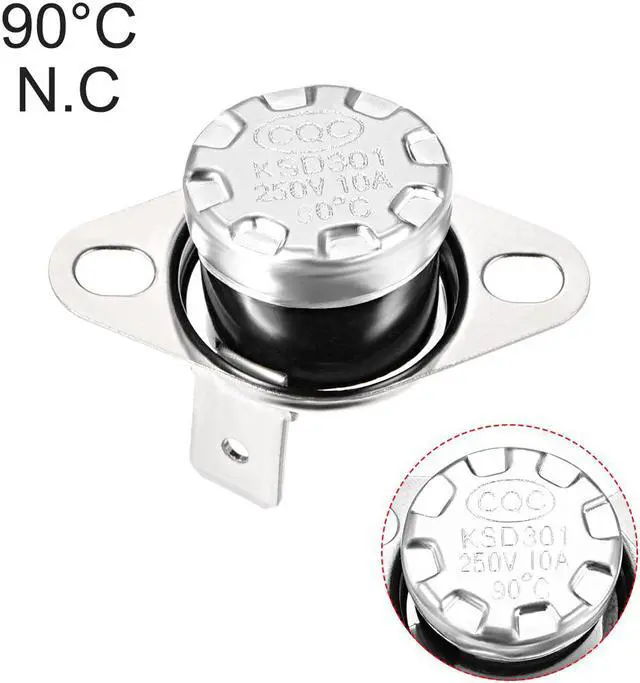

KSD301 Thermostat, Temperature Control Switch 90°C 10A Normally Closed N.C 2pcs
- Type: 2pcs KSD301 90 degrees Celsius Thermal Control Switch 250V 10A NC (Normal Close).
+
+
Overview
Specs
Reviews
Specification:
Product Name : Temperature Control Switch
Model: KSD301
Action Temperature: 90°C
Action Type: N.C (Normal Close)
Rated Voltage/Current : 250V/10A
Pin Type : Right Angle

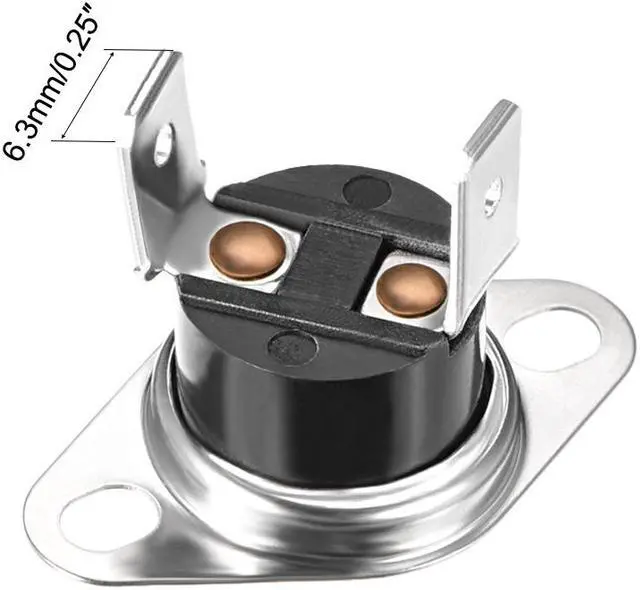

Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
KEY_TAB
Package Content :
2 x Temperature Control Switch
KEY_TAB
Description :
1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4.Function: It is closed until the temperature reaches 90 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.
5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
