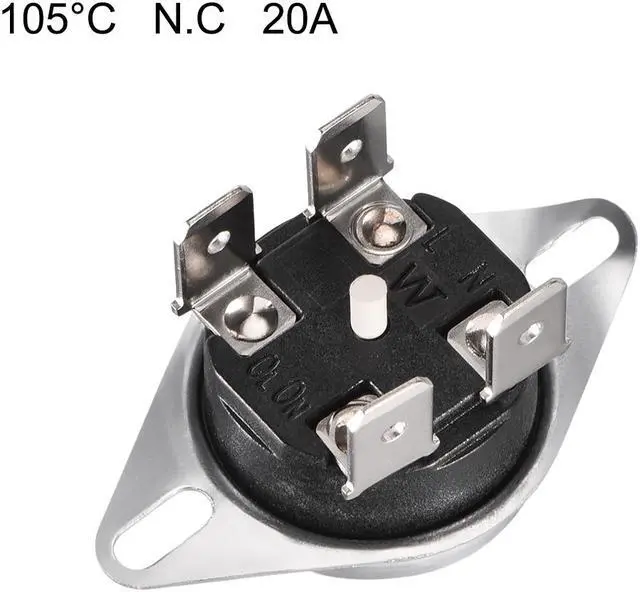

KSD302T Thermostat, Temperature Control Switch 105°C 20A Manual Reset N.C 6.3mm Pin

Specification:

Product Name : Temperature Control Switch

Model: KSD302T

Action Temperature: 105°C

Action Type: N.C (Normal Close)

Rated Voltage/Current : 250V/20A

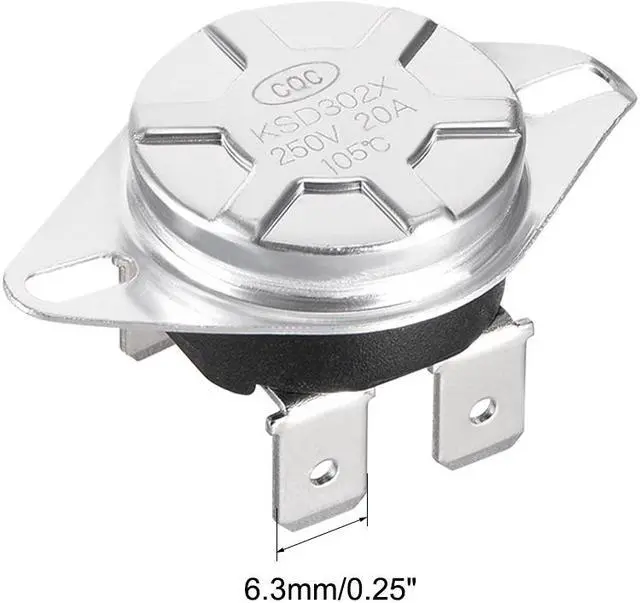

Pin Width : 6.3mm/0.25inch

Reset Type : Manual

KEY_TAB

Package Content :

1 x Temperature Control Switch, 4 x 6.3mm Copper terminal, 4 x Protective Sleeve

KEY_TAB

Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, manual reset, low cost, large capacity, minute current thermostats.

4.Function: It is closed until the temperature reaches 105 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.

5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
