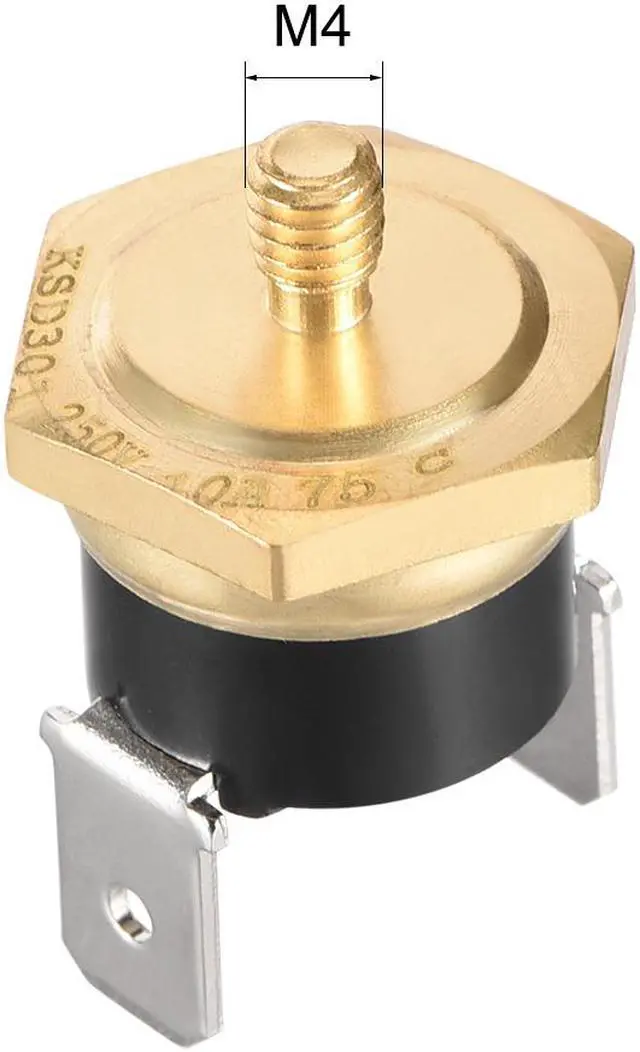

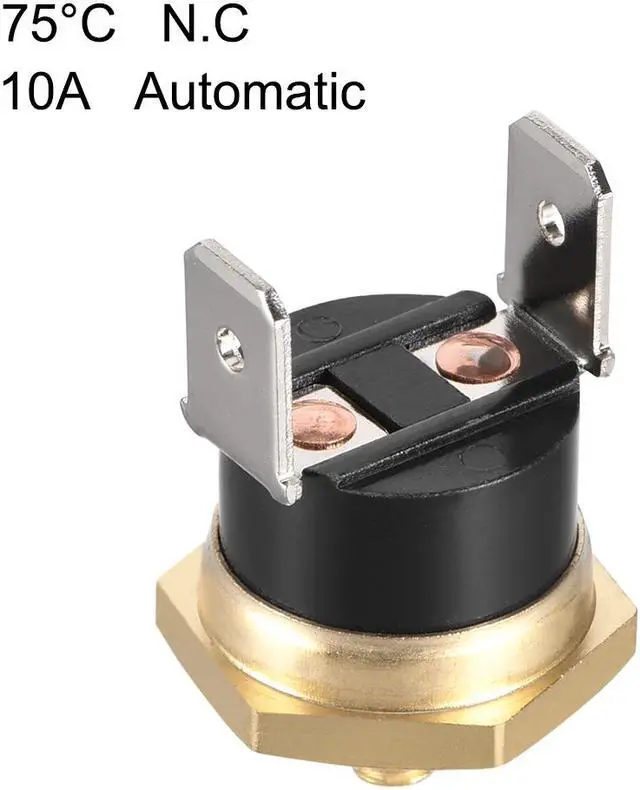

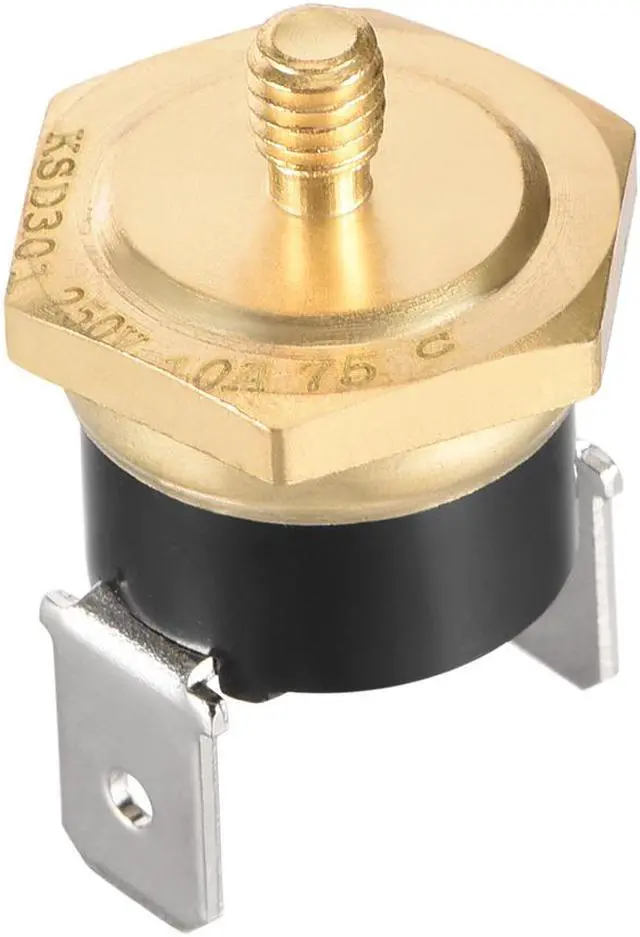

KSD301 Thermostat, Temperature Control Switch 75°C Copper M4 Normally Closed N.C 10A
- Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
+
+
Overview
Specs
Reviews
Specification:
Product Name : KSD301 Thermostat
Model: KSD301
Action Temperature: 75°C
Power : 250V 10A
Action Type: N.C (Normal Close)
Thread Dia : M4
Reset Tyoe : Automatic
Material : Copper, Bakelite
Package Content :
1 x KSD301 Thermostat
Description :
1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.Feature: Contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4.Function: It is closed until the temperature reaches 75 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.
5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
